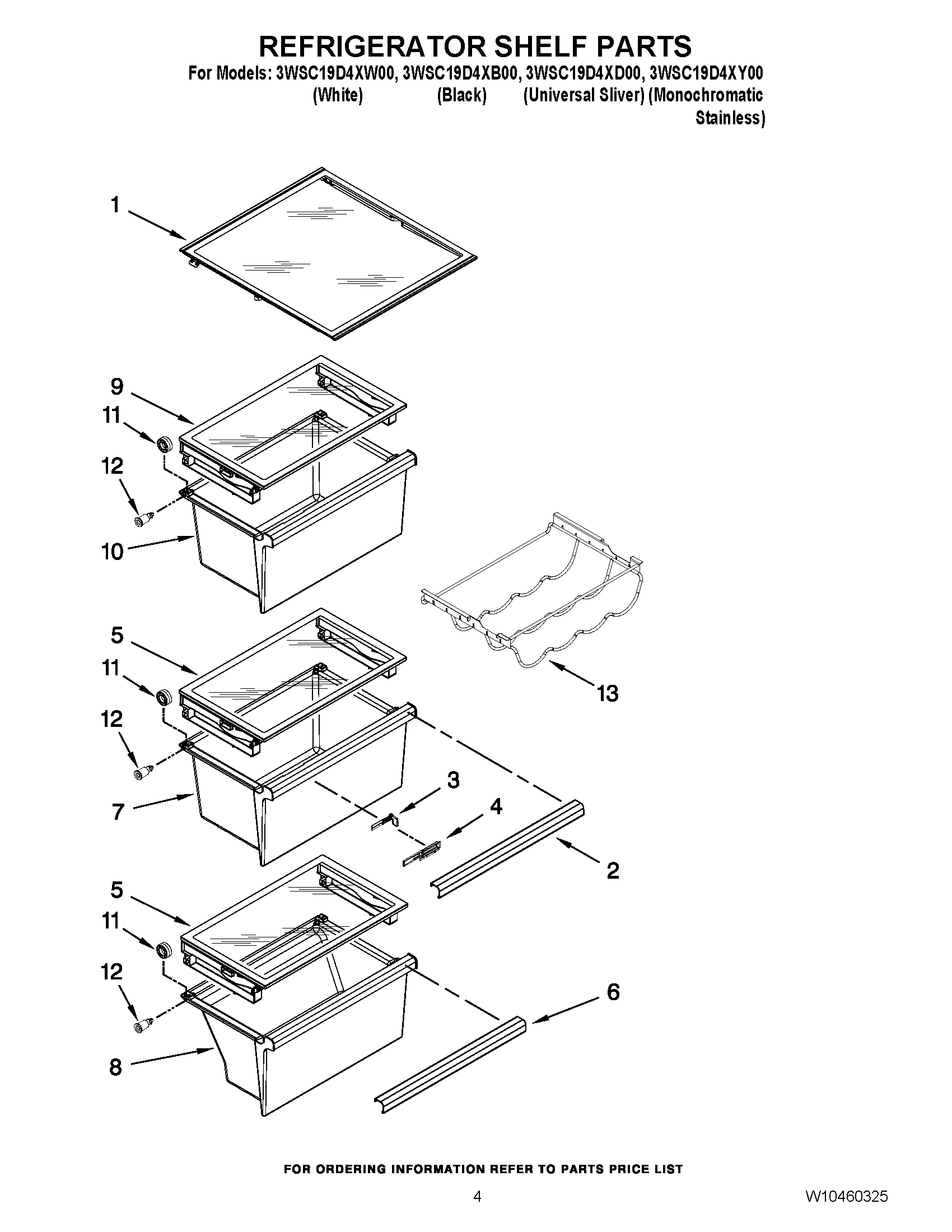

3WSC19D4XW00 03 – REFRIGERATOR SHELF PARTS

3WSC19D4XW00 03 – REFRIGERATOR SHELF PARTS

Written by

in

3WSC19D4XW00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1WPW10269156 Whirlpool Refrigerator Glass Shelf
2TRIM, HANDLE
3W11746089 Whirlpool Slide
4WPW10282880 Whirlpool Refrigerator Control Body
5COVER, ASSY
6W10309636 Whirlpool Refrigerator Trim Pan
7WPW10296843 Whirlpool Crisper Pan
8MEAT PAN (ALSO ORDER 6)
9SHELF, SNACK PAN
10SNACK PAN
11W11164152 Whirlpool Drawer Roller
12WPW10257246 Whirlpool Refrigerator Axle
13W10257377 Whirlpool Wine Rack
