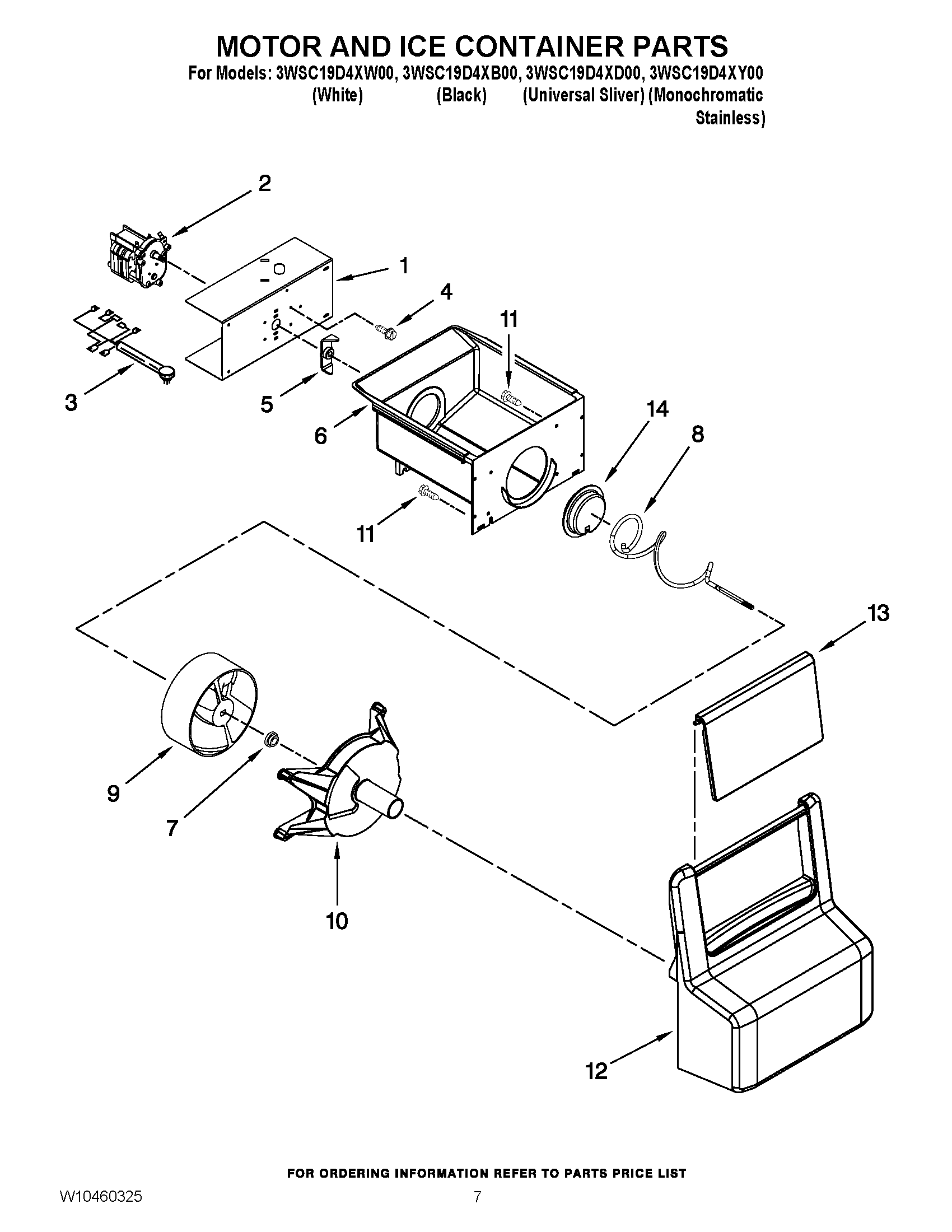

3WSC19D4XW00 05 – MOTOR AND ICE CONTAINER PARTS

3WSC19D4XW00 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

3WSC19D4XW00 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1BRACKET, MOTOR
2WP2321276 Whirlpool Motor
3WIRE ASSEMBLY, ICE DESPENSER
4WP489399 Whirlpool Refrigerator Screw
5COUPLING AUGER MOTOR
6W10294543 Whirlpool Refrigerator Container
7W10189661 Whirlpool Refrigerator Spacer
8AUGER
94388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
10FLOATING BAFFLE
11WP488787 Whirlpool Refrigerator Screw
12FRONT COVER, ICE CONTAINER
13W11661892 Whirlpool Refrigerator Ice Door
14W10749708 Whirlpool Refrigerator Coupling
100WPW10323143 Whirlpool Ice Container
