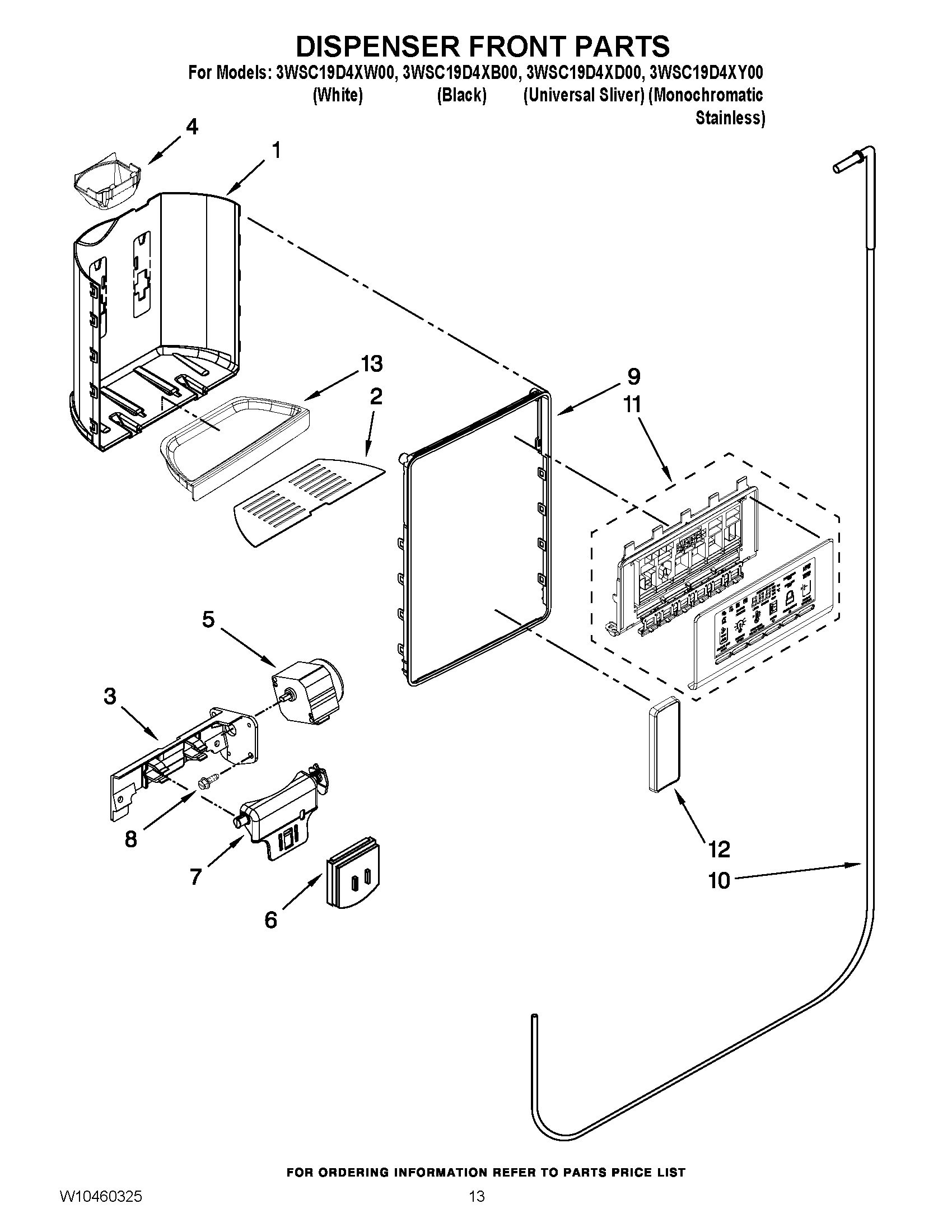

3WSC19D4XW00 08 – DISPENSER FRONT PARTS

3WSC19D4XW00 08 – DISPENSER FRONT PARTS

Written by

in

3WSC19D4XW00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2GRATE, DRIP TRAY (WHITE)
2GRATE, DRIP TRAY
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10781989 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10276257 Whirlpool Dispenser Trim
9TRIM RING (WHITE)
10WPW10386778 Whirlpool Refrigerator Water Tube
11ELECTRONIC CONTROL ASSY
12WPW10370592 Whirlpool Refrigerator Pad
12WPW10370593 Whirlpool Refrigerator Pad
13TRAY, HOUSING (BLACK)
13TRAY, HOUSING (WHITE)
