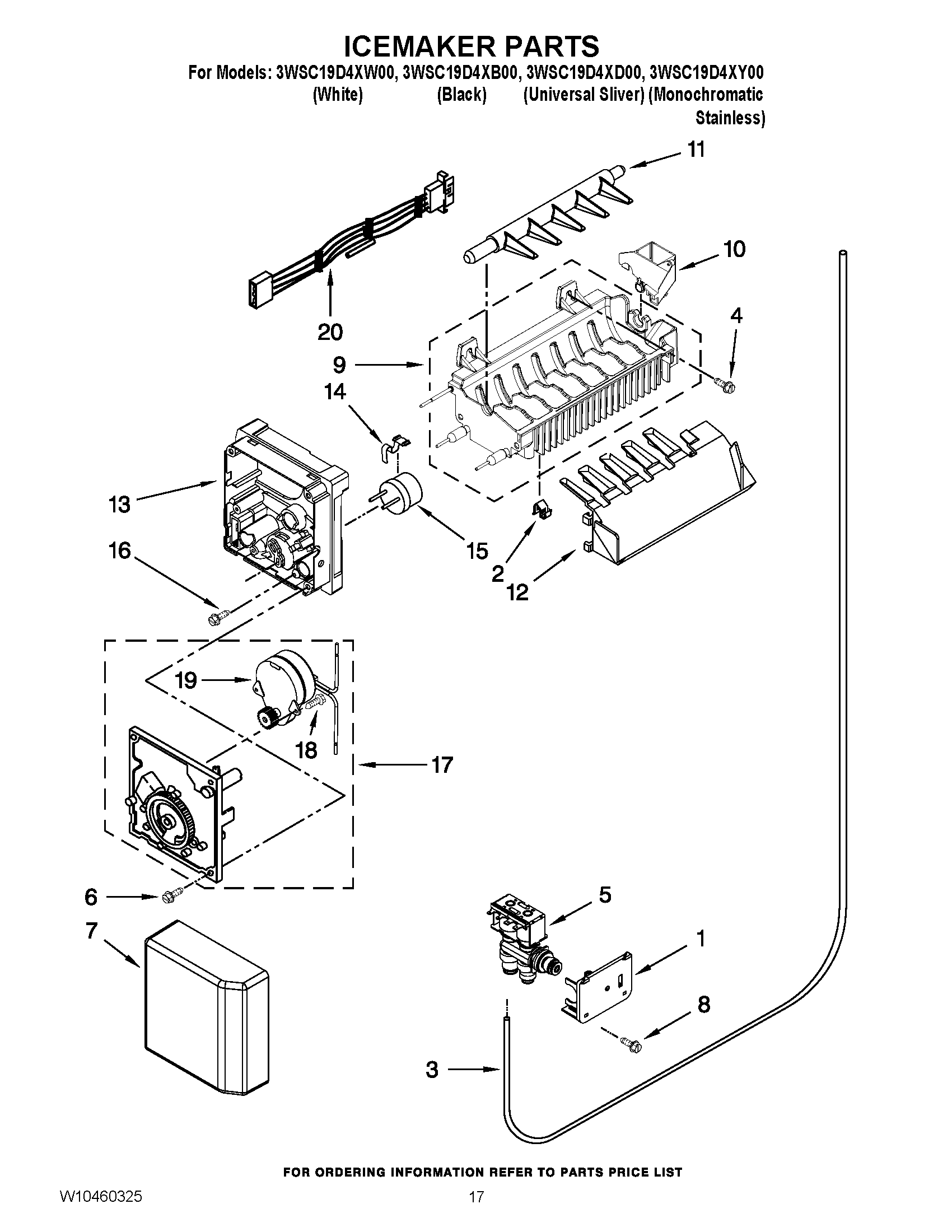

3WSC19D4XY00 10 – ICEMAKER PARTS

Products

Position	Product
1	W10847867 Whirlpool Refrigerator Bracket
2	WP628379 Whirlpool Refrigerator Clip
3	W10823511 Whirlpool Refrigerator Water Tube
5	WPW10258563 Whirlpool Inlet Valve
7	COVER
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	MOLD & HEATER ASSEMBLY (ALSO ORDER 542638
10	W10122561 Whirlpool Refrigerator Cup Fill
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	WPW10122563 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	628532 Whirlpool Refrigerator Thermostat
16	W10001240 Whirlpool Refrigerator Screw
17	W10190933 Whirlpool Refrigerator Motor Assembly
18	Screw
19	CABINET (NOT A SERVICEABLE PART)
20	WIRE HARNESS
100	WPW10122558 Whirlpool Ice Maker
