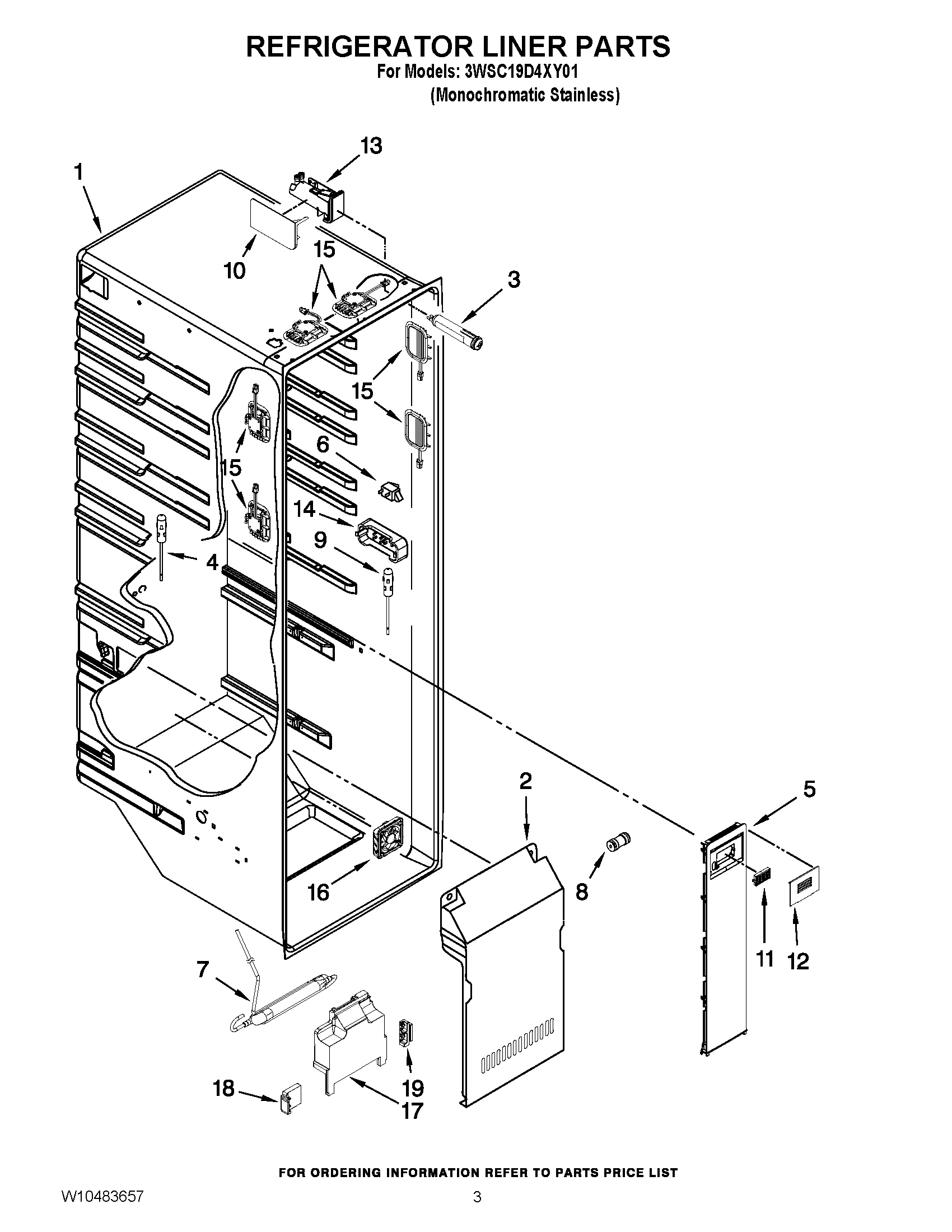

3WSC19D4XY01 02 – REFRIGERATOR LINER PARTS

3WSC19D4XY01 02 – REFRIGERATOR LINER PARTS

Written by

in

3WSC19D4XY01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10387382 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
5COVER, AIR TOWER
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10W10300484 Whirlpool Refrigerator Filter Cover
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12AIR FILTER COVER
13WPW10238123 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W10451901 Whirlpool Refrigerator Evaporator Motor
17W11105244 Whirlpool Refrigerator Scroll Fan
18W11028224 Whirlpool Refrigerator Support
19W10837626 Whirlpool Refrigerator Support
