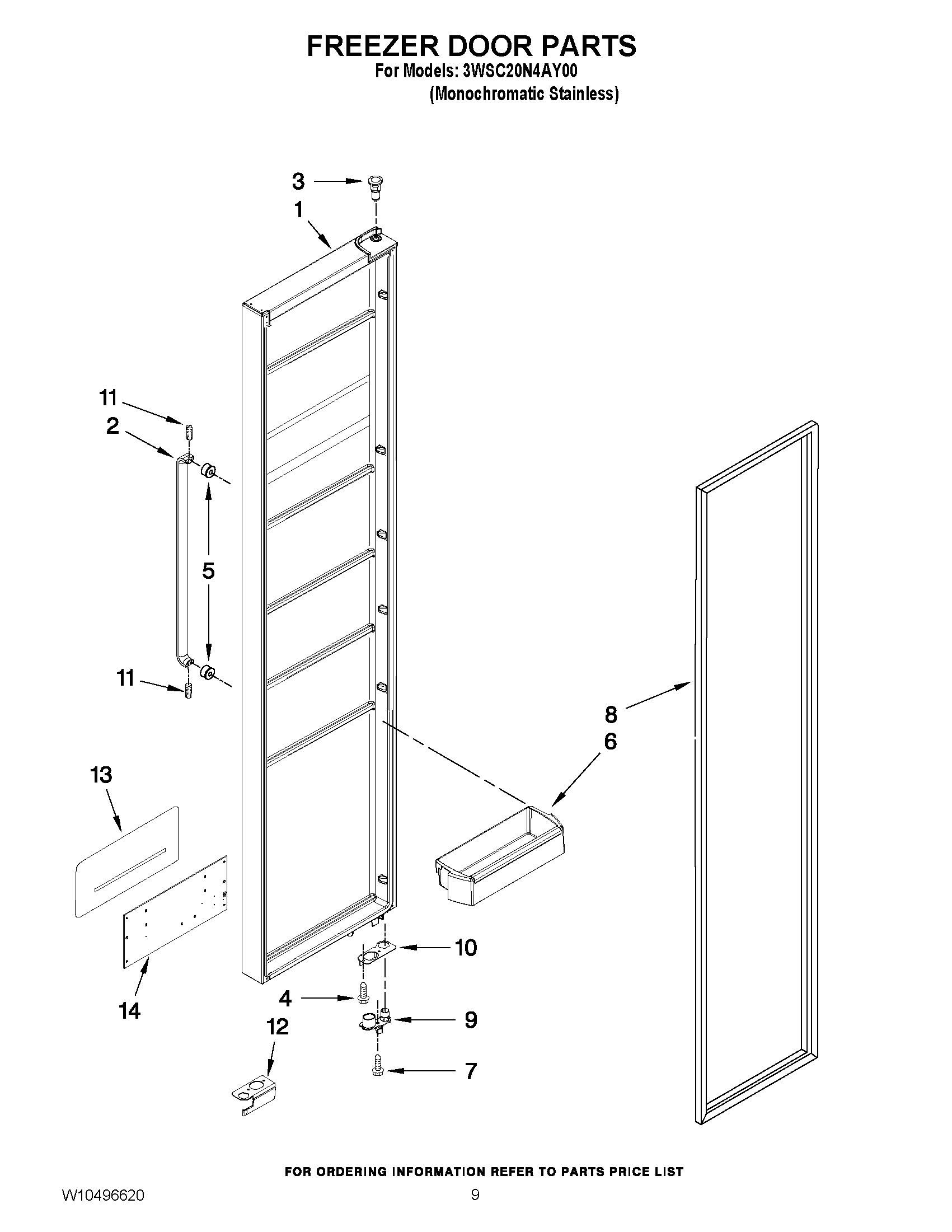

3WSC20N4AY00 06 – FREEZER DOOR PARTS

3WSC20N4AY00 06 – FREEZER DOOR PARTS

Written by

in

3WSC20N4AY00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
2HANDLE
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6WPW10296857 Whirlpool Refrigerator Cantilever Bin
7SCREW
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9WPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12WPW10632062 Whirlpool Refrigerator Wire Cover
13FRONT COVER, CONTROL
14WPW10291877-includeCORE Whirlpool WPW10291877 Refrigerator Electronic Control Board + Core
