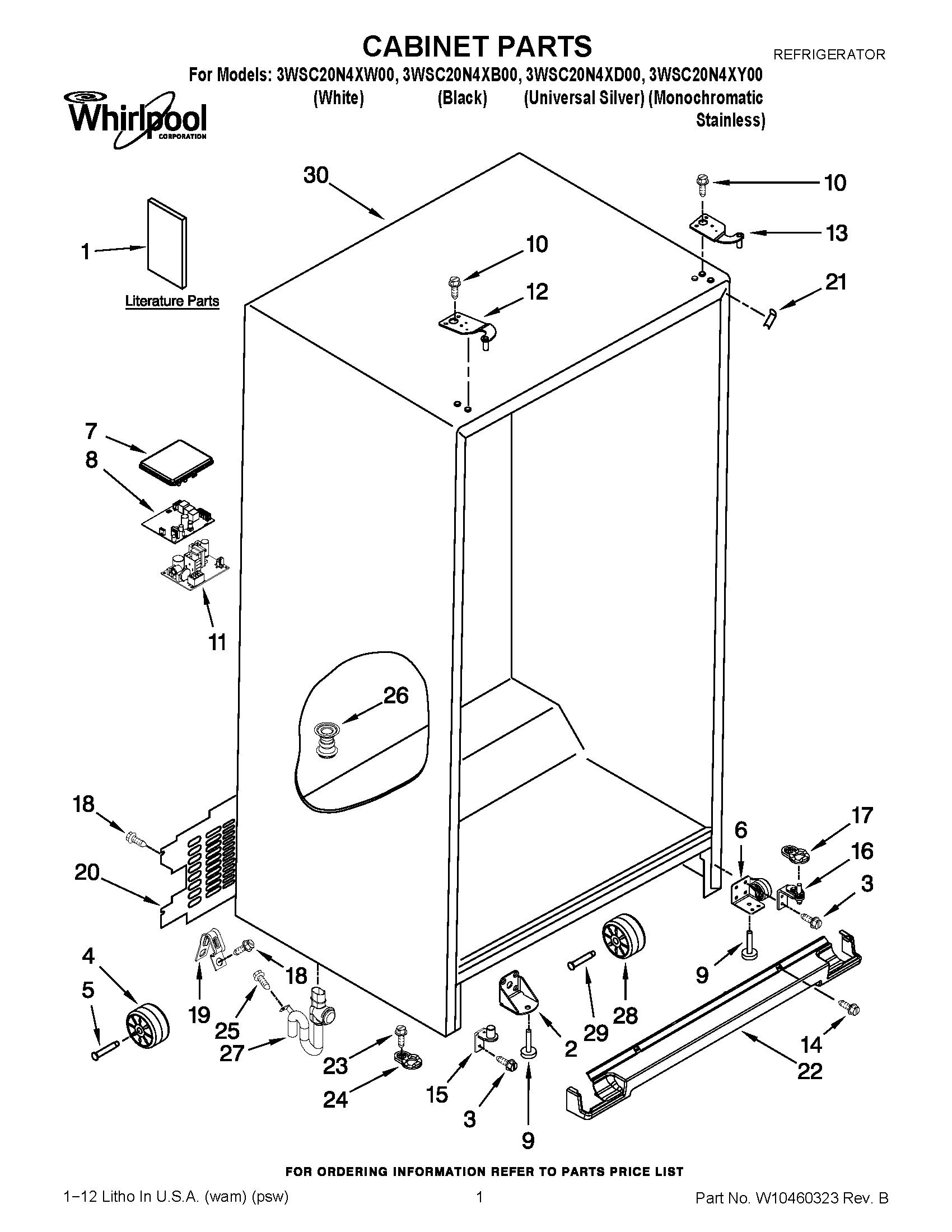

3WSC20N4XB00 01 – CABINET PARTS

3WSC20N4XB00 01 – CABINET PARTS

Written by

in

3WSC20N4XB00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11266052 Whirlpool Refrigerator Bracket
7	LID, HV BOX
8	WPW10226427 Whirlpool Refrigerator Electronic Control Board
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
10	WPW10308750 Whirlpool Refrigerator Screw
11	WPW10235472-includeCORE Whirlpool WPW10235472 Refrigerator Electronic Control Board + Core
12	W11590581 Whirlpool Refrigerator Door Hinge
12	W10901051 Whirlpool Refrigerator Door Hinge
12	W10901052 Whirlpool Refrigerator Door Hinge
13	W11573587 Whirlpool Refrigerator Door Hinge
13	W11568758 Whirlpool Top Hinge
13	HINGE-DOOR
14	WPW10308489 Whirlpool Refrigerator Screw
14	WPW10142283 Whirlpool Refrigerator Screw
14	WP98008545 Whirlpool Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
15	W10249941 Whirlpool Refrigerator Door Hinge
15	W11293373 Whirlpool Refrigerator Door Hinge
16	BOTTOM HINGE (RC) (BLACK)
16	W10500004 Whirlpool Refrigerator Door Hinge
17	W10500001 Whirlpool Refrigerator Door Hinge
17	W10500000 Whirlpool Refrigerator Door Hinge
18	SCREW
19	549193 Whirlpool Refrigerator Power Clamp
20	COVER, UNIT
21	12587703W Whirlpool Refrigerator Cover
21	67003485 Whirlpool Refrigerator Corner Cover (Black)
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713153 Whirlpool Refrigerator Grille
22	WPW10713160 Whirlpool Refrigerator Grille
22	WPW10713158 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
24	W10876198 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	W10370680 Whirlpool Refrigerator Fitting
27	W11519143 Whirlpool Refrigerator Extension
28	WPW10475495 Whirlpool Roller Assembly
29	WPW10285005 Whirlpool Refrigerator Rivet
30	CABINET (NOT A SERVICEABLE PART)
