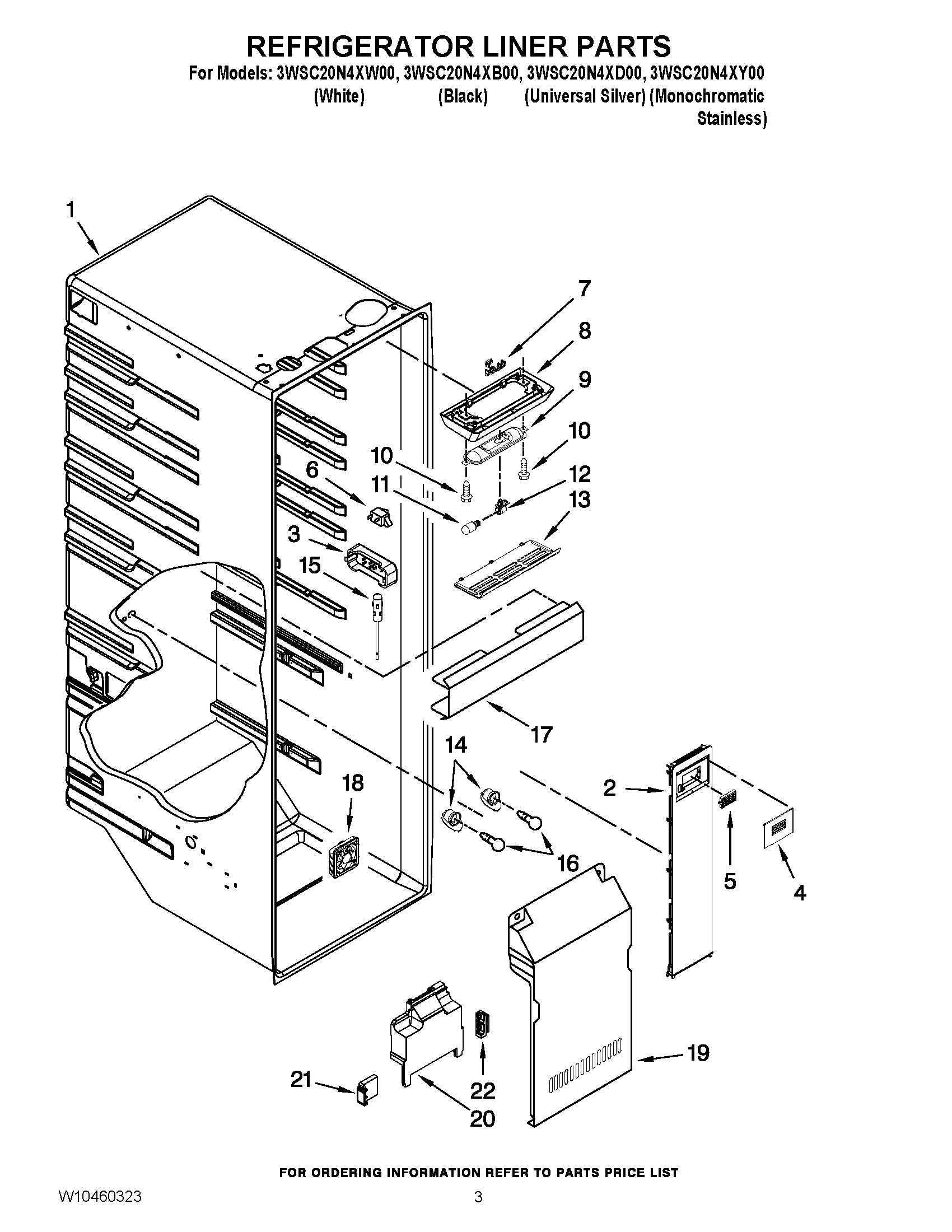

3WSC20N4XB00 02 – REFRIGERATOR LINER PARTS

3WSC20N4XB00 02 – REFRIGERATOR LINER PARTS

Written by

in

3WSC20N4XB00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER, AIR TOWER
3WPW10425252 Whirlpool Refrigerator Cover
4AIR FILTER COVER
5W10311524 Whirlpool FreshFlow Refrigerator Air Filter
6W11384469 Whirlpool Door Switch
7WIRE ASSY, TOP LIGHT
8W10280178 Whirlpool Refrigerator Trim
92223680 Whirlpool Refrigerator Shield
10WP3400906 Whirlpool Refrigerator Screw
11W11618980 Whirlpool Light Bulb
12W11661565 Whirlpool Refrigerator Socket
13W10280420 Whirlpool Refrigerator Light Lens
14W11447232 Whirlpool Refrigerator Socket
15THERMISTOR
16WP67002552 Whirlpool Refrigerator Light Bulb
17LENS, LIGHT
18W10451901 Whirlpool Refrigerator Evaporator Motor
19WPW10387382 Whirlpool Refrigerator Evaporator Cover
20W11105244 Whirlpool Refrigerator Scroll Fan
21W11028224 Whirlpool Refrigerator Support
22W10837626 Whirlpool Refrigerator Support
