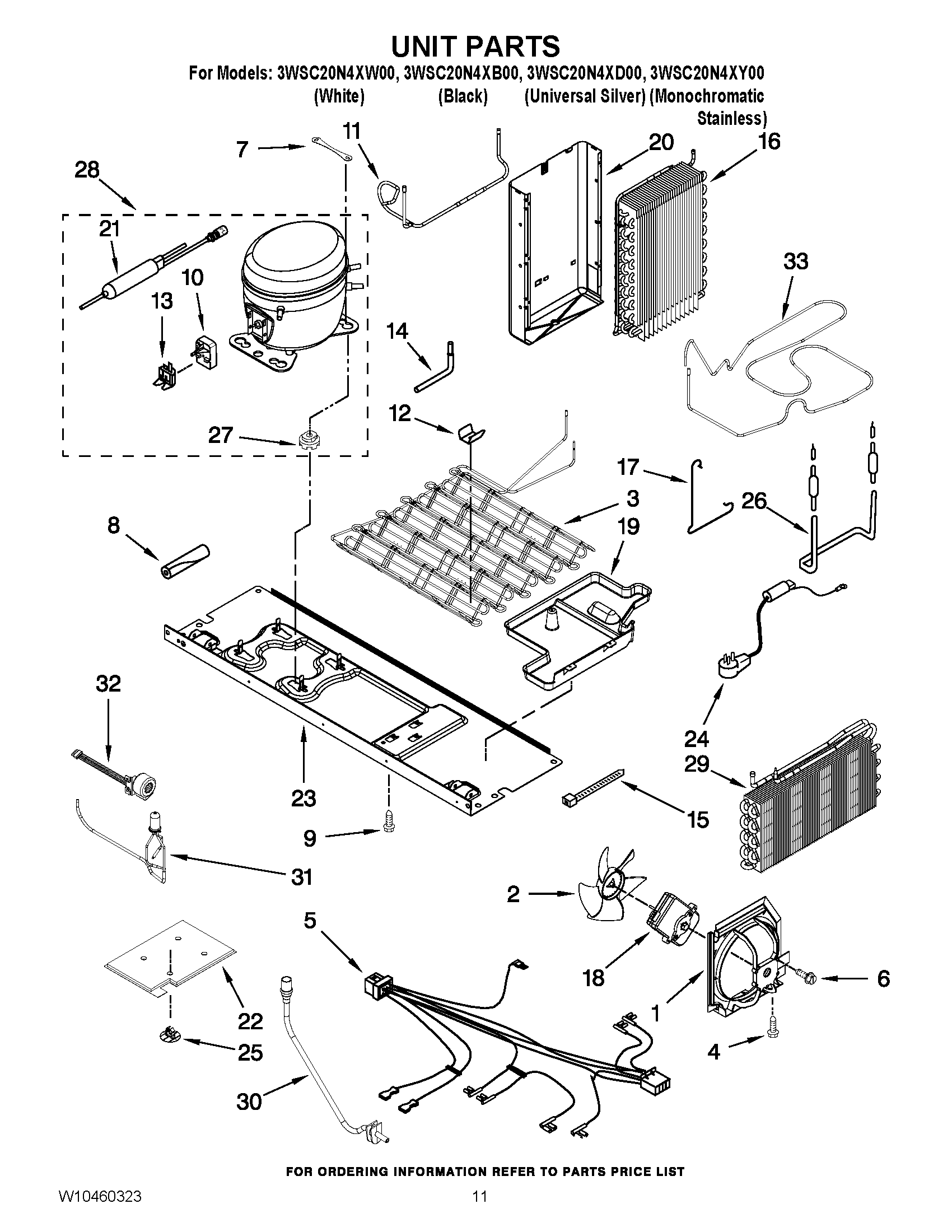

3WSC20N4XB00 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10251467 Whirlpool Refrigerator Air Baffle
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	CLIP
6	WPW10171469 Whirlpool Refrigerator Screw
7	W10236396 Whirlpool Refrigerator Strap
8	SLEEVE
9	W11544659 Whirlpool Refrigerator Screw
10	W10364559 Whirlpool Start Relay
11	WPW10223328 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	OVERLOAD (PRODUCTION)
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	W10837641 Whirlpool Refrigerator Condenser Motor
19	WPW10369752 Whirlpool Evaporator Tray
20	HEAT SHIELD
21	WPW10143759 Whirlpool Dryer Filter
22	UNIT COVER, BOTTOM
23	W10277704 Whirlpool Refrigerator Support
24	POWER CORD
25	W10296661 Whirlpool Refrigerator Clip
26	W10837285 Whirlpool Refrigerator Heater
27	WPW10169124 Whirlpool Refrigerator Grommet
28	COMPRESSOR (INCLUDES ITEMS 10, 13, 21, & 27) (ALSO ORDER 876765 TUBE KIT)
29	WPW10643261 Whirlpool Refrigerator Evaporator
30	W11409190 Whirlpool Refrigerator Drain Tube
31	W11590197 Whirlpool Refrigerator Valve
32	WPW10364560 Whirlpool Refrigerator Solenoid
33	TUBE-HEAT LOOP PRECOOLER
