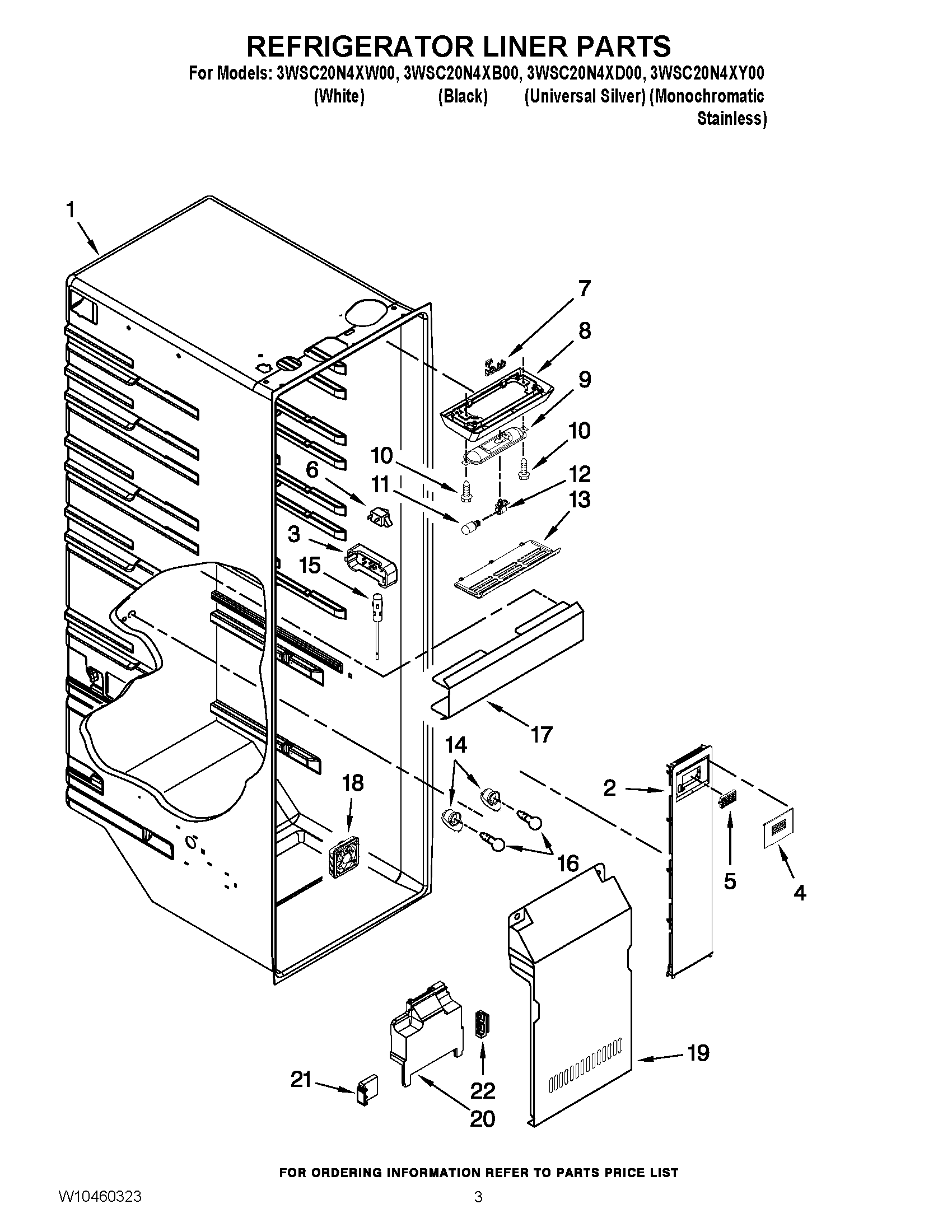

3WSC20N4XW00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	COVER, AIR TOWER
3	WPW10425252 Whirlpool Refrigerator Cover
4	AIR FILTER COVER
5	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
6	W11384469 Whirlpool Door Switch
7	WIRE ASSY, TOP LIGHT
8	W10280178 Whirlpool Refrigerator Trim
9	2223680 Whirlpool Refrigerator Shield
10	WP3400906 Whirlpool Refrigerator Screw
11	W11618980 Whirlpool Light Bulb
12	W11661565 Whirlpool Refrigerator Socket
13	W10280420 Whirlpool Refrigerator Light Lens
14	W11447232 Whirlpool Refrigerator Socket
15	THERMISTOR
16	WP67002552 Whirlpool Refrigerator Light Bulb
17	LENS, LIGHT
18	W10451901 Whirlpool Refrigerator Evaporator Motor
19	WPW10387382 Whirlpool Refrigerator Evaporator Cover
20	W11105244 Whirlpool Refrigerator Scroll Fan
21	W11028224 Whirlpool Refrigerator Support
22	W10837626 Whirlpool Refrigerator Support
