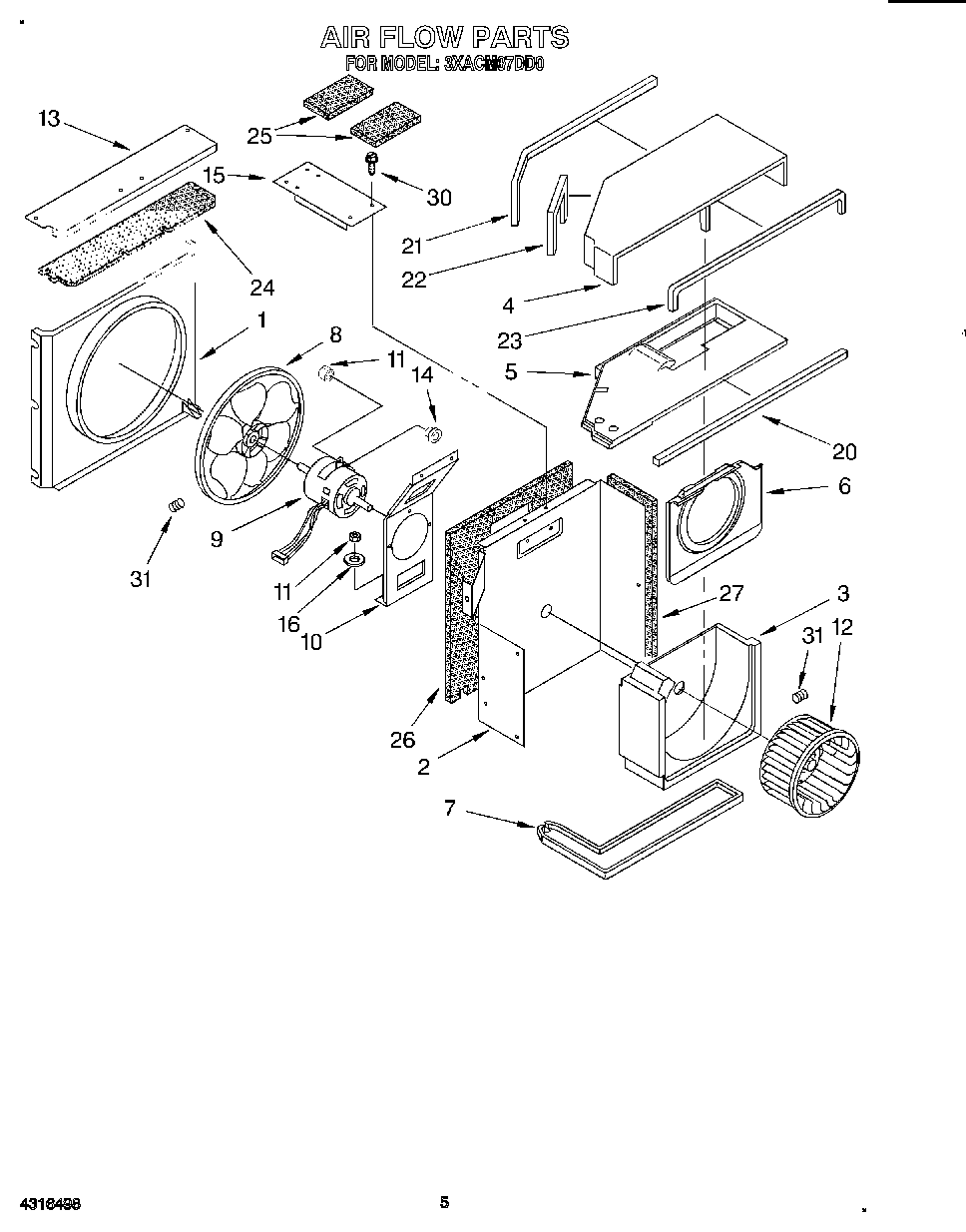

3XACM07DD0 03 – AIR FLOW

Products

Position	Product
1	Shroud, Condenser
2	Wall, Dividing
3	Scroll, Air Housing
4	Hood, Air Housing
5	Cover, Evaporator Top
6	Orifice, Air Housing
7	Pan, Drain
8	Blade, Fan
9	Motor, Fan
10	Bracket, Motor Mount
11	Nut, Hex 5MM
12	Wheel, Blower
13	Cover, Condenser Top
14	Grommet, Fan Motor
15	Support, Unit
16	Washer, Bonded
21	WP854334 Whirlpool Air Conditioner Sealing Strip
24	Seal, Condenser Top Cover
25	Seal, Anti-Rub
26	Insulation (Back, Dividing Wall)
27	Insulation (Side, Dividing Wall)
30	WP1163283 Whirlpool Air Conditioner Screw
