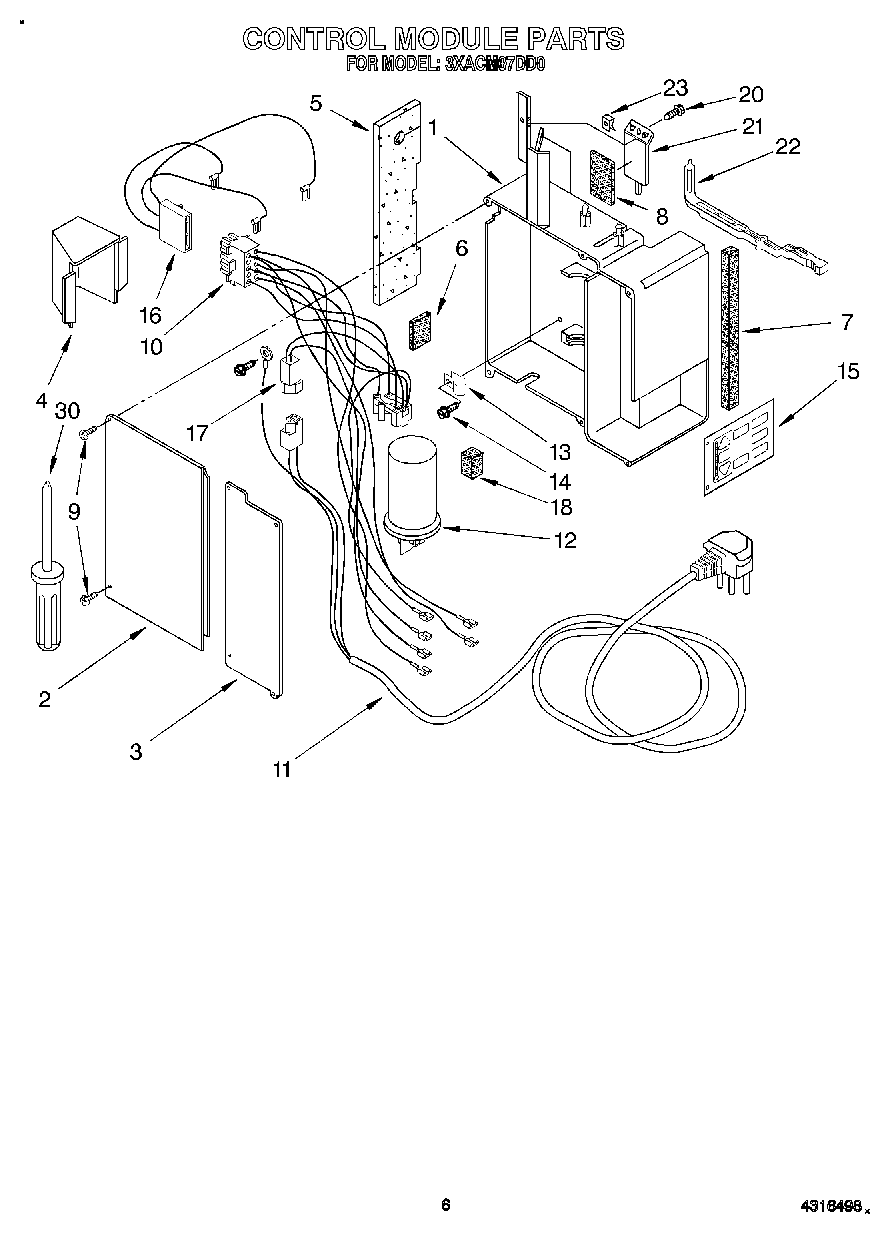

3XACM07DD0 04 – CONTROL MODULEadmin2025-04-26T12:25:51+00:003XACM07DD0 04 – CONTROL MODULE
Products
| Position | Product |
|---|
| 1 | Housing, Controls (Not Serviceable) |
| 2 | Lid, Capacitor |
| 3 | Lid, Controls |
| 4 | Shield, Rain |
| 5 | Seal, Tube |
| 6 | Seal |
| 7 | Seal |
| 8 | Seal, Door |
| 9 | Screw (Tamper- Resistant) |
| 10 | Harness, Wiring 10 Pin (Not Serviceable) |
| 11 | Cable, Appliance |
| 12 | Capacitor |
| 13 | WPL 1180504 |
| 14 | Screw No.8 |
| 15 | Overlay (English) |
| 16 | Harness, Compressor |
| 17 | Harness, Appliance Cable (Not Serviceable) |
| 18 | Spacer |
| 20 | 489392 Whirlpool Refrigerator Screw |
| 21 | Door, Exhaust |
| 22 | Linkage, Exhaust Door |
| 23 | Clip, Cabinet Front (2) |
| 30 | Control Box (Complete) |
| 30 | Screwdriver (For Tamper Proof Screw) |
