3XACM07XD0 01 – UNIT, LITERATURE

3XACM07XD0 01 – UNIT, LITERATURE

Written by

in

3XACM07XD0 01 – UNIT, LITERATURE

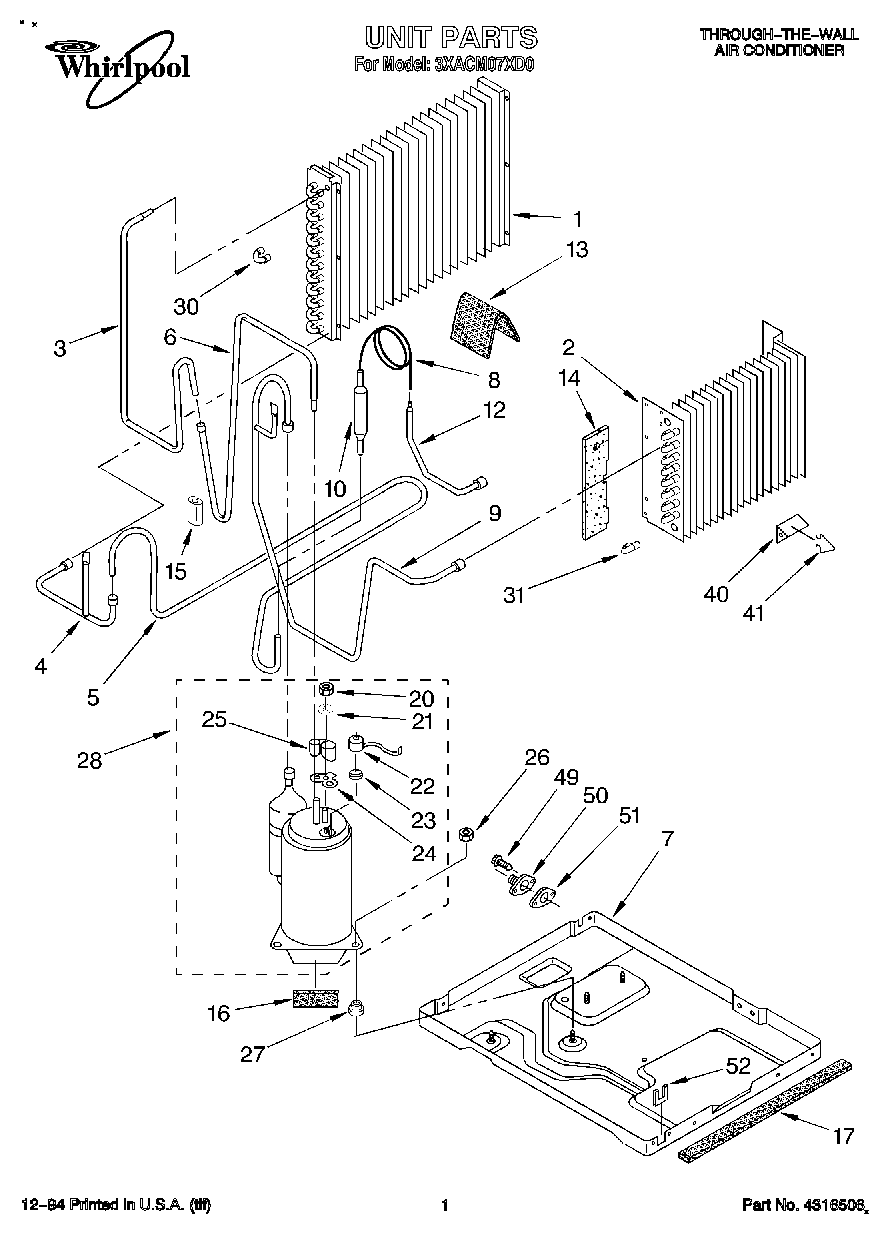

Products

PositionProduct
1Condenser
2Evaporator
3Tube, Discharge (Condenser)
4Tube, Process
5Tube, Wet Loop
6Tube, Discharge (Compressor)
7Base
8Tube, Restrictor
9Tube, Suction
10Strainer
12Tube, Evaporator Inlet
13WPL 1162650
14Seal, Tube
15WPL 1162344
16Seal, Anti-Rub
17Seal
20WP950027 Whirlpool Mounting Nut
21Gasket, Nut
22Protector, Overload
23Spring, Overload
24WP950035 Whirlpool Cover Gasket
25WP950036 Whirlpool Cover Assembly
26Nut, 8MM
27Grommet
28Compressor
30Bend, Return Condenser (10)
31WP855199 Whirlpool Bend Return
40Anticipator
41Clip, Anticipator
49Screw No.8 x 1
50Drain Plug
51Gasket, Drain Plug
52Protector, Cord
52Owners Manual
52Wiring Diagram
