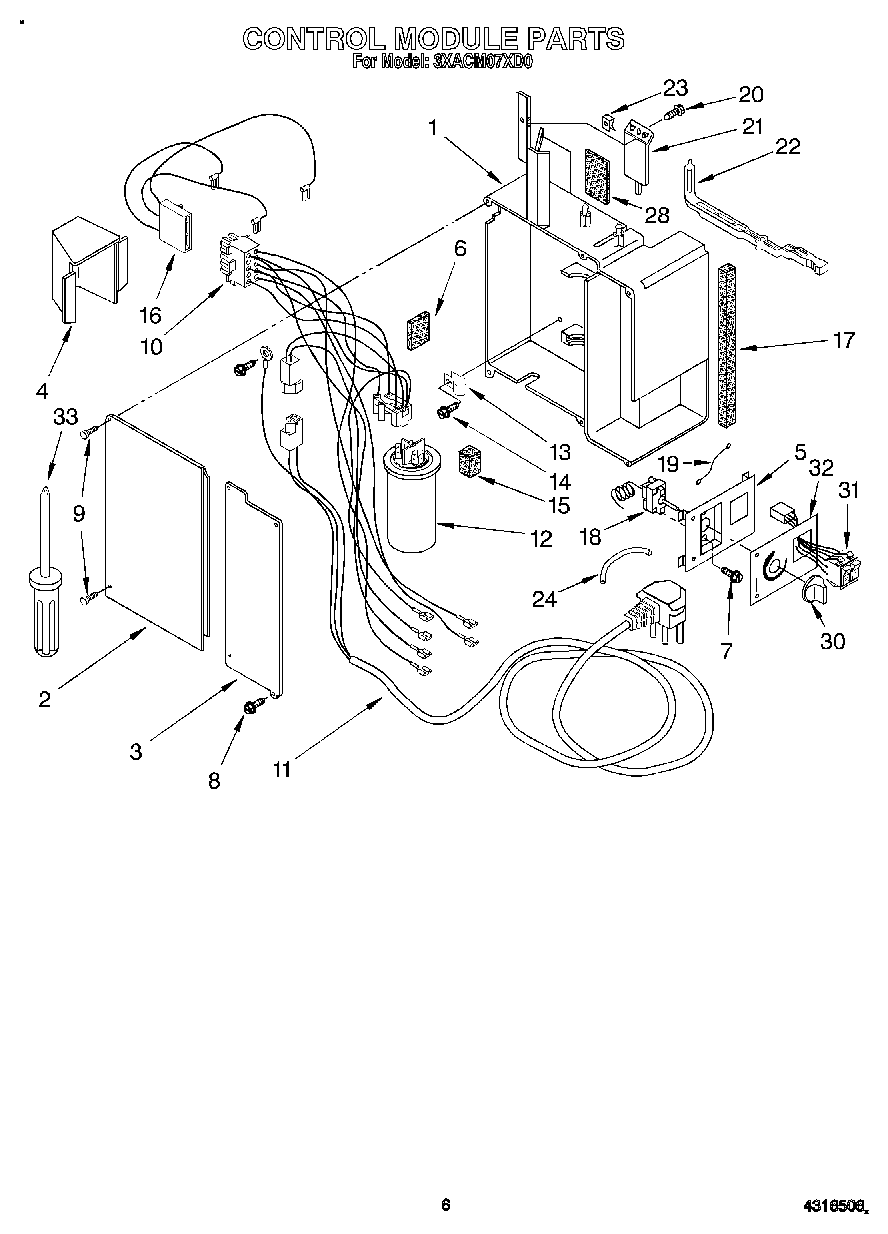

3XACM07XD0 04 – CONTROL MODULE

Products

Position	Product
1	Housing, Controls (Not Serviceable)
2	Lid, Capacitor
3	Lid, Controls
4	Shield, Rain
5	Panel, Control
6	Seal
7	Screw, 6-32 x .175
9	Screw (Tamper- Resistant)
10	Harness, Wiring 10 Pin (Not Serviceable)
11	Cable, Appliance
12	Capacitor
13	WPL 1180504
14	Screw No.8
15	Spacer
16	Harness, Compressor
17	Seal
18	Control, Temperature
19	Wire, Ground
20	489392 Whirlpool Refrigerator Screw
21	Door, Exhaust
22	Linkage, Exhaust Door
23	Clip, Cabinet Front (2)
24	Sleeve, Insulator
28	Seal, Door
30	Knob
31	Switch, Rocker
32	Escutcheon
33	Control Box (Complete)
33	Screwdriver (For Tamper Proof Screw)
