3XACM09DD0 01 – UNIT, LITERATURE

Products

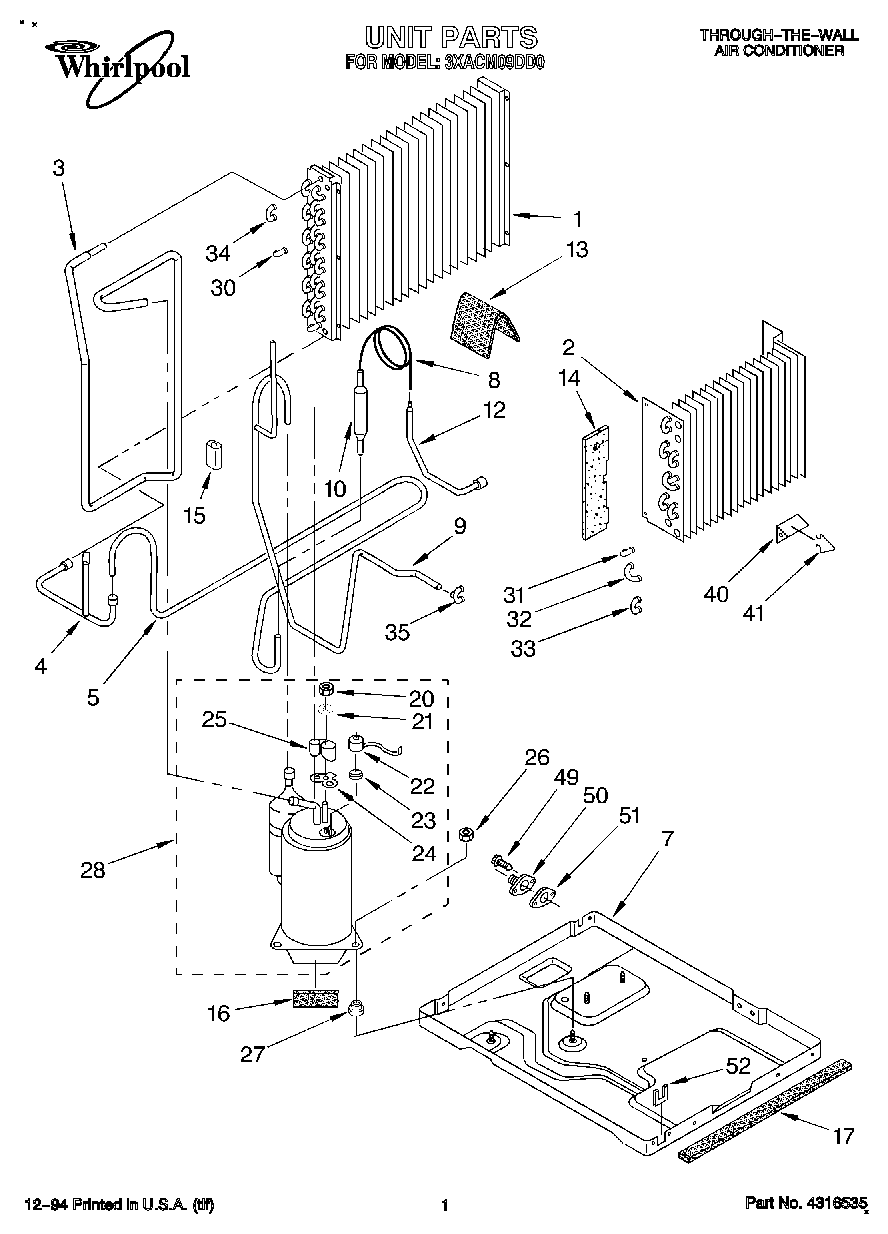

PositionProduct
1Condenser
2Evaporator
3Tube, Discharge
4Tube, Process
5Tube, Wet Loop
7Base
8Tube, Restrictor (2 Required)
9Tube, Suction (Includes No. 35)
10Strainer
12Tube, Evap. Inlet (Row 2)
12Tube, Evaporator Inlet (Row 1)
13WPL 1162650
14Seal, Tube
15Dampener, T
16Seal, Anti-Rub
17Seal
20WP950027 Whirlpool Mounting Nut
21Gasket, Nut
22Protector, Overload
23Spring, Overload
24WP950035 Whirlpool Cover Gasket
25WP950036 Whirlpool Cover Assembly
26Nut, 8MM
27WP950021 Whirlpool Grommet
28Compressor
30Bend, Return Condenser (10)
31WP855199 Whirlpool Bend Return
32Bend, Return
33Bend, Return Evaporator (11)
34Bend, Return Condenser (4)
35Return Bend 3-Way
40Anticipator
41Clip, Anticipator
49Screw No.8
50Drain Plug
51Gasket, Drain Plug
52Owners Manual/ Installation Instructions
52Protector, Cord
52Wiring Diagram
