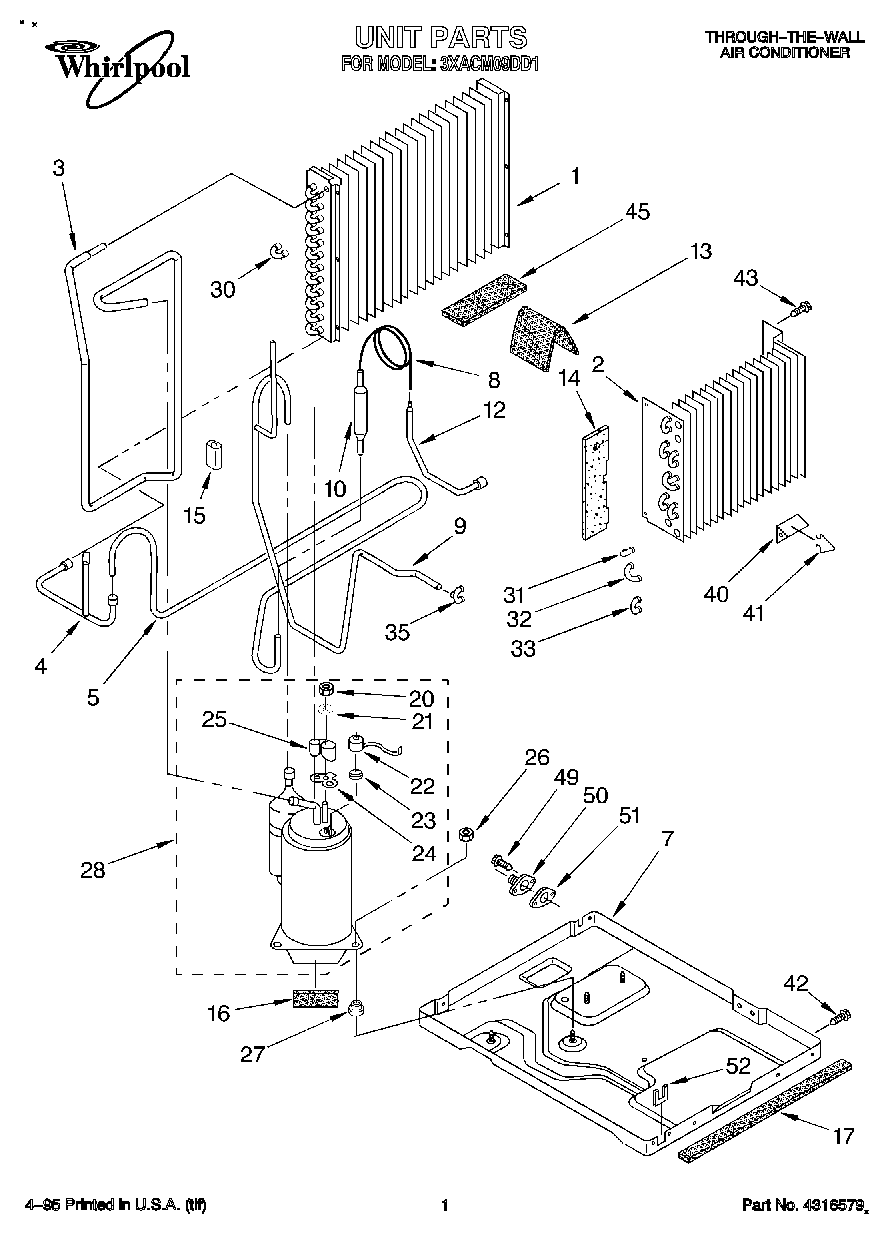

3XACM09DD1 01 – UNIT, LITERATURE

Products

Position	Product
	Deluxe Remote Owners Manual
	Wiring Diagram
	Owners Manual/Installation Instructions
1	Condenser
2	Evaporator
3	Tube, Discharge
4	Tube, Process
5	Tube, Wet Loop
7	Base
8	Tube, Restrictor (2 Required)
9	Tube, Suction (Includes No. 35)
10	Strainer
12	Tube, Evaporator Inlet (Row 1)
12	Tube, Evap. Inlet (Row 2)
13	WPL 1162650
14	Seal, Tube
15	WPL 1162344
16	Seal, Anti-Rub
17	Seal
20	WP950027 Whirlpool Mounting Nut
21	Gasket, Nut
22	Protector, Overload
23	Spring, Overload
24	WP950035 Whirlpool Cover Gasket
25	WP950036 Whirlpool Cover Assembly
26	Nut, 8MM
27	WP950021 Whirlpool Grommet
28	Compressor
30	Bend, Return Condenser (10)
31	WP855199 Whirlpool Bend Return
32	Bend, Return
33	Bend, Return Evaporator (11)
35	Bend, Return 3-Way
40	Anticipator
41	Clip, Anticipator
42	Screw
43	Screw, 8-18 x 3/8
45	Deflector, Water (Foam)
49	Screw No.8
50	Drain Plug
51	Gasket, Drain Plug
52	Protector, Cord
