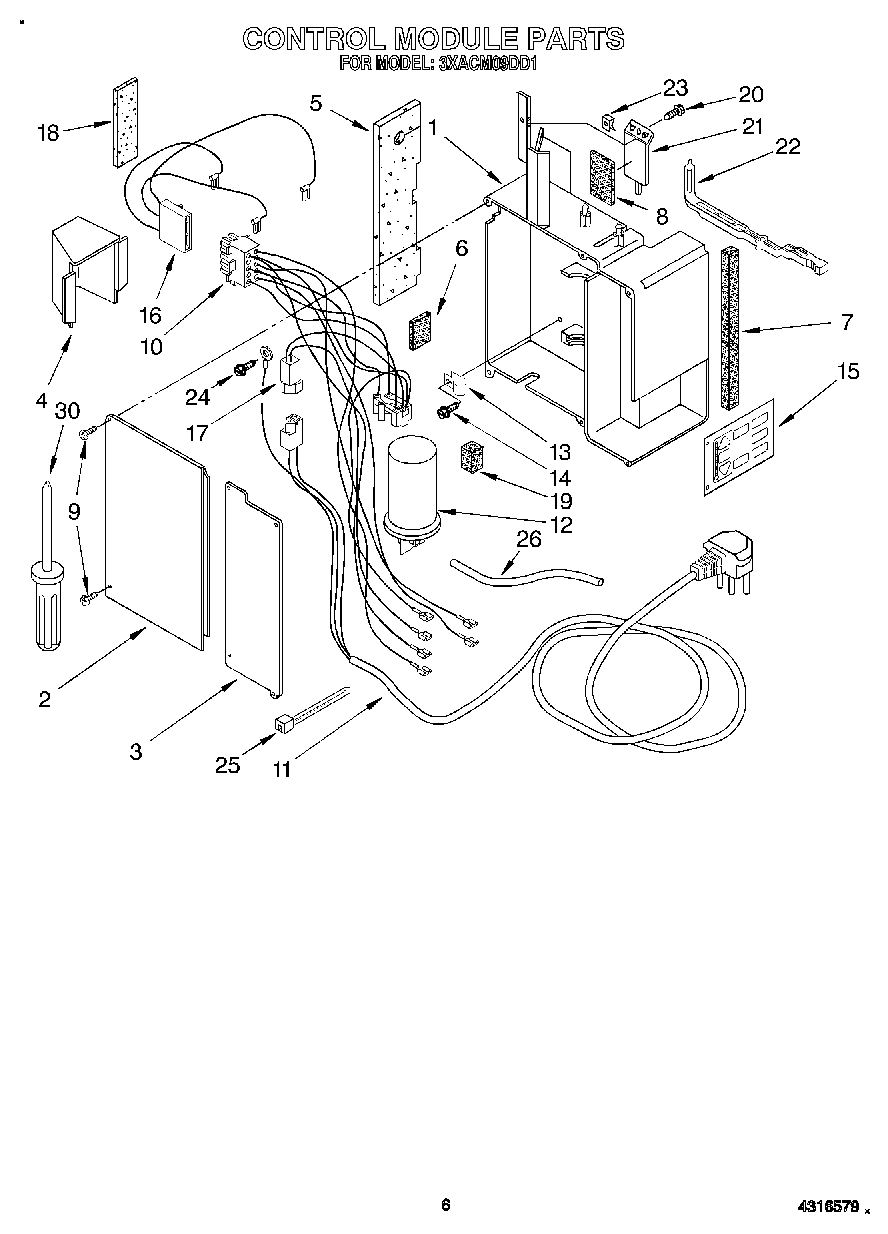

3XACM09DD1 04 – CONTROL MODULE

Products

Position	Product
1	Housing, Controls (Not Serviceable)
2	Lid, Capacitor
3	Lid, Controls
4	Shield, Rain
5	Seal, Tube
6	Seal
7	Seal
8	Seal, Door
9	Screw (Tamper- Resistant)
10	Harness, Wiring 10 Pin (Not Serviceable)
11	Cable, Appliance
12	Capacitor, Running
13	WPL 1180504
14	Screw No.8
15	Overlay (English)
16	Harness, Compressor
17	Harness, Appliance Cable (Not Serviceable)
18	Seal, Anti-Rub
19	Spacer
20	489392 Whirlpool Refrigerator Screw
21	Door, Exhaust
22	Linkage, Exhaust Door
23	Clip, Cabinet Front (2)
24	Screw
25	WPW10339879 Whirlpool Wire Tie
26	Sleeve, Insulating
30	Control Box (Complete)
30	Screwdriver (For Tamper Proof Screw)
