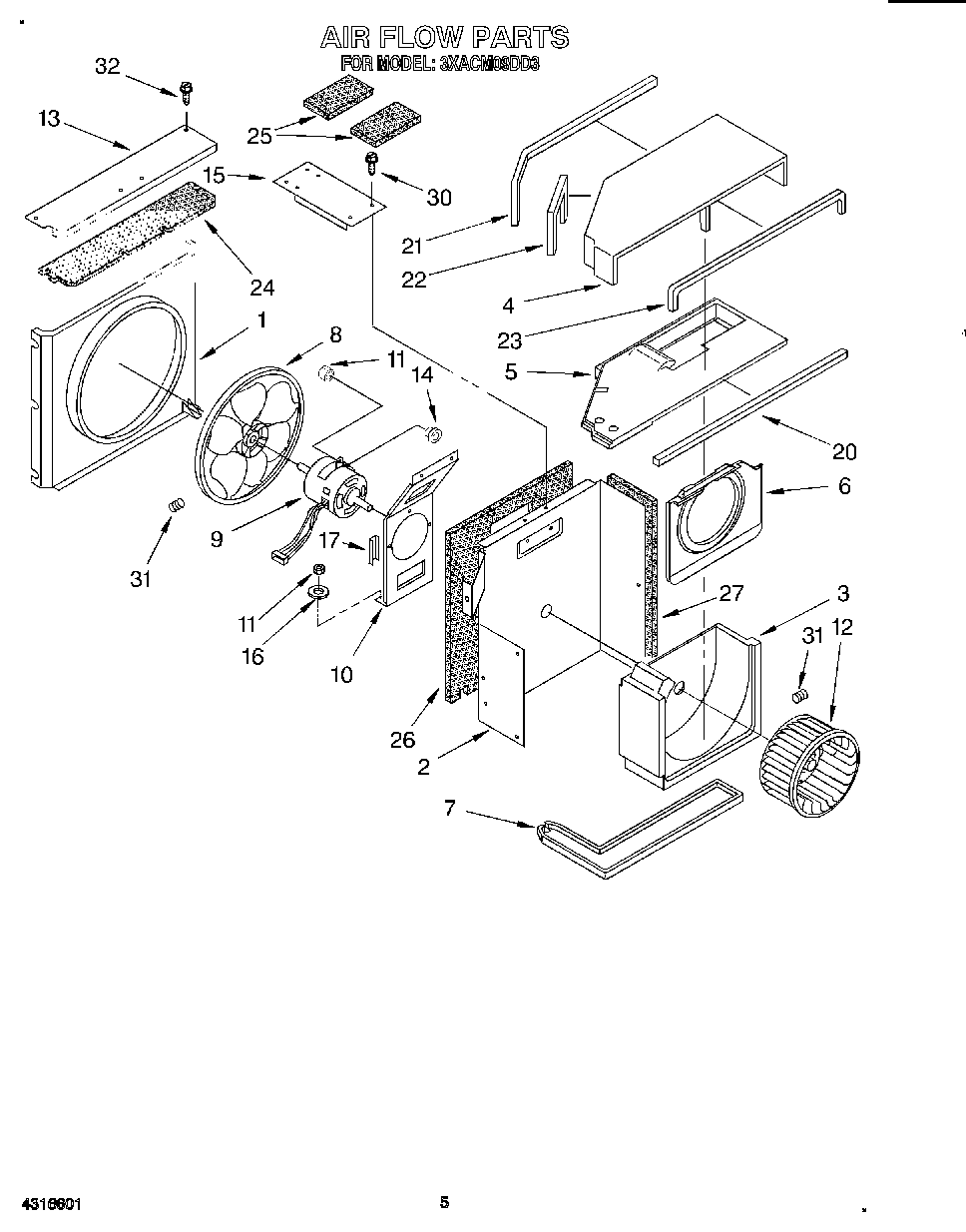

3XACM09DD3 03 – AIR FLOW

Products

PositionProduct
1Shroud, Condenser
2Wall, Dividing
3Scroll, Air Housing
4Hood, Air Housing
5Cover, Evaporator Top
6Orifice, Air Housing
7Pan, Drain
8Blade, Fan
9Motor, Fan
10Bracket, Motor Mount
11Nut, Hex 5MM
12Wheel, Blower
13Cover, Condenser Top
14Grommet, Fan Motor
15Support, Unit
16Washer, Bonded
17Guard, Edge
23WP854334 Whirlpool Air Conditioner Sealing Strip
24Seal, Condenser Top Cover
25Seal, Anti-Rub
26Insulation (Back, Dividing Wall)
27Insulation (Side, Dividing Wall)
30Screw No.8 x 1
31Set Screw 6M
32WP1163283 Whirlpool Air Conditioner Screw
