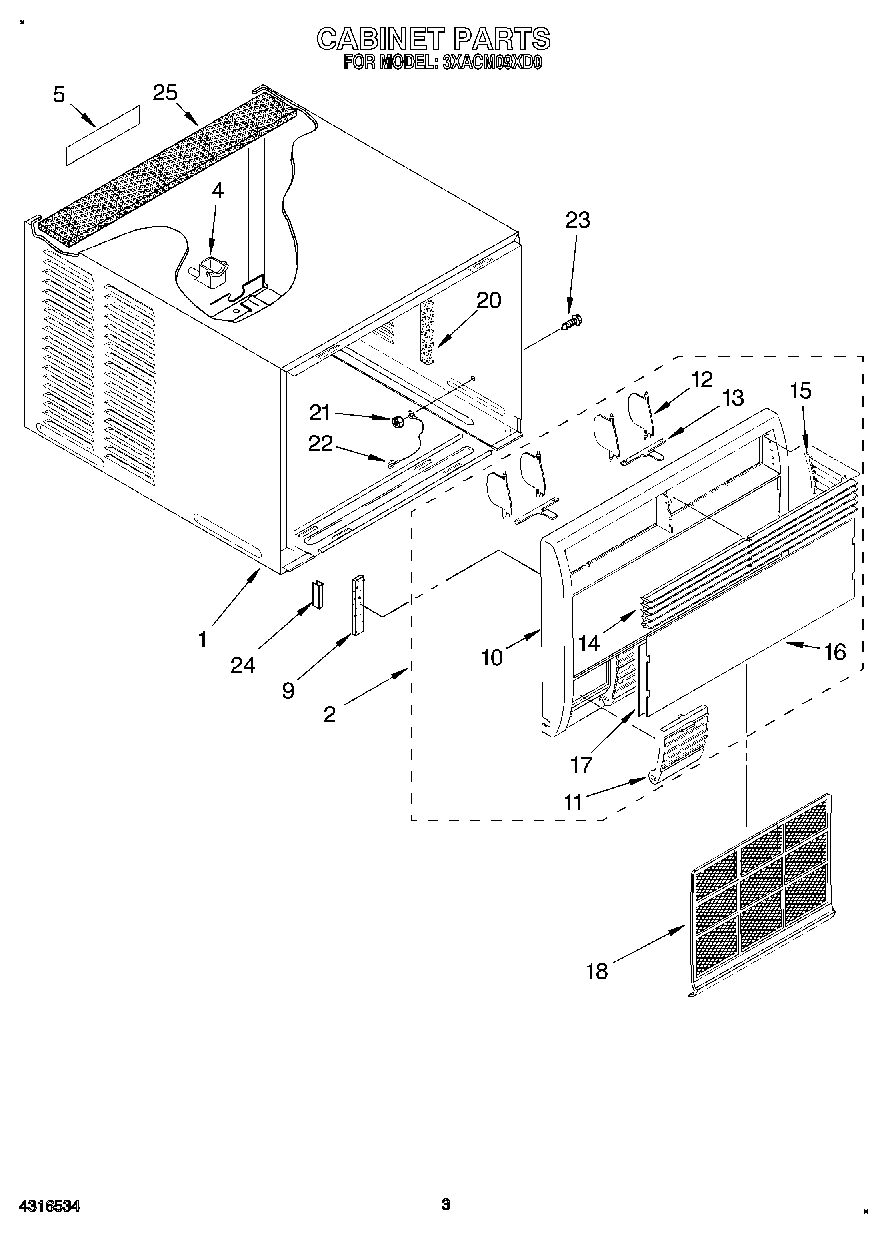

3XACM09XD0 02 – CABINET

Products

Position	Product
1	Cabinet (Order Cabinet Seals Also)
2	Front (Complete)
4	Cup, Drip
5	Label, Cabinet
9	Seal, Front (3)
10	Frame, Front
11	Door, Control
12	Louver, Vertical (4)
13	Link, Vertical Louver
14	Louver, Horizontal (5)
15	Link, Horizontal
16	Cover, Clear
17	Paper, Decorative
18	Filter
20	WP854334 Whirlpool Air Conditioner Sealing Strip
20	Seal, Cabinet (Bottom) (2)
20	Seal, Cabinet (Left Side)
21	WP486255 Whirlpool Air Conditioner Nut
22	Wire, Ground
23	WP488234 Whirlpool Air Conditioner Screw
24	Guard, Edge
25	Seal, Cabinet
