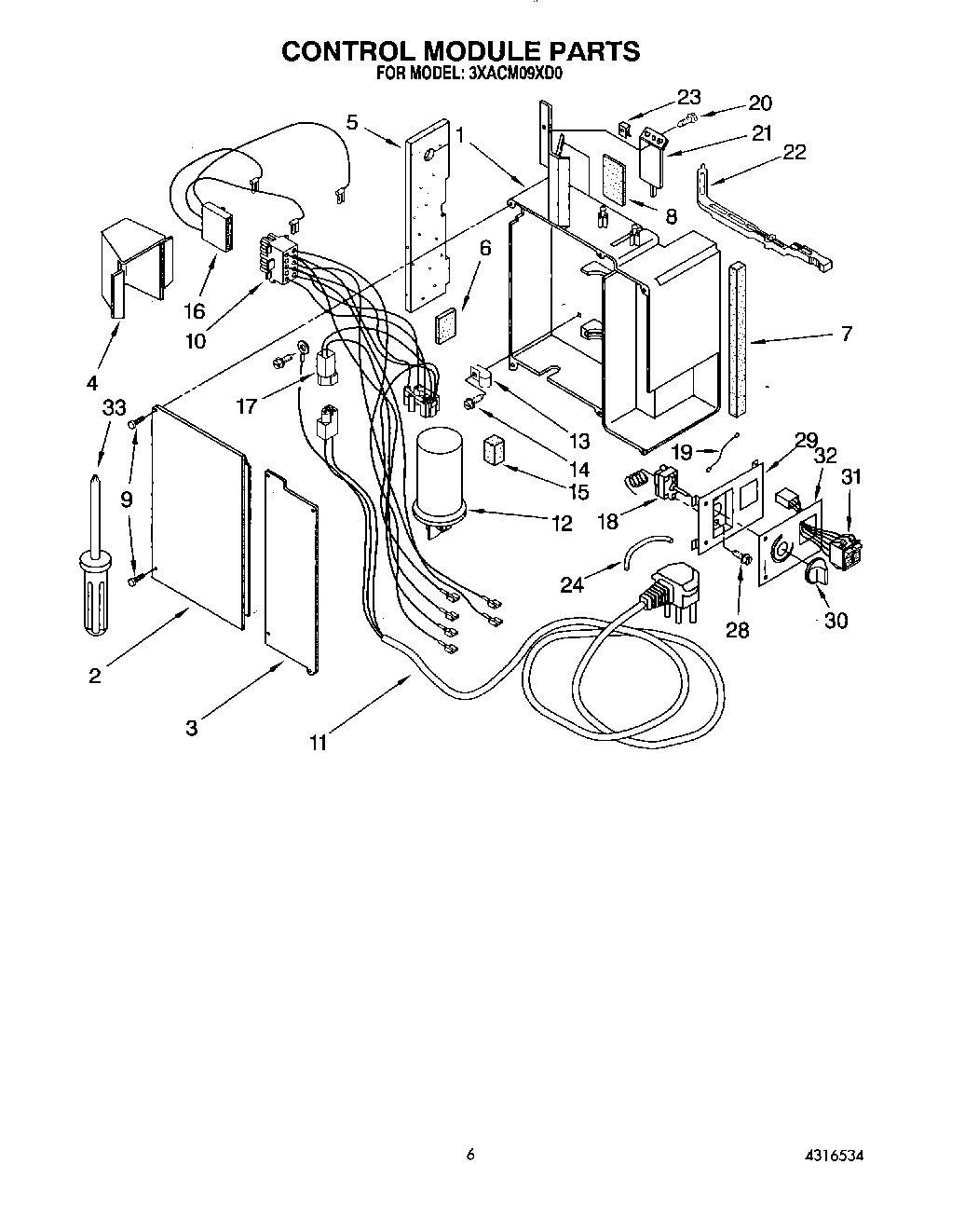

3XACM09XD0 04 – CONTROL MODULE

Products

PositionProduct
1Housing, Controls (Not Serviceable)
2Lid, Capacitor
3Lid, Controls
4Shield, Rain
5Seal, Tube
6Seal
7Seal
8Seal, Door
9Screw (Tamper- Resistant)
10Harness, Wiring 10 Pin (Not Serviceable)
11Cable, Appliance
12Capacitor, Running
13WPL 1180504
14Screw No.8
15Spacer
16Harness, Compressor
17Harness, Appliance Cable (Not Serviceable)
18Control, Temperature
19Wire, Ground
20489392 Whirlpool Refrigerator Screw
21Door, Exhaust
22Linkage, Exhaust Door
23Clip, Cabinet Front (2)
24Sleeve, Insulator
28Screw, 6-32 x .175
29Panel, Control
30Knob
31Switch, Rocker
32Escutcheon
33Control Box (Complete)
33Screwdriver (For Tamper Proof Screw)
