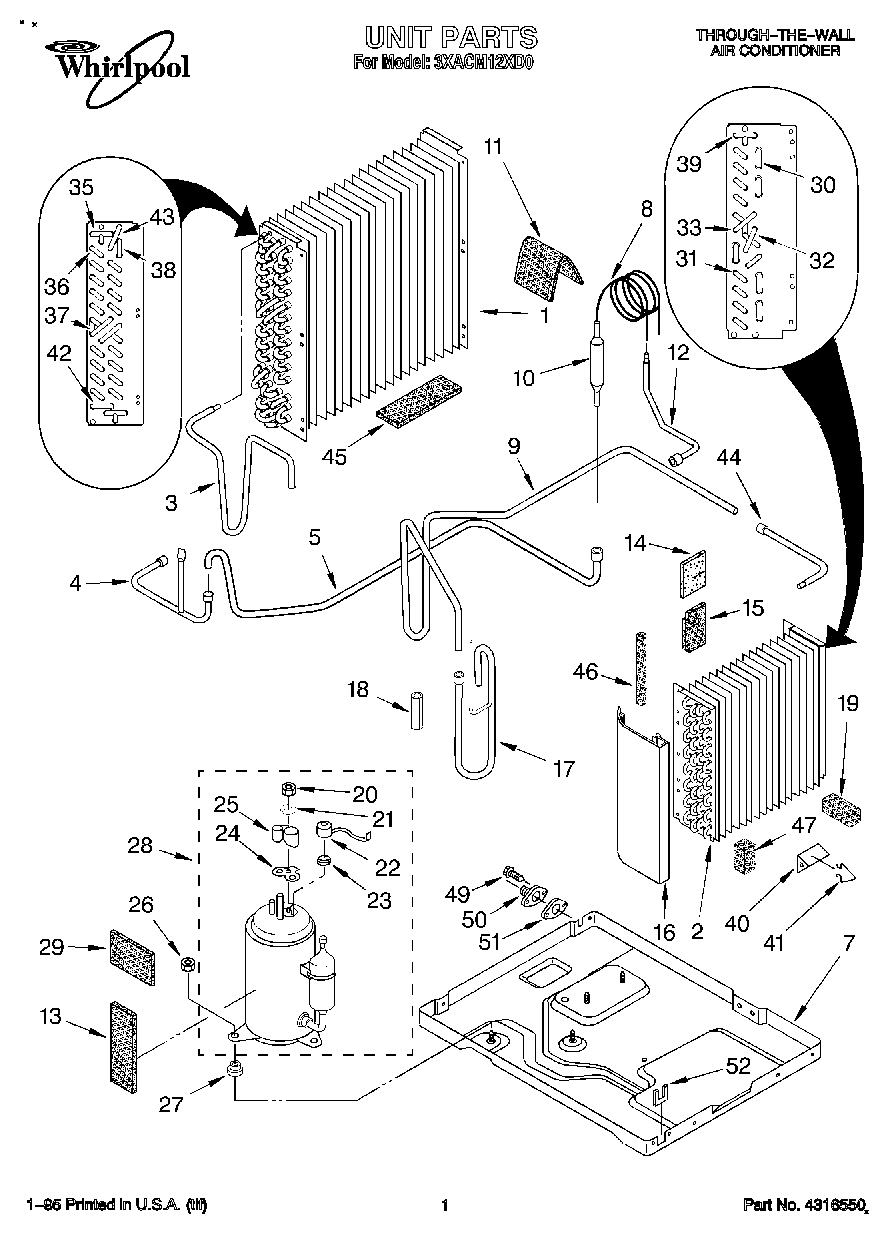

3XACM12XD0 01 – UNIT, LITERATURE

Products

Position	Product
1	Condenser
2	Evaporator
3	Tube, Discharge
4	Tube, Process
5	Tube, Wet Loop
7	Base
8	Tube, Restrictor (2 Required)
9	Tube, Suction/Evaporator
10	Strainer
11	WPL 1162650
12	Tube, Inlet (Row 1)
12	Tube, Inlet (Row 3)
13	Seal, Anti-Rub
14	Seal, Suction Tube
15	Seal, Inlet Tube
16	Cover, Hair Pin
17	Tube, Suction/Compressor
18	Dampener
19	Seal, Strip (Top Rear)
20	WP950027 Whirlpool Mounting Nut
21	Gasket, Nut
22	Overload
23	Spring, Overload
24	WP950035 Whirlpool Cover Gasket
25	WP950036 Whirlpool Cover Assembly
26	Nut, 8MM
27	WP950021 Whirlpool Grommet
28	Compressor
29	Seal, Compressor
30	Bend, Return Evaporator (11)
31	WP855199 Whirlpool Bend Return
32	Bend, Return
33	Bend, Return
35	Bend, 3-Way
36	Bend, Return Condenser (10)
37	Tube, Riser (2)
38	Bend, Return Condenser (4)
39	Bend, Tube (3-Way)
40	Anticipator, Temperature
41	Clip, Anticipator
42	Bend Return
43	Bend, Return Condenser (1)
44	Tube, Outlet
45	Deflector, Water (Foam)
46	Seal, Hairpin (Cover)
47	Seal, Hairpin (Lower)
49	Screw No.8
50	Drain Plug
51	Gasket, Drain Plug
52	Protector, Cord
52	Owners Manual/Installation Instructions
52	Wiring Diagram
