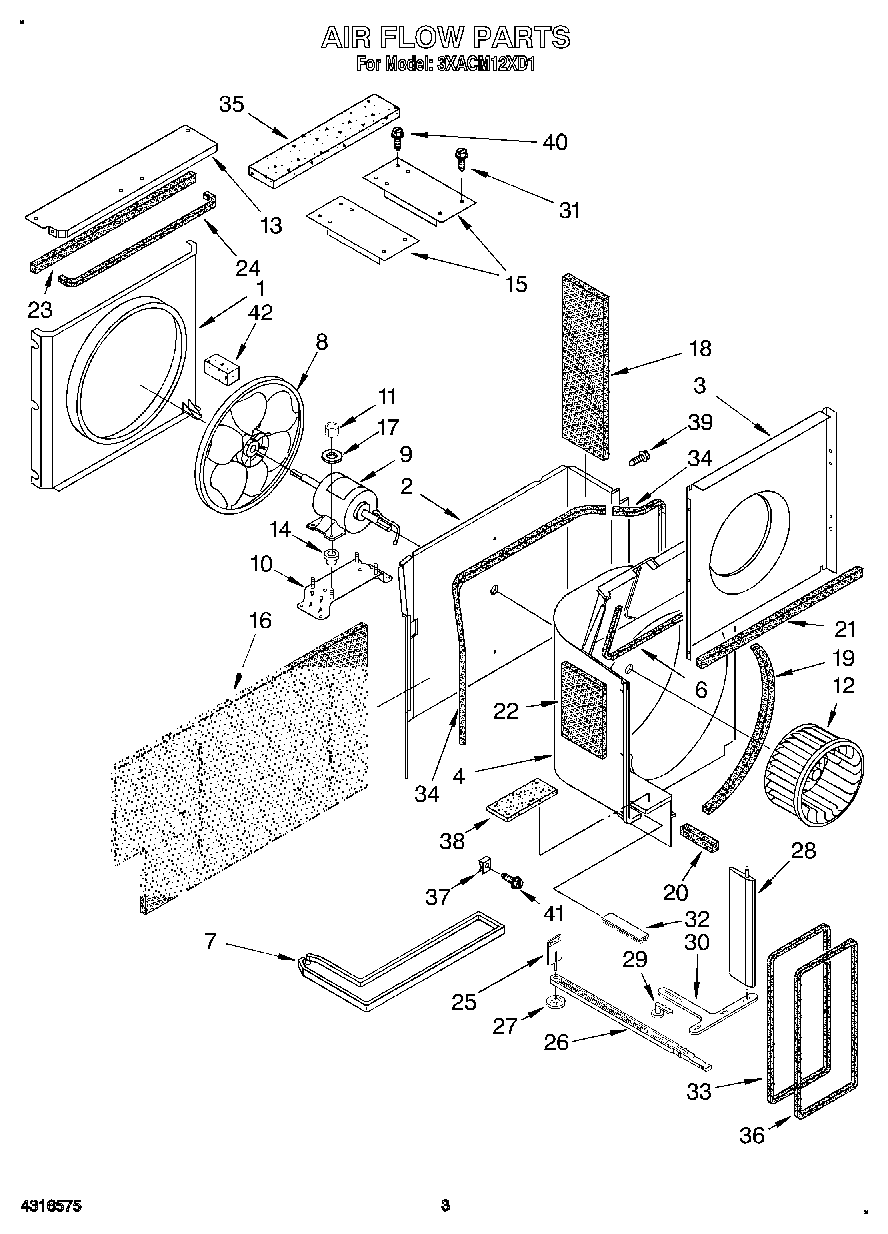

3XACM12XD1 02 – AIR FLOW

Products

Position	Product
1	Shroud, Condenser
2	Wall, Dividing
3	Shroud, Evaporator
4	Housing, Air
6	Seal (Housing/Evaporator)
7	Pan, Drain
8	Blade, Fan
9	Motor, Fan
10	Bracket, Motor Mount
11	Nut, Hex 5MM
12	Wheel, Blower
13	Cover, Condenser Top
14	Grommet, Fan Motor
15	Support, Unit
16	Insulation, Dividing Wall
17	Washer, Bonded
18	Insulation (Side, Dividing Wall)
19	Seal (Housing/Orifice)
20	Seal
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	Seal, Air Housing (Side)
24	Seal, Condenser Shroud
25	Door, Exhaust
26	Linkage, Exhaust Door
27	Retainer, Linkage
28	Louver, Verticle (3 Required)
29	Crank, Verticle Louver
30	Link, Verticle Louver
31	WP1163283 Whirlpool Air Conditioner Screw
31	Screw, 8-18 x 3/8
32	Cover, Slot
34	Seal, Unit (2)
35	Seal, Condenser/Unit Support
36	Foam, Air Housing
37	Clip, Cabinet Front (2)
38	Seal, Louver
39	Screw
40	Screw No.8 x 1
41	489392 Whirlpool Refrigerator Screw
42	Seal, Condenser Shroud (Bottom)
