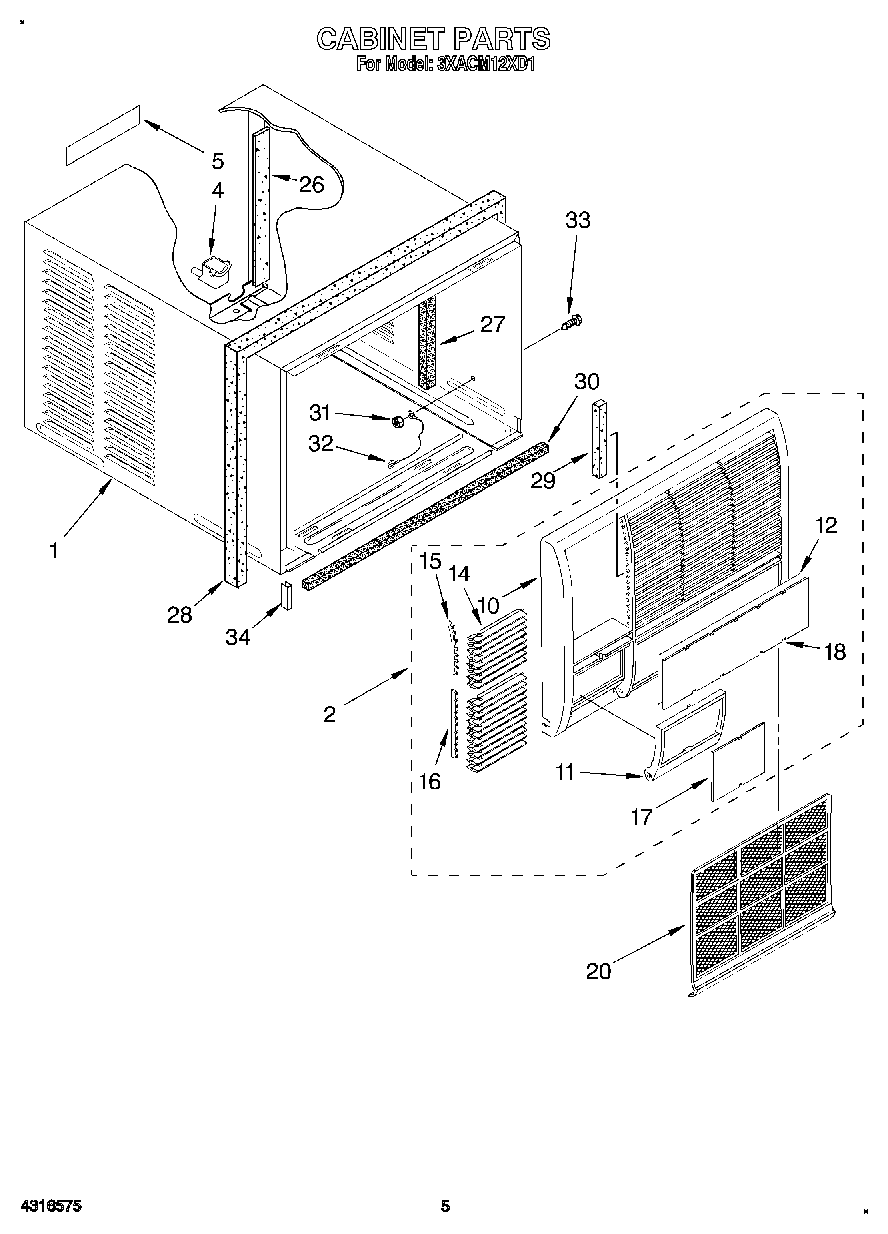

3XACM12XD1 03 – CABINET

3XACM12XD1 03 – CABINET

Written by

in

3XACM12XD1 03 – CABINET

Products

PositionProduct
1Cabinet
2Front (Complete)
4Cup, Drip
5Label, Cabinet
10Frame, Front
11Door, Control
12Paper, Decorative (Front)
12Paper, Decorative (Control Door)
14Louver, Horizontal (15 Required)
15Link, Horizontal Louver (Top)
16Link, Horizontal Louver (Bottom)
17Cover, Clear (Control Door)
18Cover, Clear
20Filter
26Seal, Condenser Header Plate
27Insulation, Cab.
28Seal, Insulation
29Seal, Front (Left Side)
29Seal, Front (Bottom)
29Seal, Front (Right Side)
30WP854334 Whirlpool Air Conditioner Sealing Strip
31WP486255 Whirlpool Air Conditioner Nut
32Wire, Ground
33WP488234 Whirlpool Air Conditioner Screw
34Guard, Edge
