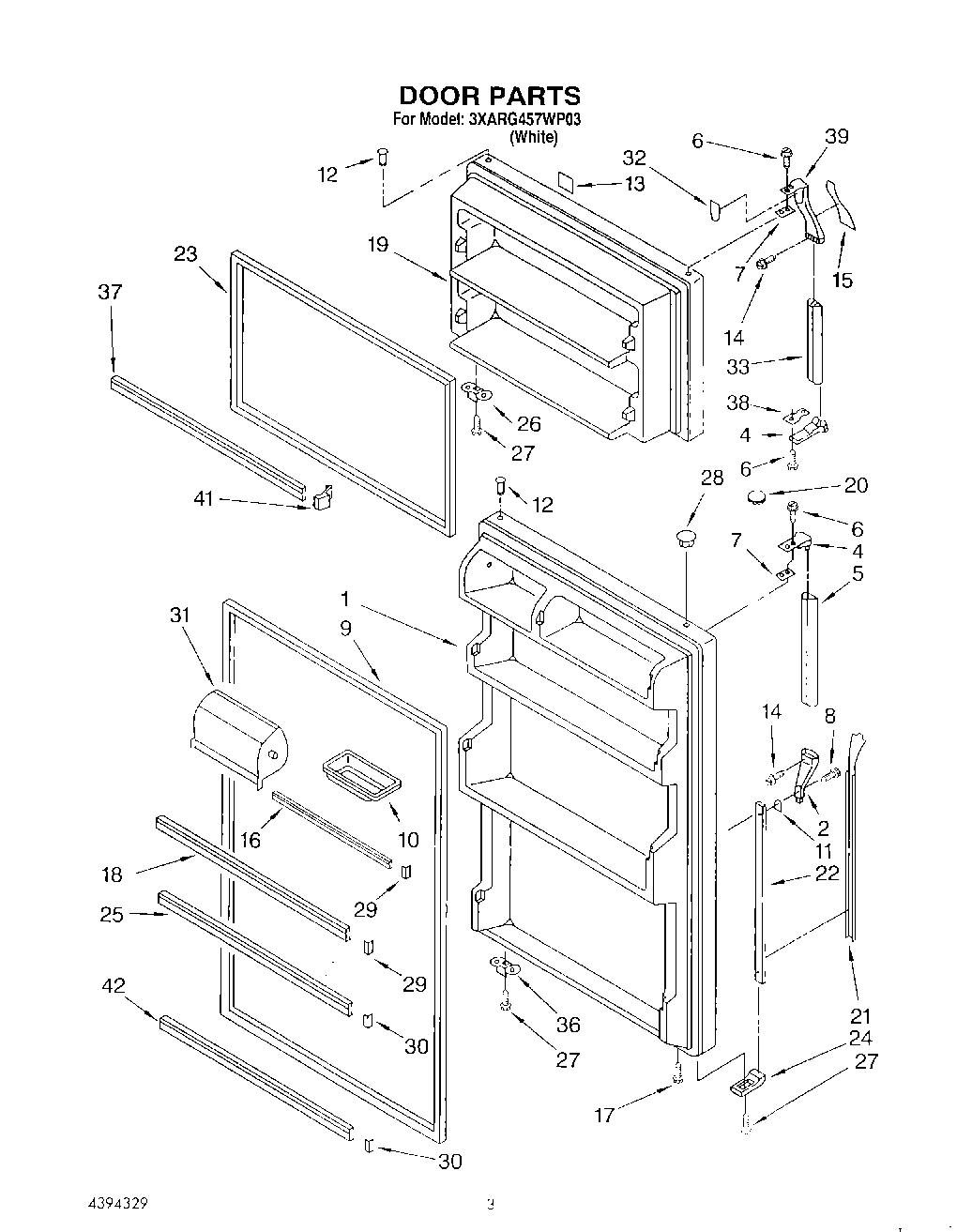

3XARG457WP03 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.8) (White)
2	Handle End, Side
4	Handle End
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	Butter, Tray
11	Shim
12	WP2183003 Whirlpool Thimble
13	Nameplate (White)
14	Screw
15	Insert, Handle
16	Trim, Door Shelf
17	WP8281206 Whirlpool Refrigerator Screw
19	Freezer Door (Includes Item 23) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	Insert, Handle (White)
22	Retainer
23	Door Gasket, Magnetic (Service) (Mist Beige)
24	WPL 1105804
25	Trim, Door Shelf
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
32	Shim, EndCap (Top)
33	WPL 2166437
36	Bracket, Door Stop
37	TRIM-DOOR
38	Shim, Handle
39	Handle End, Top
41	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42	Trim, Door
