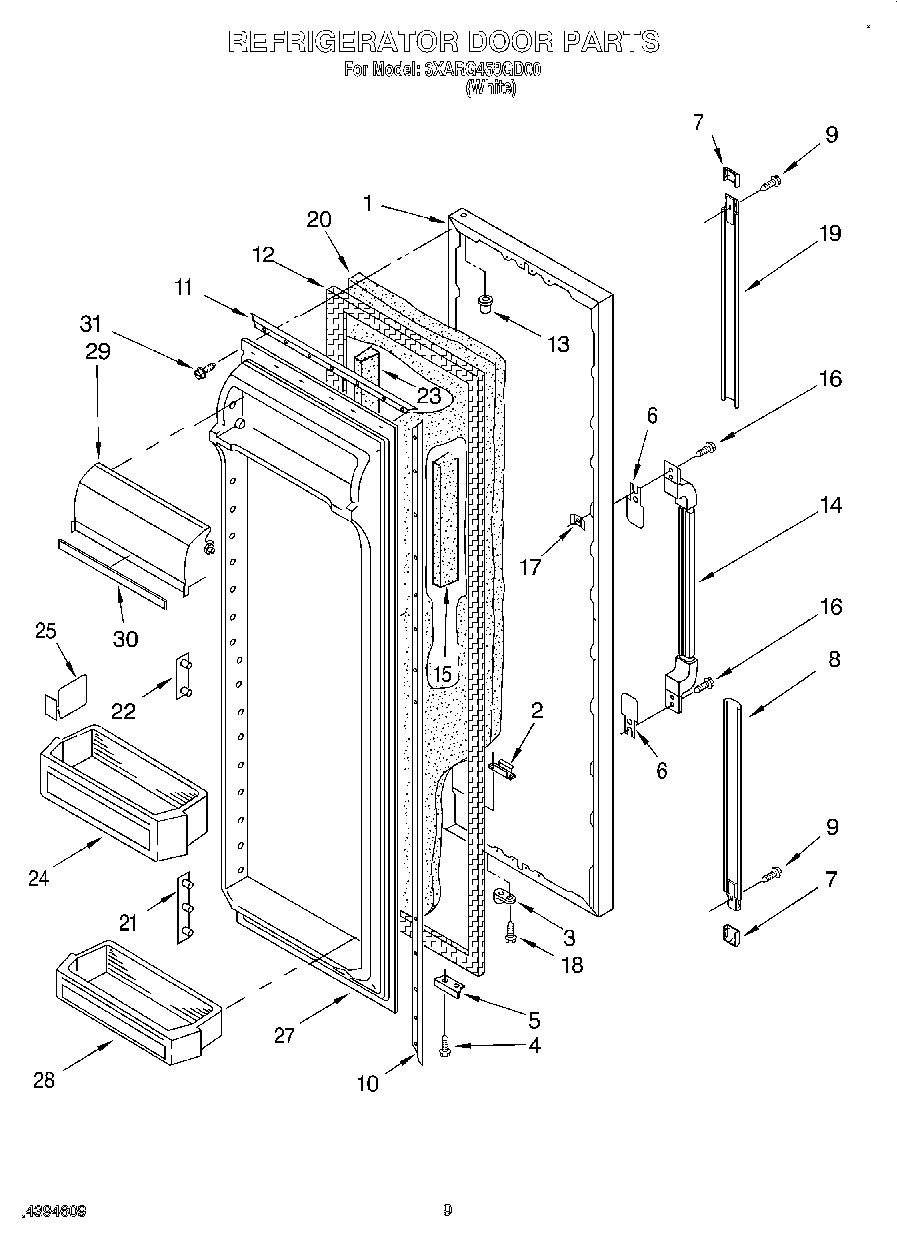

3XARG458GD00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (White)
2Tap, Plate
34318165 Whirlpool Refrigerator Door Closure Cam Kit
4WP489483 Whirlpool Screw
5Bracket, Door Stop
6Shim
7Cover, Endcap (White)
8Extension, Bottom (White)
10Retainer, Gasket
11Gasket Retainer, Top & Bottom
122188404A Whirlpool Refrigerator Door Gasket
13Cap, Hinge Sleeve (2)
14Handle, Center (White)
15Door Dike, Handle Side
16WP489463 Whirlpool Refrigerator Screw
17Screw Anchor (2)
18WP3400012 Whirlpool Refrigerator Screw
19Extension, Top (White)
20WPL 876029
21Pin Plate (8)
22Pin Plate (6)
23Door Dike, Hinge Side
24Shelf Bin (2)
25Divider (3)
27Panel, Interior Door
28Shelf Bin
29Door, Compartment
30Trim, Compartment Door
31WP489069 Whirlpool Compactor Screw
