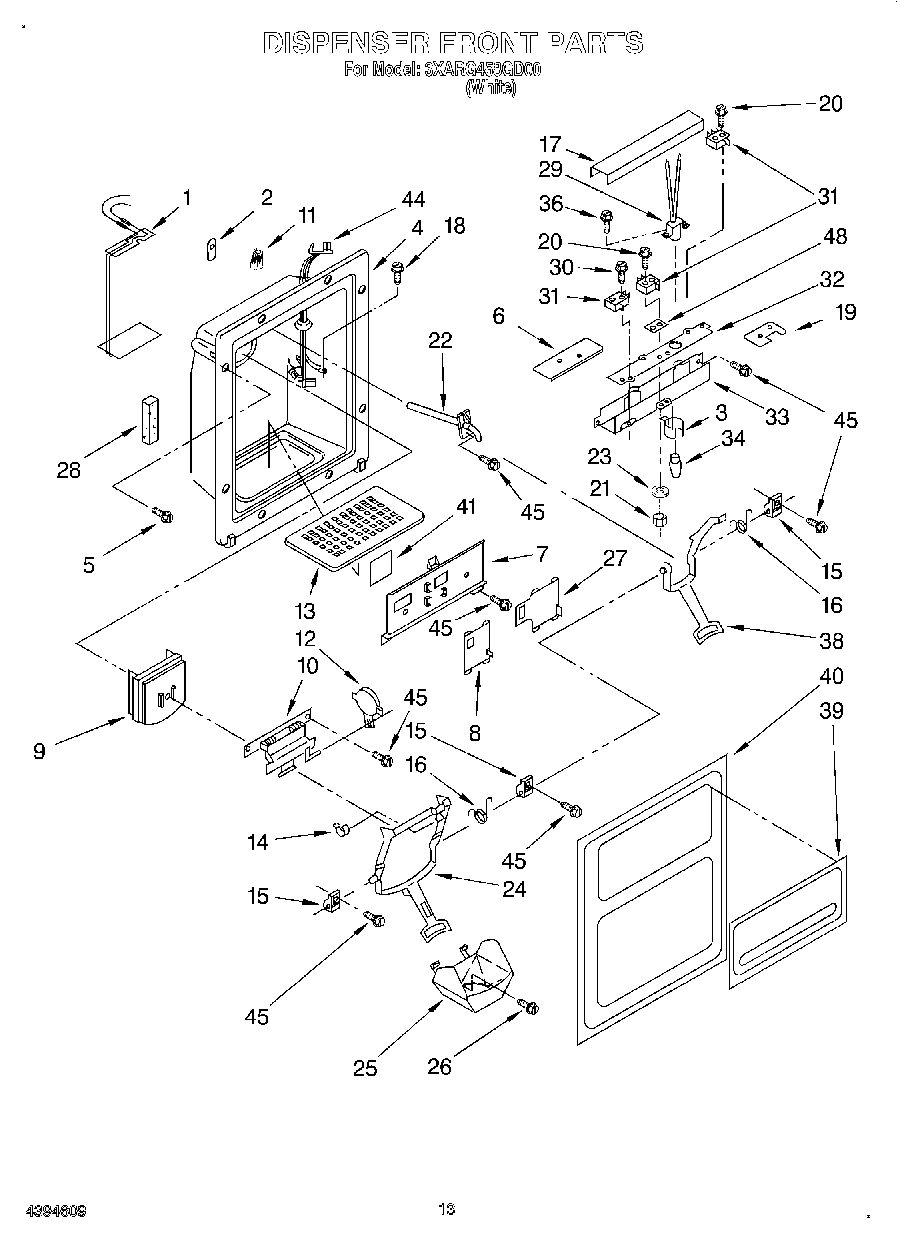

3XARG458GD00 07 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
3	Shroud, Bracket
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
6	Guard, Switch
7	Frame, Slides
8	Slide, Cube/Crush Switch
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
19	Guard, Switch
20	Screw
21	Nut
22	WP4388152 Whirlpool Refrigerator Fitting
23	Lock Washer
24	Lever, Ice Dispenser (White)
25	Guide, Ice
26	Screw
27	Slide, Light Switch
28	Seal
29	Lamp Holder
30	Screw, 4-40 x 1
31	WP2162361 Whirlpool Switch
32	Insulator, Control Bracket
33	Bracket, Control
34	Bulb, Light
36	WP489128 Whirlpool Refrigerator Screw
38	Lever, Water Dispenser (White)
39	Plaque, Front Cover
40	Front Cover, Housing (Includes Item 39)
41	Heat Shield, Frame
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
48	Spacer, Switch (2)
