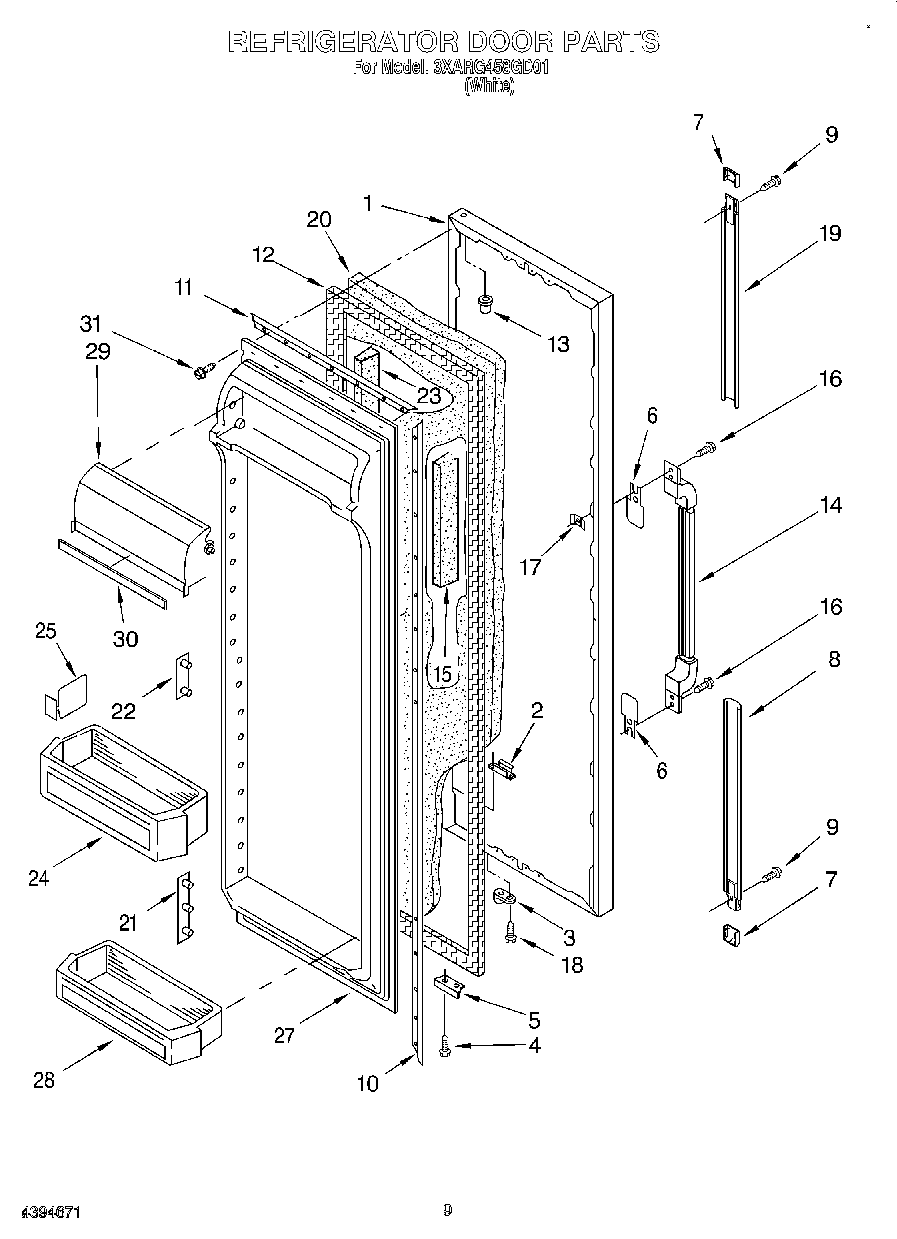

3XARG458GD01 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (White)
2	Tap, Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489483 Whirlpool Screw
5	Bracket, Door Stop (Chrome)
6	Shim
7	Cover, Endcap (White)
8	Extension, Bottom (White)
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center (White)
15	Door Dike, Handle Side
16	WP489463 Whirlpool Refrigerator Screw
17	Screw Anchor (2)
18	WP3400012 Whirlpool Refrigerator Screw
19	Extension, Top (White)
20	WPL 876029
21	Pin Plate (8)
22	Pin Plate (6)
23	Door Dike, Hinge Side
24	Shelf Bin (2)
25	Divider
27	Panel, Interior Door
28	Shelf Bin
29	Door, Compartment
30	Trim, Compartment Door
31	WP489069 Whirlpool Compactor Screw
