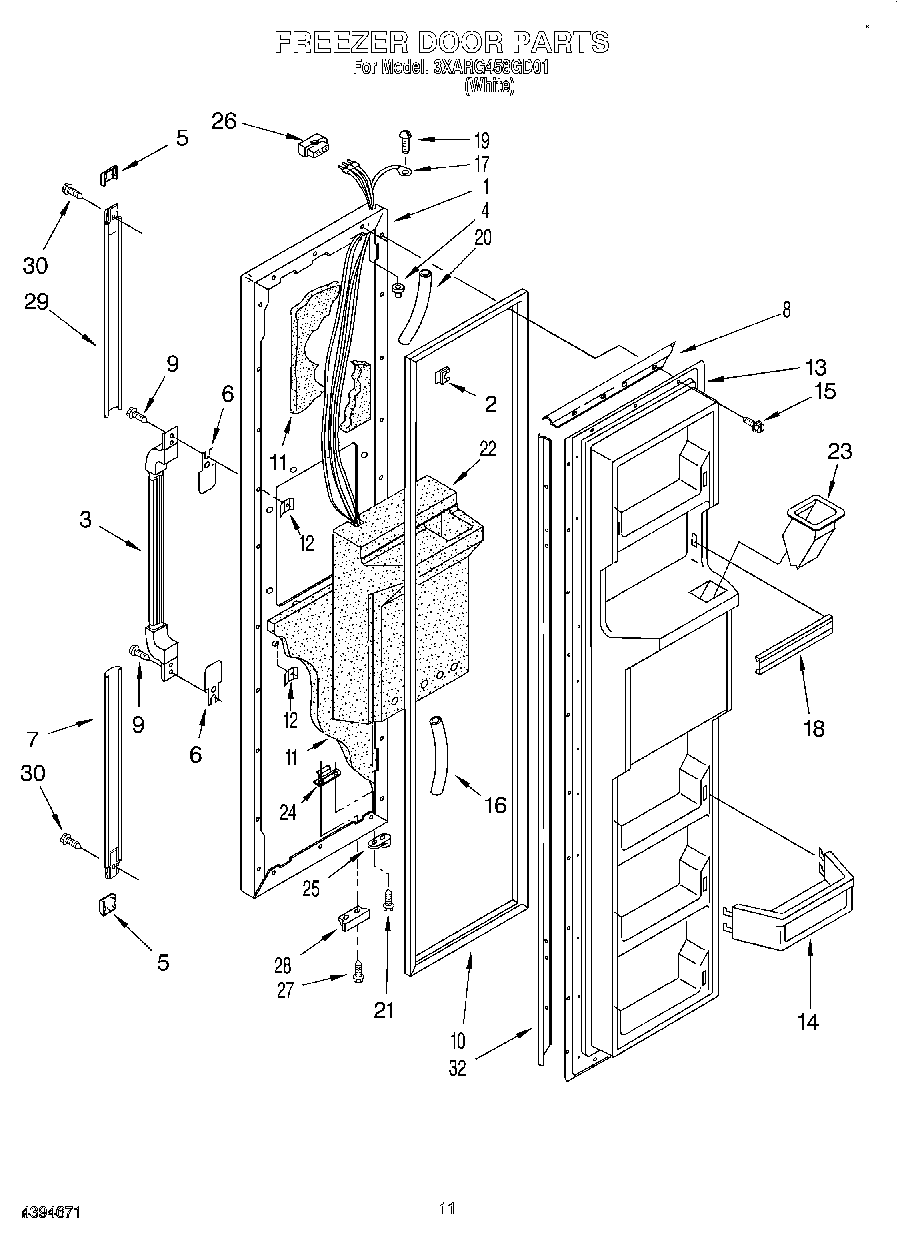

3XARG458GD01 06 – FREEZER DOOR

3XARG458GD01 06 – FREEZER DOOR

Written by

in

3XARG458GD01 06 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (White)
2Clip
3Handle, Center (White)
4Seal, Hinge Pin
5Cover, Endcap (White)
6Shim
7Extension, Bottom (White)
8Retainer, Gasket
9WP489463 Whirlpool Refrigerator Screw
102188405A Whirlpool Refrigerator Door Gasket
11WPL 876029
12WP939101 Whirlpool Refrigerator Plate
13Panel, Interior Door
14Trim, Door Shelf (4)
15WP489069 Whirlpool Compactor Screw
16Tube, Door Wiring
17Harness, Door
18TRIM-DOOR
19WP488234 Whirlpool Air Conditioner Screw
20Tube, Door Wiring
21WP3400012 Whirlpool Refrigerator Screw
22Insulation, Dispenser
23Chute, Ice
24Tap, Plate
254318165 Whirlpool Refrigerator Door Closure Cam Kit
26WP2154473 Whirlpool Refrigerator Connector
27WP489483 Whirlpool Screw
28Bracket, Door Stop (Chrome)
29Extension, Top (White)
32Retainer, Gasket
