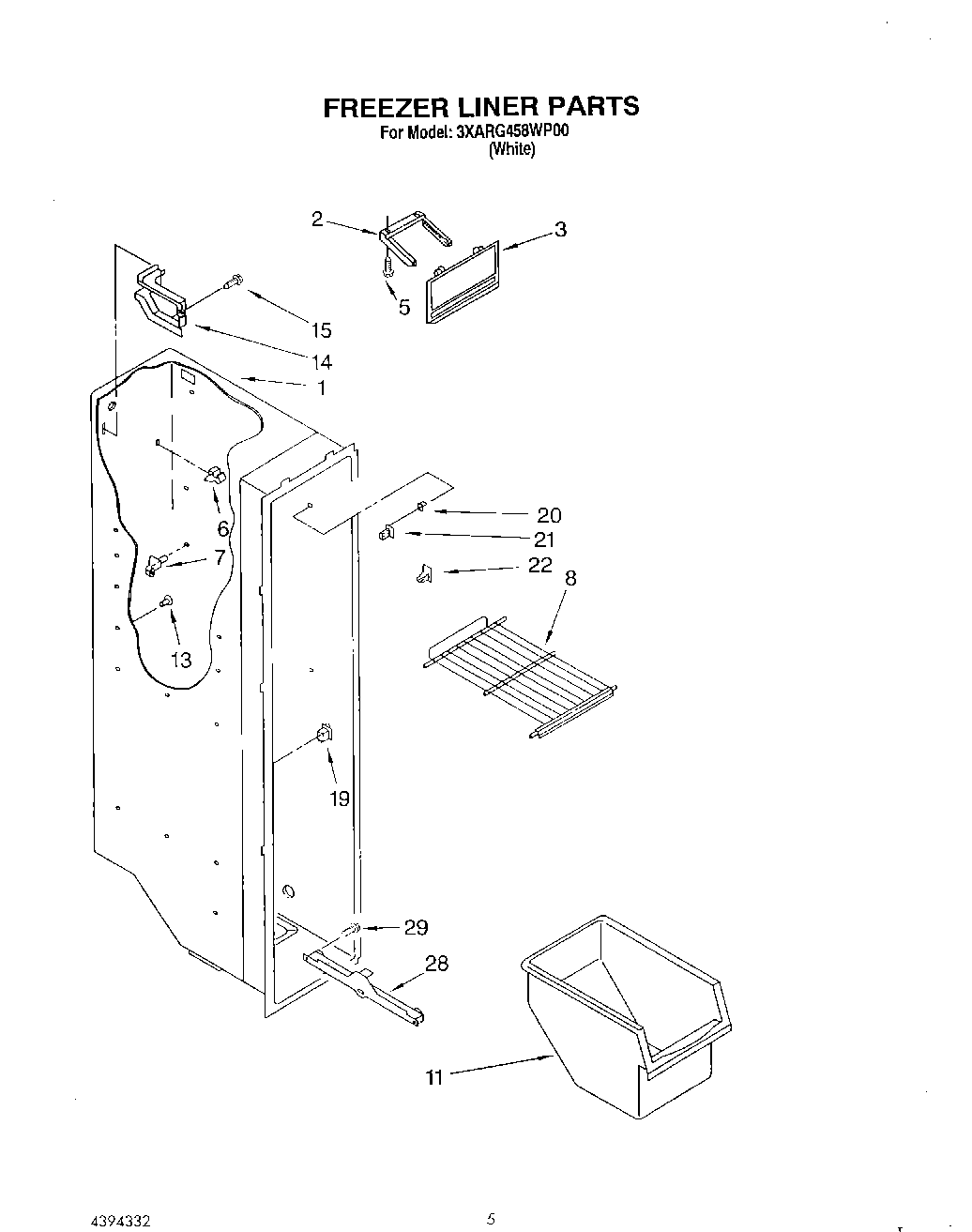

3XARG458WP00 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Shelf (2)
8	Shelf (1)
11	Bin, Freezer
13	Grommet
14	Cover, Wiring
15	SCREW
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Stud, Support
21	Stud, Front R.S.
22	Stud, Rear R.S.
28	Slide, Basket (Left Side)
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
