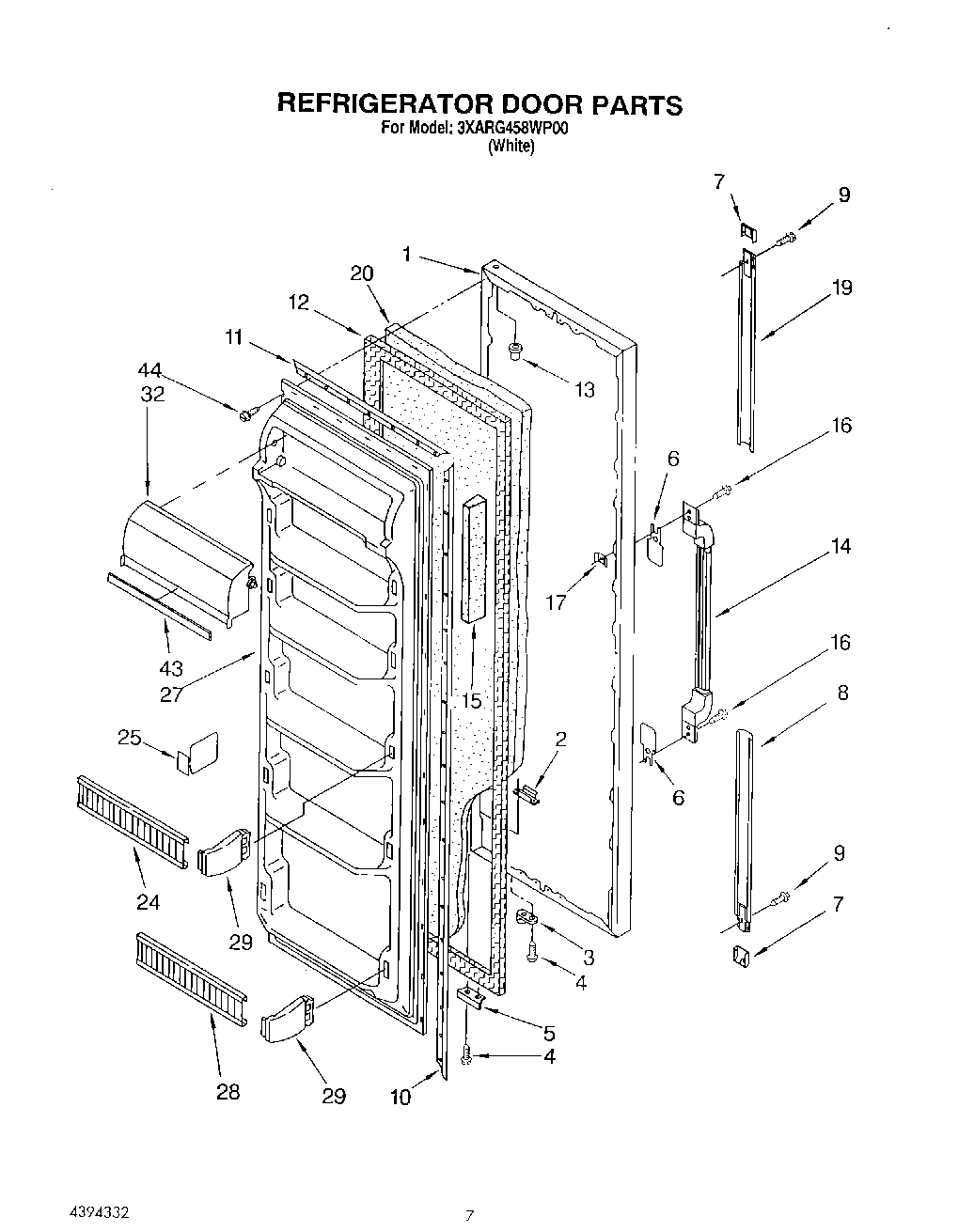

3XARG458WP00 05 – REFRIGERATOR DOOR

3XARG458WP00 05 – REFRIGERATOR DOOR

Written by

in

3XARG458WP00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Panel, Refrigerator Door (Also Order Item 20)
2Tap, Plate
34318165 Whirlpool Refrigerator Door Closure Cam Kit
4WP999367 Whirlpool Refrigerator Screw
5Bracket, Door Stop
6Shim
7Cover, Endcap (White)
8Extension, Bottom (White)
10Retainer, Gasket
11Gasket Retainer, Top & Bottom
122188404A Whirlpool Refrigerator Door Gasket
13Cap, Hinge Sleeve (2)
14Handle, Center
15Reinforcement, Shelf
16WP489463 Whirlpool Refrigerator Screw
17Screw Anchor (2)
19Extension, Top (White)
20WPL 876029
24Trim, Door Shelf (2)
25Divider-Door
27Panel, Interior Door
28Trim, Door Shelf (2)
294388286 Whirlpool Refrigerator Shelf Bar Endcap Kit 2 Pack White
32Door, Compartment
43Trim, Compartment Door
44WP489069 Whirlpool Compactor Screw
