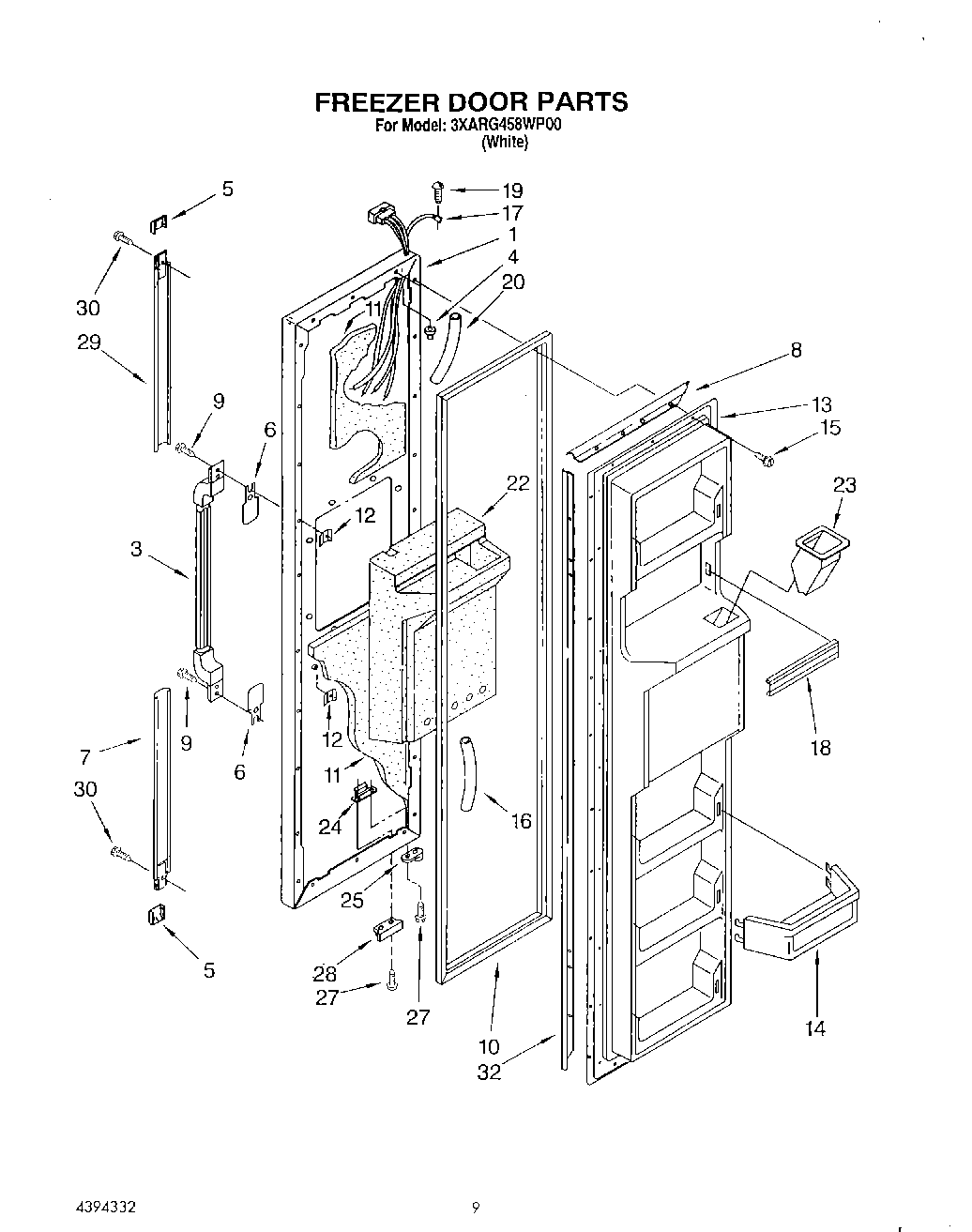

3XARG458WP00 06 – FREEZER DOORadmin2025-04-26T12:25:34+00:003XARG458WP00 06 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Also Order Item 11) |
| 2 | WP488787 Whirlpool Refrigerator Screw |
| 3 | Handle, Center |
| 4 | Seal, Hinge Pin |
| 5 | Cover, Endcap (White) |
| 6 | Shim |
| 7 | Extension, Bottom (White) |
| 8 | Retainer, Gasket |
| 9 | WP489463 Whirlpool Refrigerator Screw |
| 10 | 2188405A Whirlpool Refrigerator Door Gasket |
| 11 | WPL 876029 |
| 12 | WP939101 Whirlpool Refrigerator Plate |
| 13 | Panel, Interior Door |
| 14 | Trim, Door Shelf (4) |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | Tube, Door Wiring |
| 17 | Harness, Door |
| 18 | TRIM-DOOR |
| 19 | WP488234 Whirlpool Air Conditioner Screw |
| 20 | Tube, Door Wiring |
| 22 | Insulation, Dispenser |
| 23 | Chute, Ice |
| 24 | Tap, Plate |
| 25 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 27 | WP999367 Whirlpool Refrigerator Screw |
| 28 | Bracket, Door Stop |
| 29 | Extension, Top (White) |
| 32 | Retainer, Gasket |
