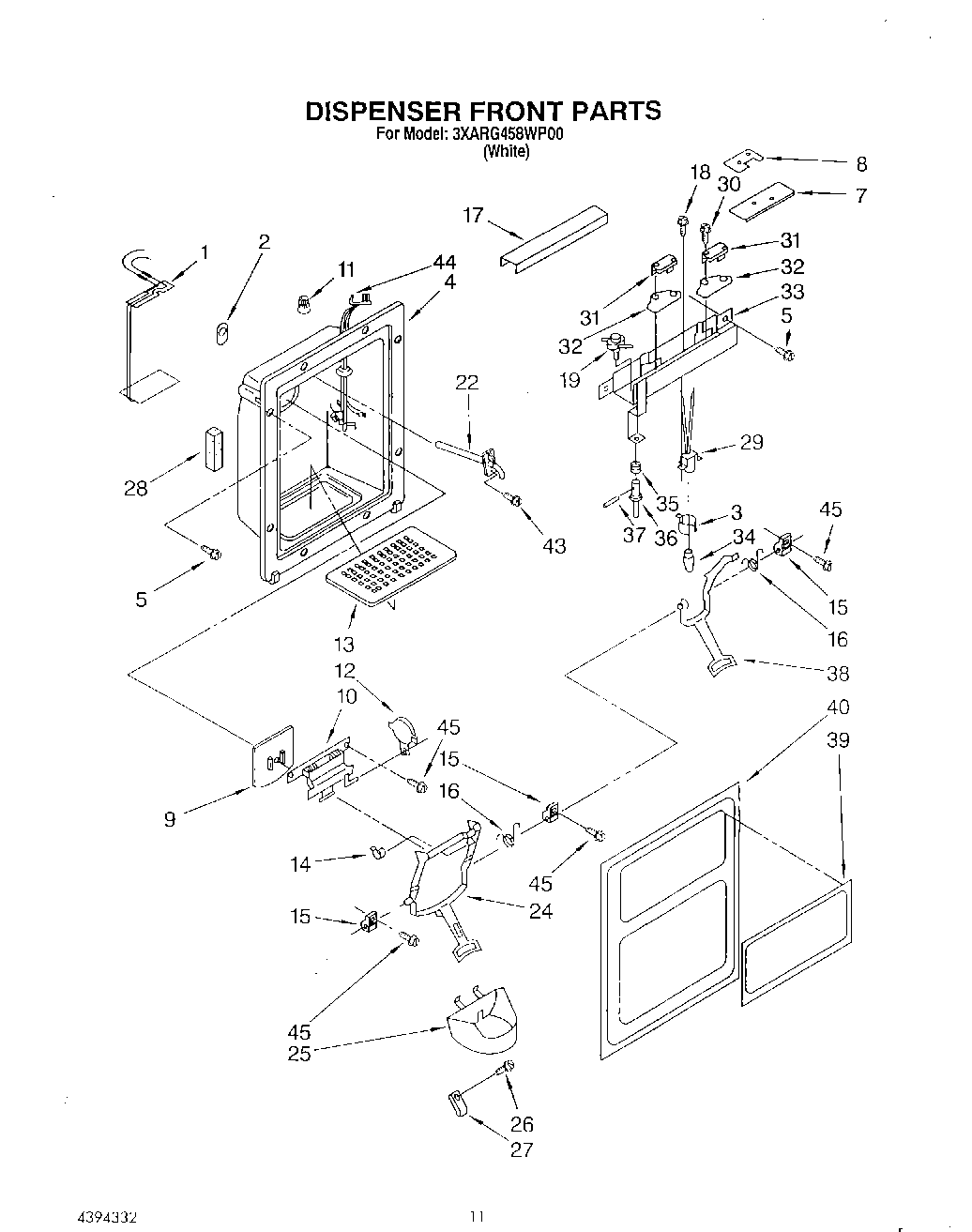

3XARG458WP00 07 – DISPENSER FRONTadmin2025-04-26T12:25:50+00:003XARG458WP00 07 – DISPENSER FRONT
Products
| Position | Product |
|---|
| 1 | Heater, Dispenser |
| 2 | Grommet |
| 3 | Shroud, Bracket |
| 4 | Housing, Dispenser |
| 5 | W11693756 Whirlpool Screw Assembly |
| 7 | Guard, Switch |
| 8 | Guard, Switch |
| 9 | Door, Ice |
| 10 | Door Mechanism Assembly (Includes Item 9) |
| 11 | Conector, Wire |
| 12 | WP1120581 Whirlpool Refrigerator Mechanism |
| 13 | Grille, Overflow (White) |
| 14 | Clip, Bearing (2) |
| 15 | Bearing, Lever (3) |
| 16 | Spring, Lever (2) |
| 17 | Shield, Wiring |
| 18 | WP489128 Whirlpool Refrigerator Screw |
| 19 | Switch, Light |
| 22 | WP4388152 Whirlpool Refrigerator Fitting |
| 24 | Lever, Ice Dispenser (White) |
| 25 | Guide, Ice (White) |
| 26 | Screw |
| 27 | Stop, Glass (White) |
| 28 | Seal |
| 29 | Socket, Lamp |
| 30 | Screw |
| 31 | WP2162361 Whirlpool Switch |
| 32 | Insulator, Switch (2) |
| 33 | Bracket, Control |
| 34 | Bulb, Light |
| 35 | Spring, Plunger |
| 36 | Plunger |
| 37 | Pin, Retainer |
| 38 | Lever, Water Dispenser (White) |
| 39 | Plaque, Front Cover |
| 40 | Front Cover, Housing (Includes Item 39) |
| 43 | Screw, 8-18 x 3/4 |
| 44 | Wiring Assembly, Door |
| 45 | WP3400906 Whirlpool Refrigerator Screw |
