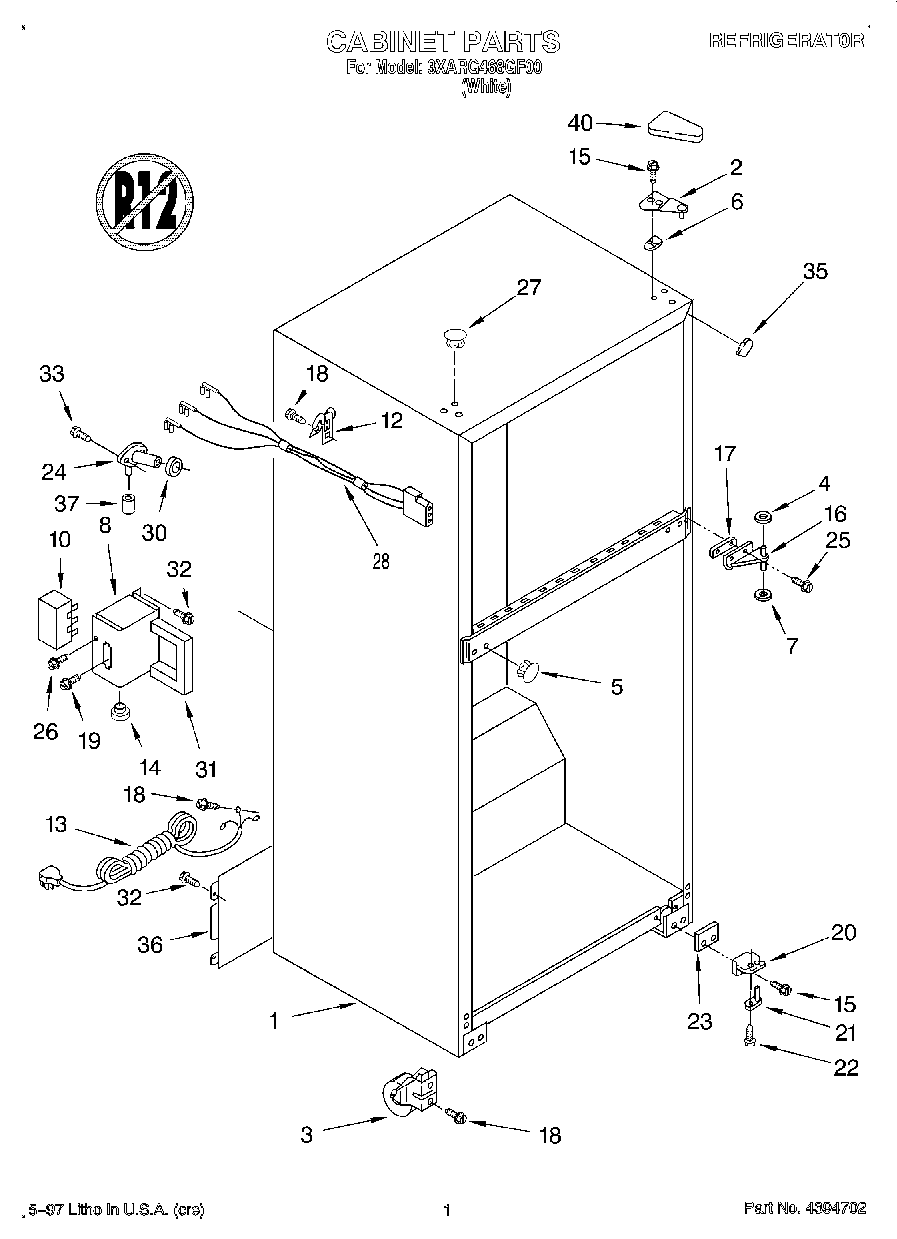

3XARG468GF00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3Roller-Front
4WP487576 Whirlpool Washer
5Hole Plug (4) (White)
6Shim, Hinge Top
7WP487802 Whirlpool Refrigerator Washer
8Enclosure, Term.
10Terminal Block
12489348 Whirlpool Refrigerator Tube Clamp
13Service Cord
14Bushing
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
18WP489442 Whirlpool Refrigerator Screw
19WPW10272364 Whirlpool Refrigerator Screw
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22Screw 10-32 x 5/16
23WP2201567 Whirlpool Hinge Shim
24WP2196157 Whirlpool Fill Tube
25WP999367 Whirlpool Refrigerator Screw
26WP489399 Whirlpool Refrigerator Screw
27WP2151652 Whirlpool Refrigerator Button Plug
28Wire Assembly
30WP1106508 Whirlpool Refrigerator Gasket
31Gasket
32WP250830 Whirlpool Refrigerator Screw
35W10859322 Whirlpool Refrigerator Filler
362213762 Whirlpool Refrigerator Unit Cover
37WP487996 Whirlpool Refrigerator Cap Tube
40WP2213360 Whirlpool Refrigerator Cover
