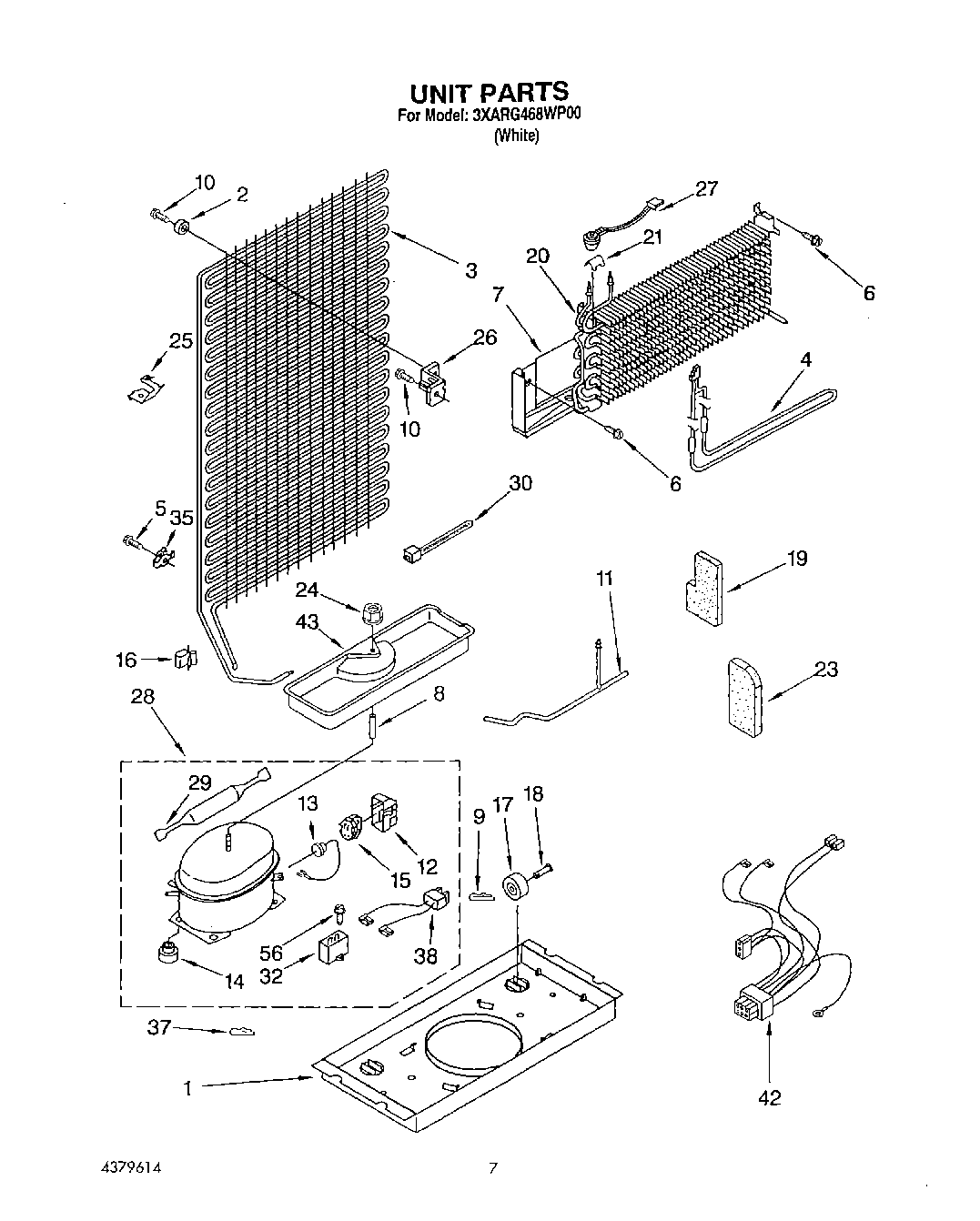

3XARG468WP00 04 – UNIT

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Bumper
3	Condenser
4	WP2167357 Whirlpool Refrigerator Heater
5	WP965173 Whirlpool Dishwasher Screw
7	Heat Shield
8	Spacer
9	Clip-Pin
10	WP488163 Whirlpool Refrigerator Screw
11	Evacuation Tube Assembly
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	WP2163786 Whirlpool Refrigerator Grommet
15	WP2262184 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	Pin-Roller
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Bracket, Condenser
27	WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
28	Installation Kit
28	Compressor (Includes Items 11, 12, 13, 14, 15, 21, 29, 32, 38 And 56) (Also Order)
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WP2201147 Whirlpool Refrigerator Capacitor
35	Clip, Tube
37	Clip, Compressor
38	WP2172890 Whirlpool Refrigerator Wire
42	Wire Assy. Unit
43	Evaporator Tray
56	978026 Whirlpool Refrigerator Primary Valve
56	978027 Whirlpool Refrigerator Primary Valve
56	W11693756 Whirlpool Screw Assembly
56	876764 Whirlpool Refrigerator Primary Valve
56	978030 Whirlpool Refrigerator Valve
56	WP978025 Whirlpool Refrigerator Valve
56	VALVE, ACCESS (1/2“)
56	Start Kit
56	VALVE, ACCESS (5/8“)
