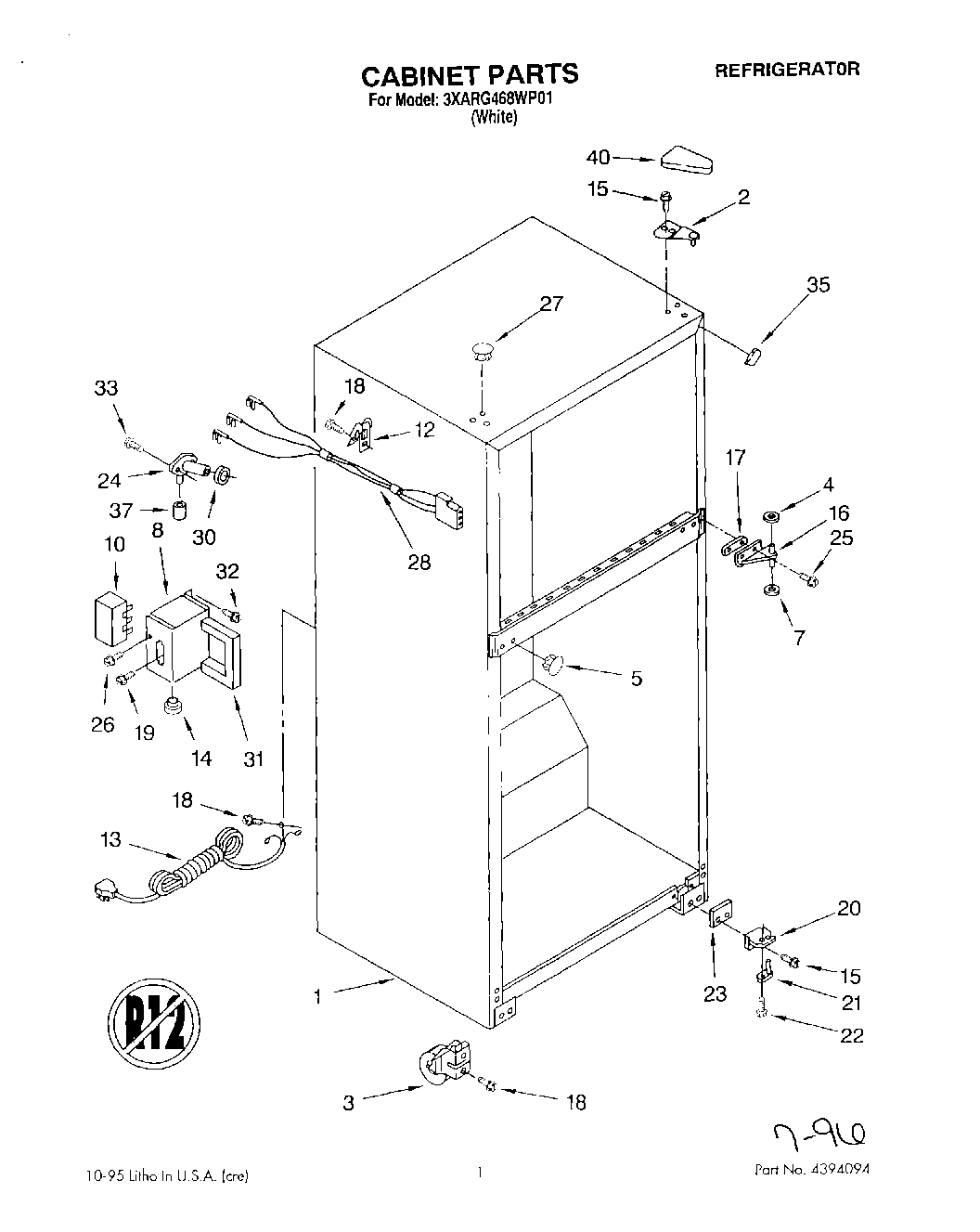

3XARG468WP01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	Roller-Front
4	WP487576 Whirlpool Washer
5	Hole Plug (4) (White)
7	WP487802 Whirlpool Refrigerator Washer
8	Enclosure, Term.
9	Screw
10	Terminal Block
12	489348 Whirlpool Refrigerator Tube Clamp
13	Service Cord
14	Bushing
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
18	WP489478 Whirlpool Refrigerator Screw
19	WPW10272364 Whirlpool Refrigerator Screw
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	Screw 10-32 x 5/16
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
25	WP999367 Whirlpool Refrigerator Screw
26	Screw
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Wire Assembly
30	WP1106508 Whirlpool Refrigerator Gasket
31	Gasket
32	WP250830 Whirlpool Refrigerator Screw
35	W10859322 Whirlpool Refrigerator Filler
37	WP487996 Whirlpool Refrigerator Cap Tube
40	WP2213360 Whirlpool Refrigerator Cover
