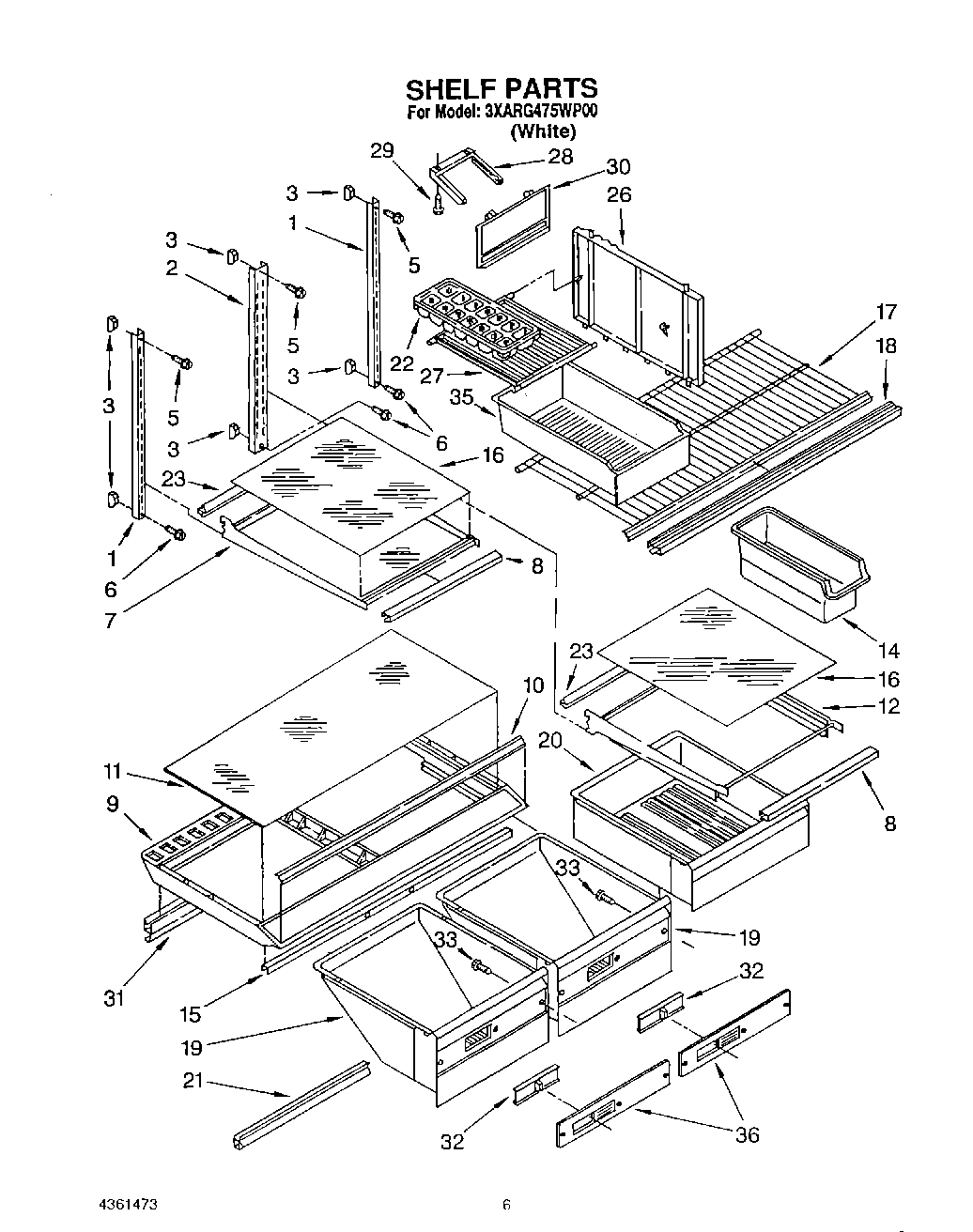

3XARG475WP00 04 – SHELF, LIT/OPTIONAL

Written by

Products

Position	Product
	WPL LIT2162205
	Torx Key
	WPL LIT4361473
	WPL LIT2156490
	WPL LIT2158681
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Trim, Shelf
9	Crisper Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
14	WP982704 Whirlpool Refrigerator Container
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Crisper, Gasket Front (2)
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Reflector, Shelf
26	Divider
27	Shelf, Ice Compartment (2)
28	Slide, Ice Compartment
29	WP489478 Whirlpool Refrigerator Screw
30	Door, Ice Compartment
31	Crisper, Gasket Rear (2)
32	Slide, Crisper
33	Screw (6)
35	PAN-ICE
36	72032 Whirlpool Touch Up Paint Black
36	285006 Whirlpool Spray
36	WP505587 Whirlpool Refrigerator Sealer
36	350930 Whirlpool White Spray Paint
36	Crisper, Pan Front
36	72017 Whirlpool Appliance Touch-Up Paint White
36	350956 Whirlpool Spray Assembly
36	WPL 876029
36	WP542638 Whirlpool Refrigerator Grease
36	CEMENT, ALUMILASTIC (1 1/4 OZ.)
36	350942 Whirlpool Spray Paint
36	799344 Whirlpool Refrigerator Paint
36	212643 Whirlpool Refrigerator Permagum Sealer
36	WPL 799833
36	Almond (Uncut)
36	511873 Whirlpool Refrigerator Paint
36	606755 Whirlpool Refrigerator Bag
36	833938 Whirlpool Refrigerator Terminal
36	876370 Whirlpool Refrigerator Insulation
36	WP503695 Whirlpool Refrigerator Sealer
36	Leveler (Thinner)
36	WP72107 Whirlpool Touchup
36	TAPE, VINYL (3/4 X 108“)
