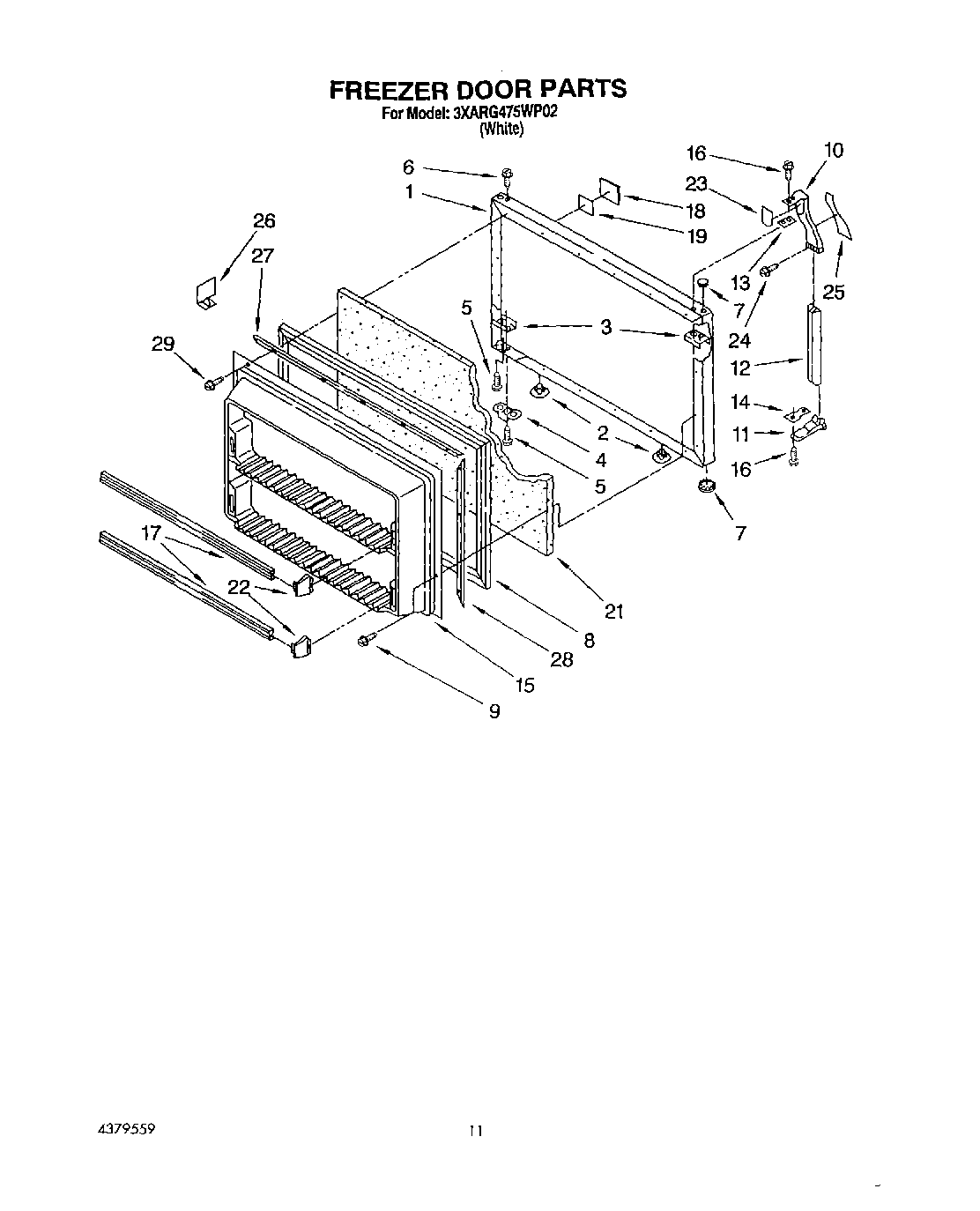

3XARG475WP02 07 – FREEZER DOOR

Products

Position	Product
1	Panel, Freezer Door (Also Order Item 21) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Handle End, Top
11	Handle End
12	Handle, Center (White)
13	Shim, Handle
14	Spa
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate
19	Tape Strip
21	WPL 876029
22	4386917 Whirlpool Endcap Kit
23	Shim, EndCap (Top)
24	Screw
25	Insert, Handle
26	Divider-Door
27	WPL 1115137
28	WPL 1115138
29	WP488729 Whirlpool Refrigerator Door Screw
