3XARG477GF00 01 – CABINET

3XARG477GF00 01 – CABINET

Written by

in

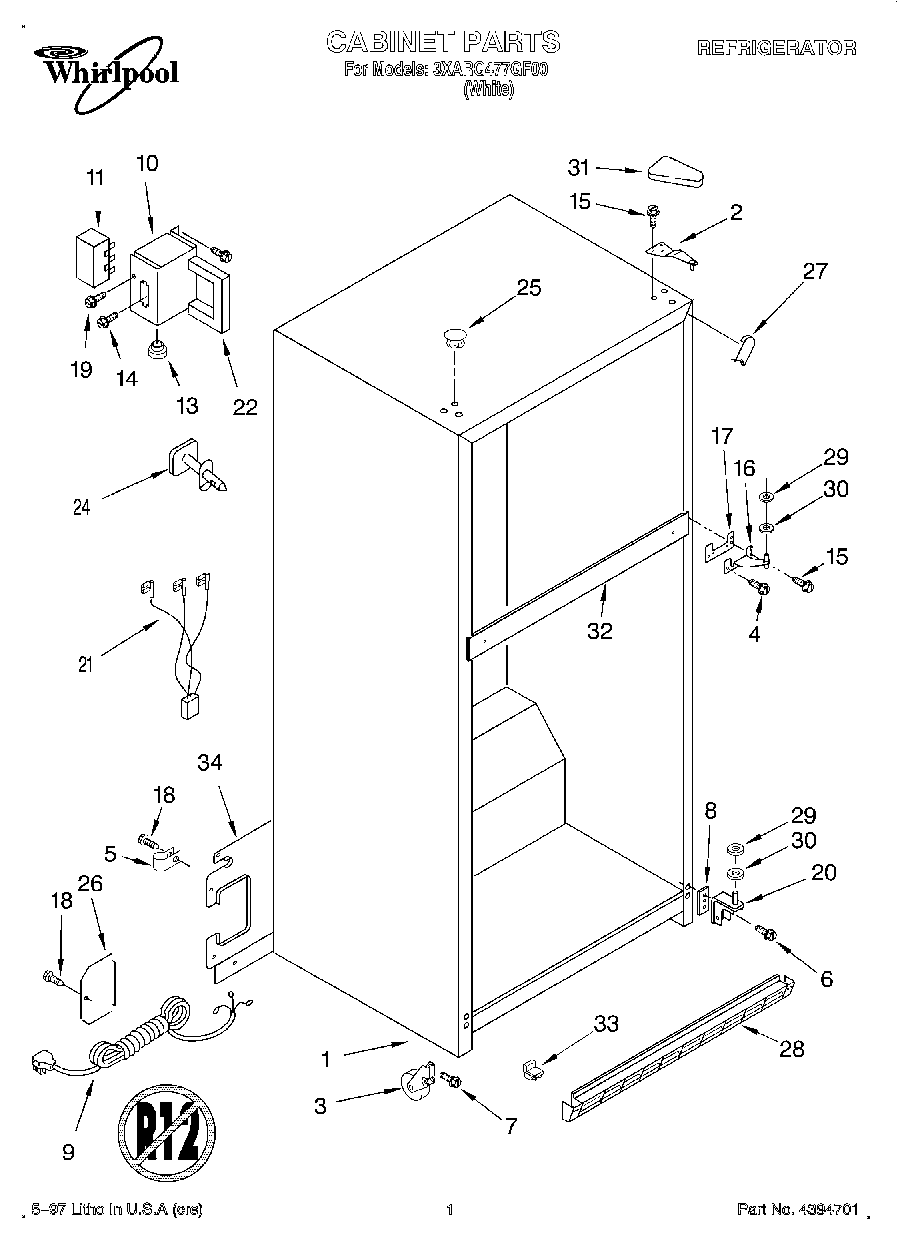

3XARG477GF00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP489497 Whirlpool Screw
7Screw
8Shim, Bottom Hinge
9Service Cord
10Enclosure, Term.
11Terminal Block
13Bushing
14WPW10272364 Whirlpool Refrigerator Screw
15WP999367 Whirlpool Refrigerator Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP489399 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21Wire Assembly, Terminal Box
22Gasket
24Fitting, Water Tube (Not Serviced)
25WP2151652 Whirlpool Refrigerator Button Plug
26Cover, Water Valve
27WPW10283959 Whirlpool Refrigerator Filler
28Grille (White)
29WP489467 Whirlpool Hinge Shim
30WP487576 Whirlpool Washer
31WP2213360 Whirlpool Refrigerator Cover
32Rail Center (Not Serviced)
33Corner Filler, Grille (White)
34WP2189475 Whirlpool Refrigerator Unit Cover
