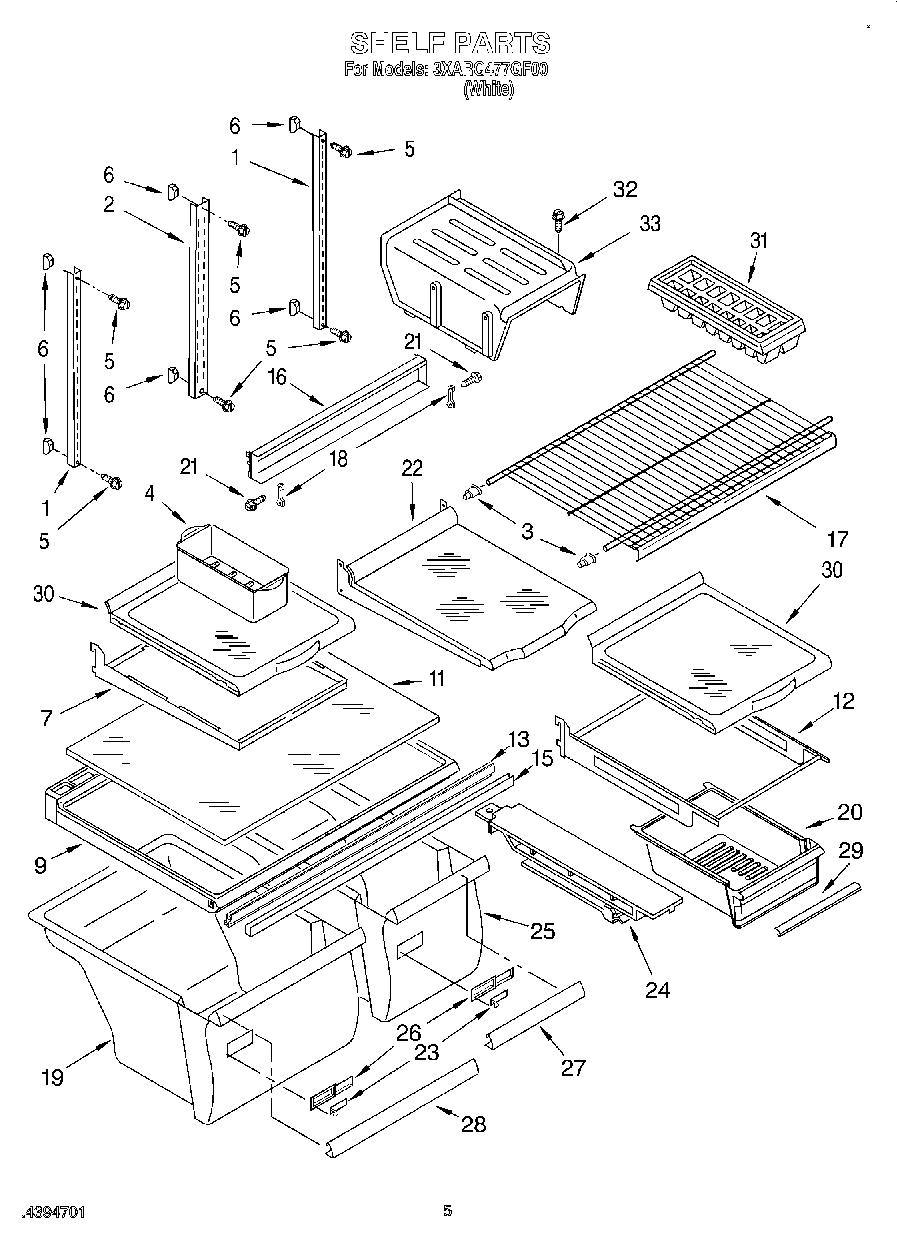

3XARG477GF00 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	520965 Whirlpool Refrigerator Support
7	Frame Assembly, Shelf (3)
9	WP2314548 Whirlpool Refrigerator Cover
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	Frame Assembly, Meat Shelf
13	Gasket, Crisper Cover
15	WP2172748 Whirlpool Drawer Support
16	Track Assembly, Shelf
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	Hook, Shelf
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	PAN-MEAT
21	Screw
22	Shelf Assembly, Spillguard
23	WP2176222 Whirlpool Refrigerator Slide
24	WP2163835 Whirlpool Track Assembly
25	W10856580 Whirlpool Crisper Pan
26	WP2212446 Whirlpool Refrigerator Control Body
27	Trim, Crisper Pan
28	WP2195341 Whirlpool Refrigerator Pan Trim
29	Trim, Meat Pan
30	Shelf Assembly, Spillguard
31	WP841180A Whirlpool Microwave Glass Turntable Tray
32	WP489478 Whirlpool Refrigerator Screw
33	Shelf
100	FeaturePak (Includes 15, 17, 22) Also See Ref.Dr. & Frz.Dr. Pgs.
