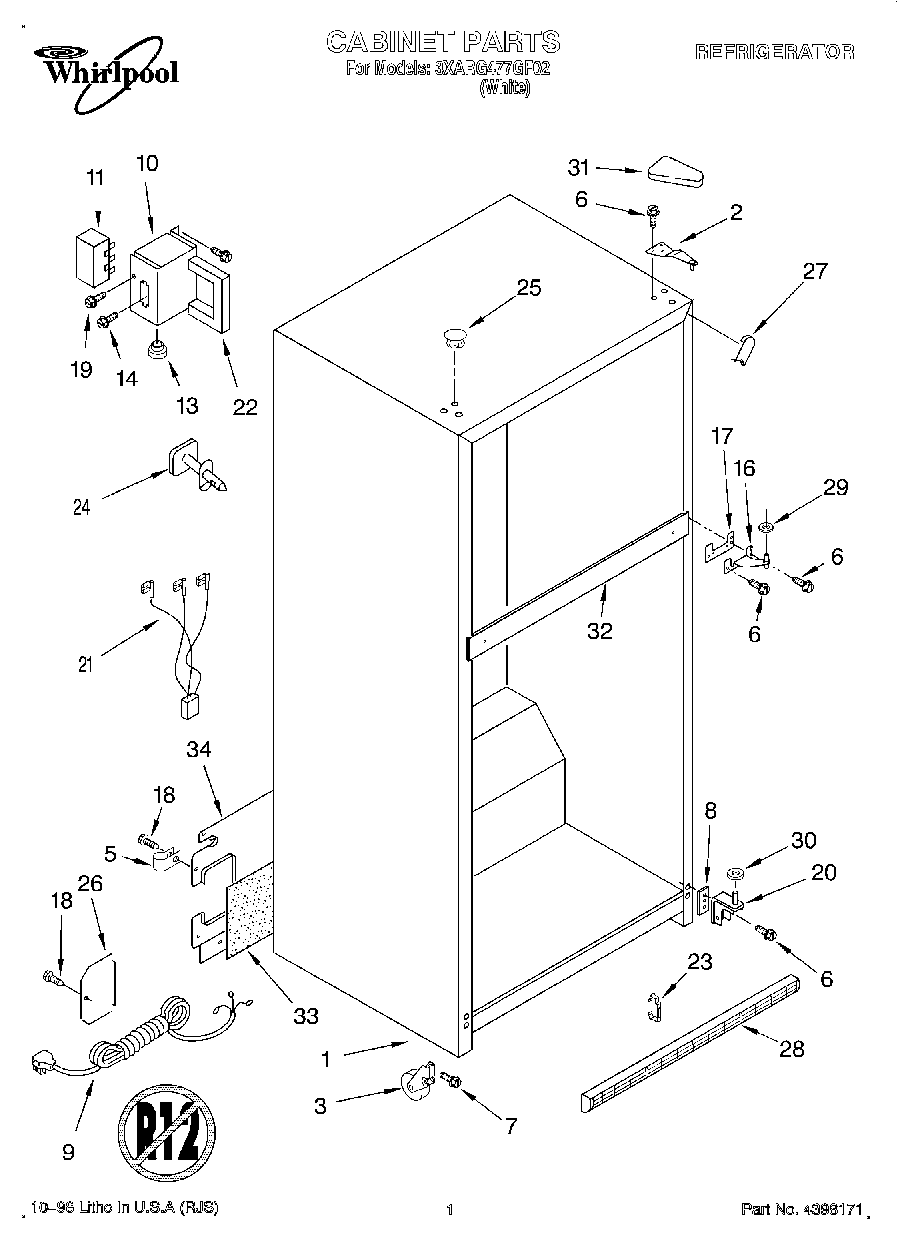

3XARG477GF02 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489497 Whirlpool Screw
7	Screw
8	Shim, Bottom Hinge
9	Service Cord
10	Enclosure, Terminal Block
11	Terminal Block
13	Bushing
14	WPW10272364 Whirlpool Refrigerator Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	WP489399 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	Wire Assembly
22	Gasket
23	CLIP, GRILLE
24	Fitting, Water Tube (Not Serviced)
25	WP2151652 Whirlpool Refrigerator Button Plug
26	Cover, Water Valve
27	WPW10283959 Whirlpool Refrigerator Filler
28	WP2254386 Whirlpool Refrigerator Grille
29	WP489467 Whirlpool Hinge Shim
30	WP487576 Whirlpool Washer
31	WP2213360 Whirlpool Refrigerator Cover
32	Rail Center (Not Serviced)
33	Insulation
34	WP2189475 Whirlpool Refrigerator Unit Cover
