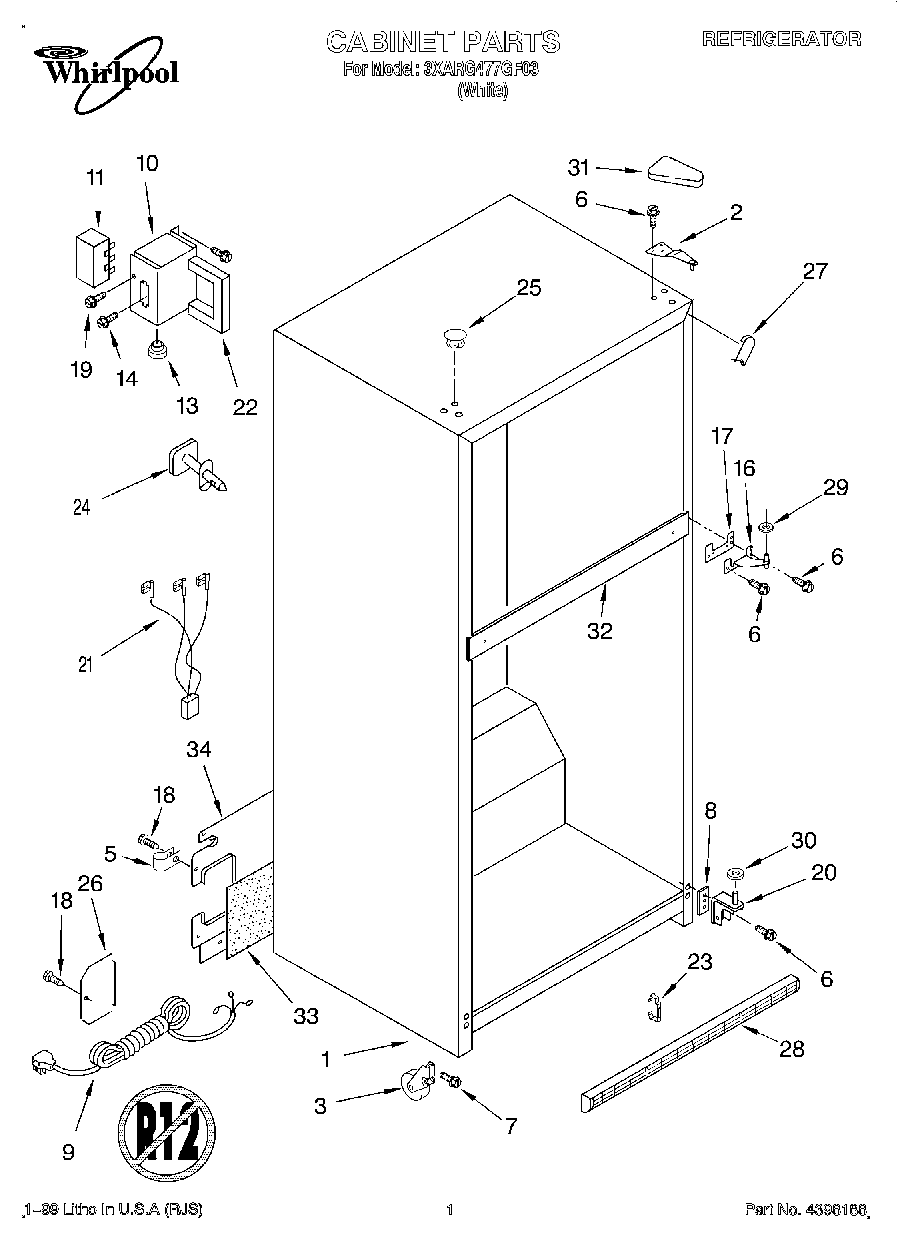

3XARG477GF03 01 – CABINETadmin2025-04-26T11:38:27+00:003XARG477GF03 01 – CABINET ProductsPositionProduct1Cabinet (Not A Serviceable Part)2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller5WP488366 Whirlpool Refrigerator Clamp6WP489497 Whirlpool Screw7Screw8Shim, Bottom Hinge9Service Cord10Enclosure, Terminal Block11Terminal Block13Bushing14WPW10272364 Whirlpool Refrigerator Screw16WP2254618 Whirlpool Center Door Hinge17WP2183854 Whirlpool Refrigerator Shim18WP489464 Whirlpool Refrigerator Screw19WP489399 Whirlpool Refrigerator Screw20WP2254473 Whirlpool Refrigerator Door Hinge21Wire Assembly22Gasket23CLIP, GRILLE24Fitting, Water Tube (Not Serviced)25WP2151652 Whirlpool Refrigerator Button Plug26Cover, Water Valve27WPW10283959 Whirlpool Refrigerator Filler28WP2254386 Whirlpool Refrigerator Grille29WP489467 Whirlpool Hinge Shim30WP487576 Whirlpool Washer31WP2213360 Whirlpool Refrigerator Cover32Rail Center (Not Serviced)33Insulation34WP2189475 Whirlpool Refrigerator Unit Cover
