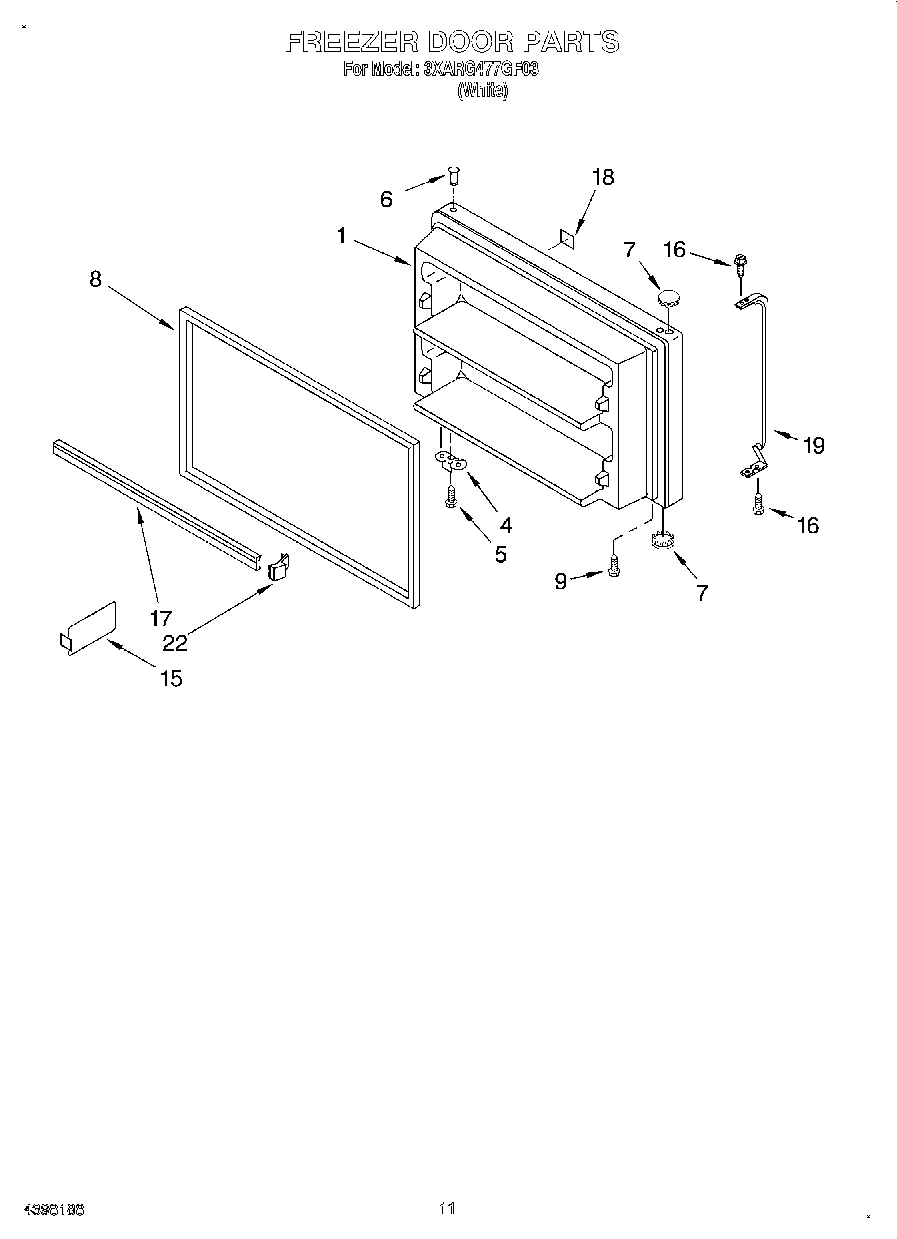

3XARG477GF03 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2187043
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT2200596
	WPL LIT677971
	WPL LIT2193091
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1	Freezer Door (Includes Illus. 2,6 & 8)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
9	WP8281206 Whirlpool Refrigerator Screw
15	Divider-Door
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
18	Nameplate
19	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
22	ENDCAP
100	Door Reversal Instructions
100	Almond (Uncut)
100	350956 Whirlpool Spray Assembly
100	72017 Whirlpool Appliance Touch-Up Paint White
100	799344 Whirlpool Refrigerator Paint
100	WP72107 Whirlpool Touchup
100	Featurepak (Includes 11, 13, 20, 21, 22, 23, 38, 39) Also See Frz.Dr. & Shelf Parts Pgs.
100	350930 Whirlpool White Spray Paint
100	72032 Whirlpool Touch Up Paint Black
100	285006 Whirlpool Spray
100	212643 Whirlpool Refrigerator Permagum Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	TAPE, VINYL (3/4 X 108“)
100	WP503695 Whirlpool Refrigerator Sealer
100	WPL 799832
100	WPL 799833
100	WPL 876029
100	876370 Whirlpool Refrigerator Insulation
100	833938 Whirlpool Refrigerator Terminal
100	606755 Whirlpool Refrigerator Bag
100	511873 Whirlpool Refrigerator Paint
100	350942 Whirlpool Spray Paint
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	WP542638 Whirlpool Refrigerator Grease
