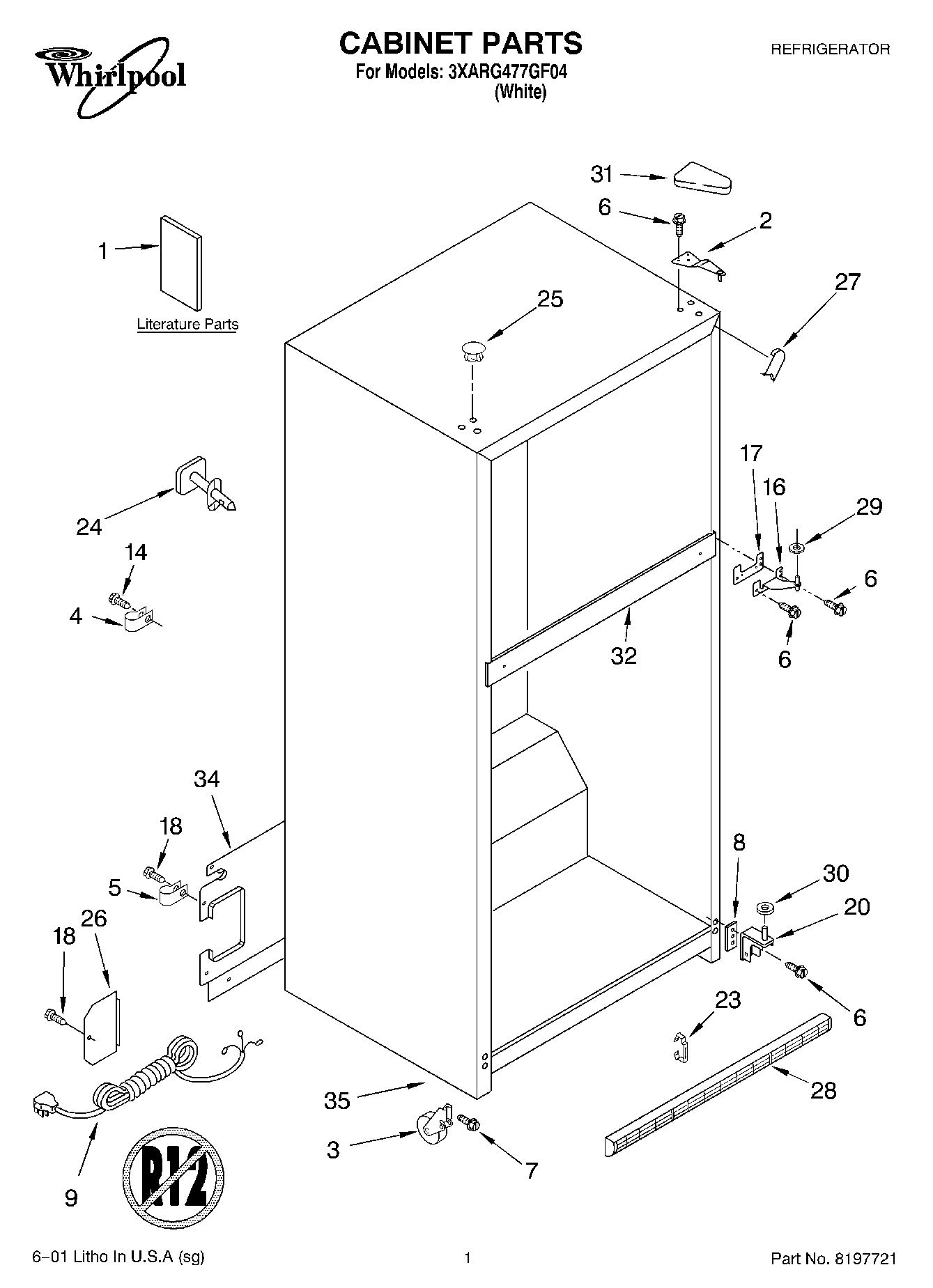

3XARG477GF04 01 – CABINET, LITERATURE
Written by
in
3XARG477GF04 01 – CABINET, LITERATURE
Products
Position
Product
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1
WPL LIT2200596
1
WPL LIT2187043
1
Literature Parts (Service & Wiring Sheet)
2
WP2261963 Whirlpool Refrigerator Door Hinge
3
WP2166108 Whirlpool Refrigerator Cabinet Roller
4
489348 Whirlpool Refrigerator Tube Clamp
5
WP488366 Whirlpool Refrigerator Clamp
6
WP489497 Whirlpool Screw
7
WP3400504 Whirlpool Refrigerator Screw
8
Shim, Bottom Hinge
9
Service Cord
14
WP489442 Whirlpool Refrigerator Screw
16
WP2254618 Whirlpool Center Door Hinge
17
WP2183854 Whirlpool Refrigerator Shim
18
WP489464 Whirlpool Refrigerator Screw
20
WP2254473 Whirlpool Refrigerator Door Hinge
23
CLIP, GRILLE
24
Fitting, Water Tube (Not Serviced)
25
WP2151652 Whirlpool Refrigerator Button Plug
26
Cover, Water Valve
27
WPW10283959 Whirlpool Refrigerator Filler
28
WP2254386 Whirlpool Refrigerator Grille
29
WP489467 Whirlpool Hinge Shim
30
WP487576 Whirlpool Washer
31
WP2213360 Whirlpool Refrigerator Cover
32
Rail Center (Not Serviced)
34
WP2189475 Whirlpool Refrigerator Unit Cover
←
