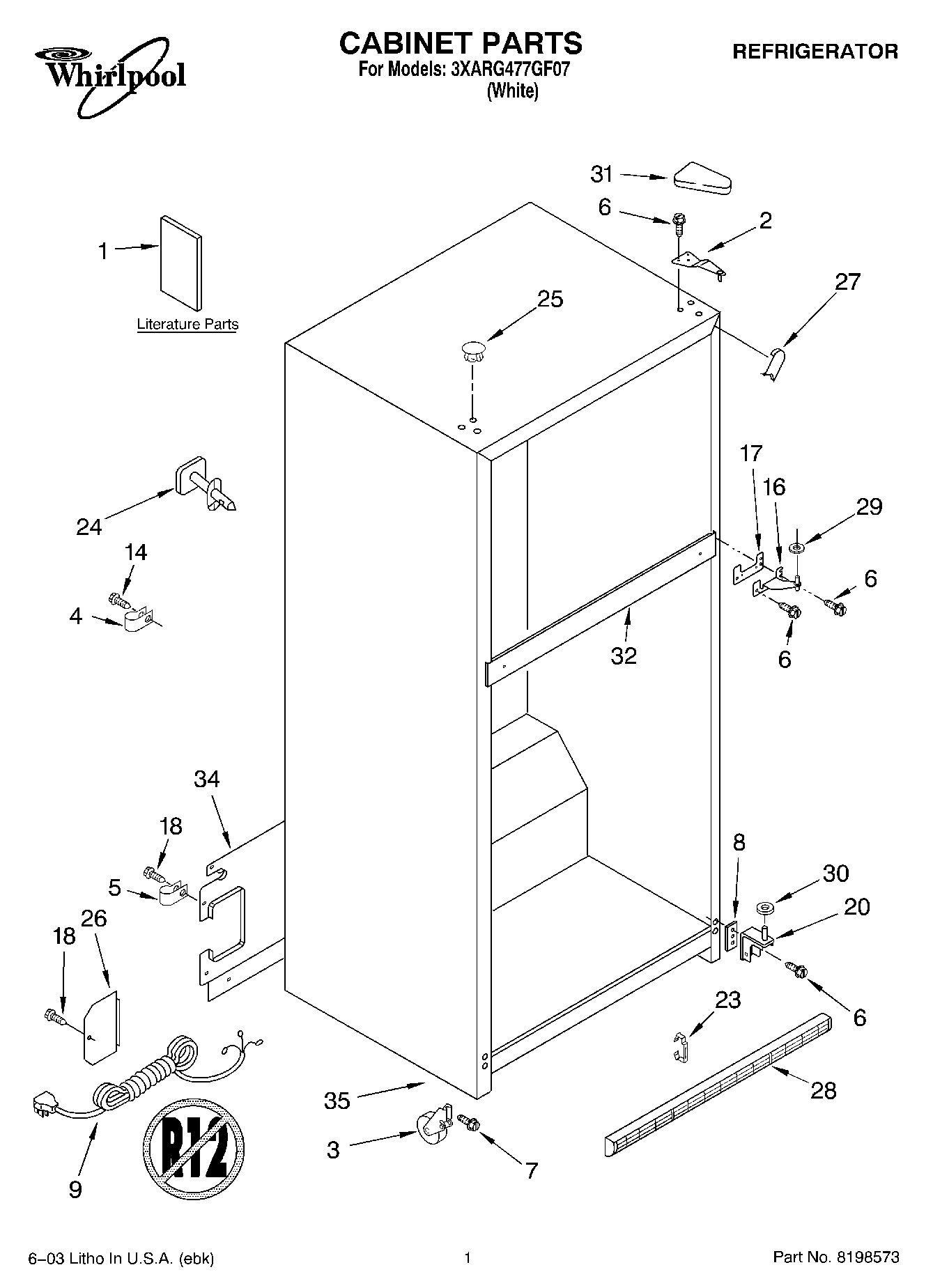

3XARG477GF07 01 – CABINET PARTS

3XARG477GF07 01 – CABINET PARTS

Written by

in

3XARG477GF07 01 – CABINET PARTS

Products

PositionProduct
LITERATURE PARTS
1Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1Literature Parts (Service & Wiring Sheet)
1WPL LIT2187043
1WPL LIT2200596
1Instruction Sheet, Feature Pack
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4489348 Whirlpool Refrigerator Tube Clamp
5WP488366 Whirlpool Refrigerator Clamp
6WP489497 Whirlpool Screw
7WP3400504 Whirlpool Refrigerator Screw
8Shim, Bottom Hinge
9Service Cord
14WP489442 Whirlpool Refrigerator Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
23CLIP, GRILLE
24Fitting, Water Tube (Not Serviced)
25WP2151652 Whirlpool Refrigerator Button Plug
26Cover, Water Valve
27WPW10283959 Whirlpool Refrigerator Filler
28WP2254386 Whirlpool Refrigerator Grille
29WP489467 Whirlpool Hinge Shim
30WP487576 Whirlpool Washer
31WP2213360 Whirlpool Refrigerator Cover
32Rail Center (Not Serviced)
34WP2189475 Whirlpool Refrigerator Unit Cover
35Cabinet (Not A Serviceable Part)
