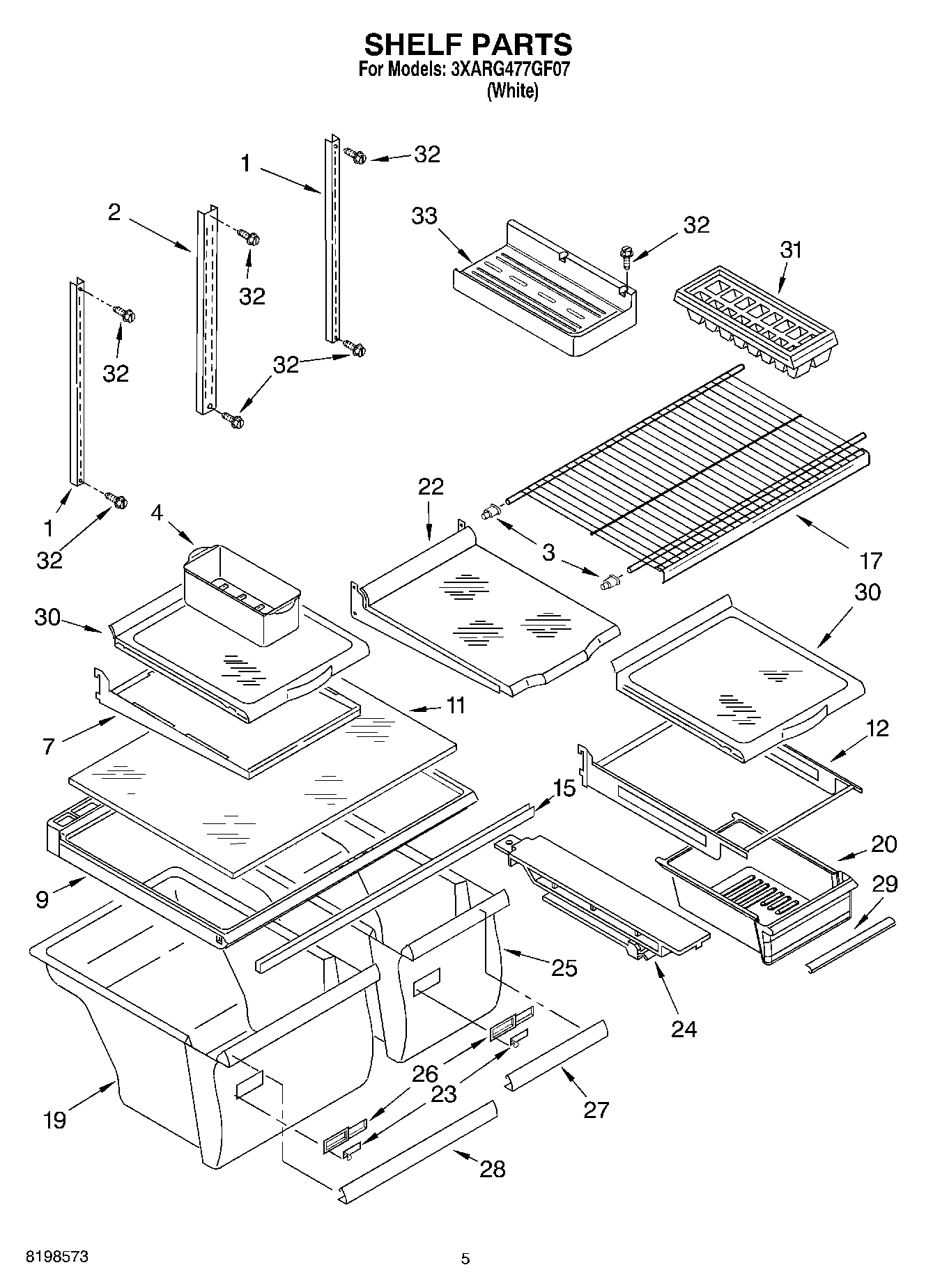

3XARG477GF07 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder
3	2163762 Whirlpool Refrigerator Cup Assembly
4	W10136387A Whirlpool Refrigerator Egg Container
7	Frame Assembly, Shelf (3)
9	WP2314548 Whirlpool Refrigerator Cover
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	Frame Assembly, Meat Shelf
15	WP2172748 Whirlpool Drawer Support
17	WP2176275 Whirlpool Refrigerator Wire Shelf
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	PAN-MEAT
22	Shelf, Assembly Spillguard (4)
23	WP2176222 Whirlpool Refrigerator Slide
24	WP2163835 Whirlpool Track Assembly
25	W10856580 Whirlpool Crisper Pan
26	WP2212446 Whirlpool Refrigerator Control Body
27	Trim, Crisper Pan
28	WP2195341 Whirlpool Refrigerator Pan Trim
29	Trim, Meat Pan
30	Shelf, Assembly Spillguard (4)
31	WP841180A Whirlpool Microwave Glass Turntable Tray
32	WP489478 Whirlpool Refrigerator Screw
33	Shelf, Ice Tray
