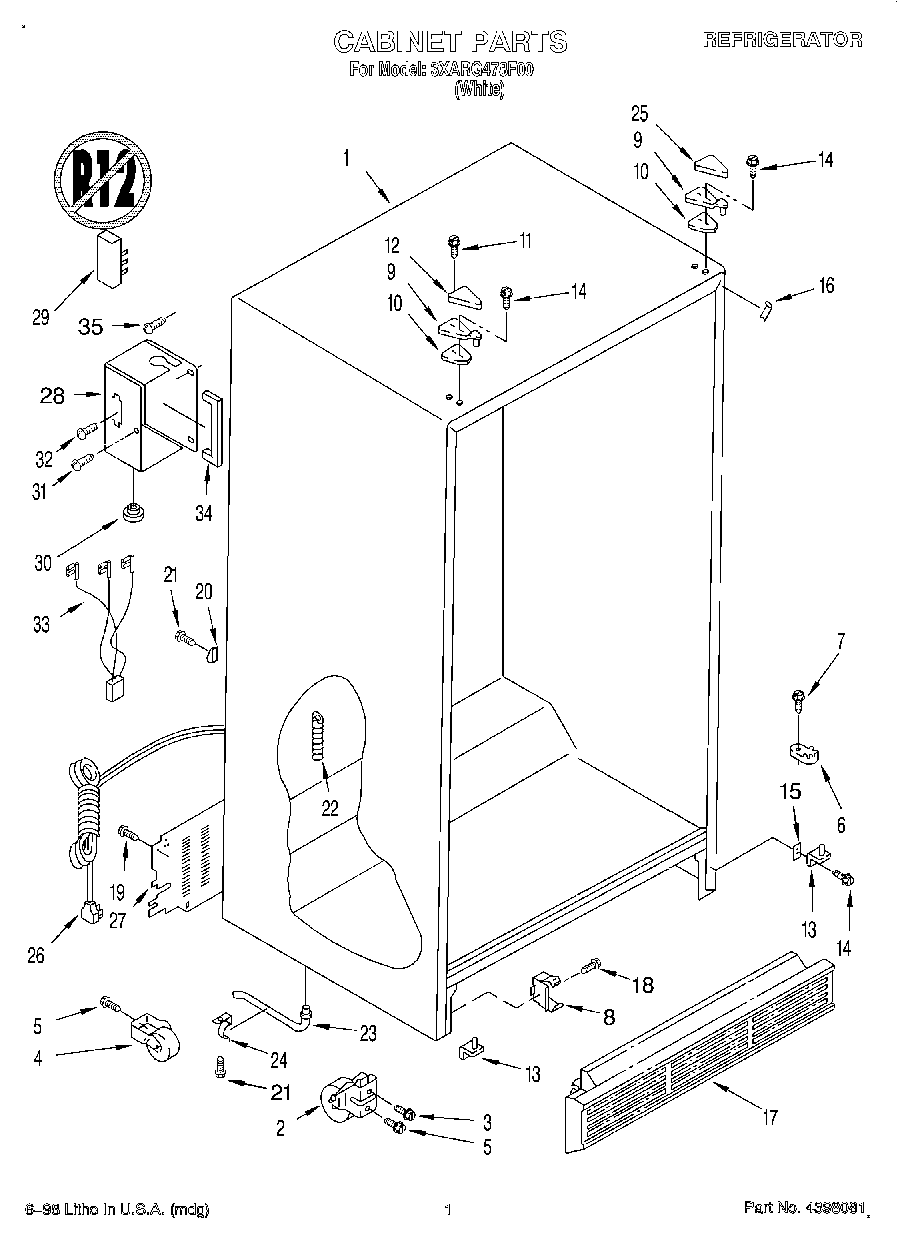

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Front Roller (2) |
| 3 | W10850698 Whirlpool Refrigerator Screw |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 5 | WP489427 Whirlpool Refrigerator Screw |
| 6 | WPW10329686 Whirlpool Door Cam Black |
| 7 | WP489483 Whirlpool Screw |
| 8 | WP2155013 Whirlpool Refrigerator Clip |
| 9 | WP2196046 Whirlpool Refrigerator Door Hinge |
| 10 | Shim, Hinge Top |
| 11 | Screw |
| 12 | WP1129262 Whirlpool Refrigerator Cover |
| 13 | 8201707 Whirlpool Door Hinge |
| 14 | WP489497 Whirlpool Screw |
| 15 | WP2181911 Whirlpool Refrigerator Shim |
| 16 | Filler, Wrapper (White) |
| 17 | Grille (White) |
| 18 | WP489478 Whirlpool Refrigerator Screw |
| 20 | 489348 Whirlpool Refrigerator Tube Clamp |
| 21 | WP489464 Whirlpool Refrigerator Screw |
| 22 | W11566763 Whirlpool Fitting |
| 23 | WP1108438 Whirlpool Refrigerator Extension |
| 24 | WP1108439 Whirlpool Refrigerator Clip |
| 25 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 26 | Service Cord |
| 27 | Cover, Unit |
| 28 | Enclosure, Terminal Block |
| 29 | Terminal Block |
| 30 | Bushing |
| 31 | WPW10272364 Whirlpool Refrigerator Screw |
| 32 | WP489399 Whirlpool Refrigerator Screw |
| 33 | Wiring Assembly, Terminal Block |
| 34 | Gasket |
| 35 | WP489463 Whirlpool Refrigerator Screw |
