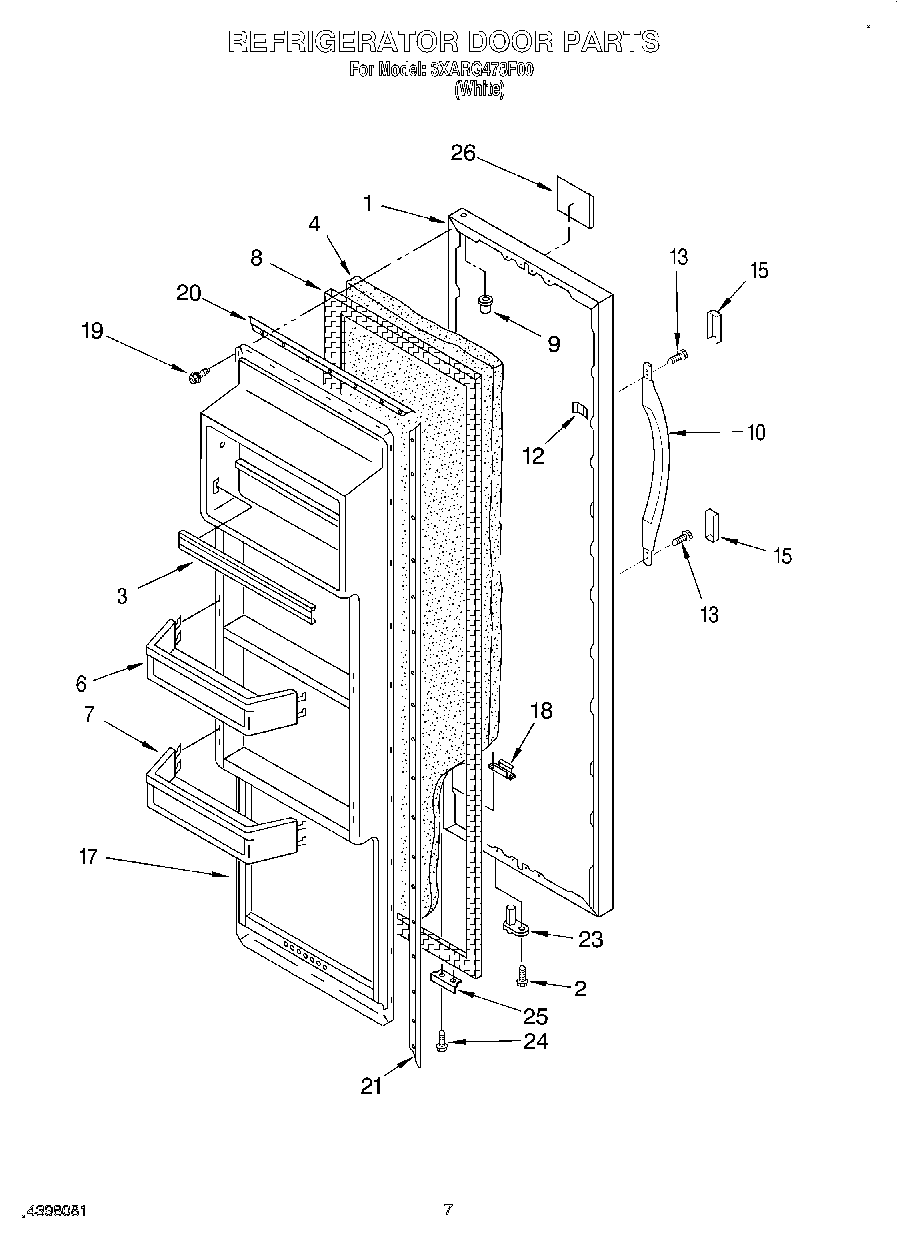

3XARG478F00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 20) (White)
2WP3400012 Whirlpool Refrigerator Screw
3Trim, Shelf
4WPL 876029
6Shelf, Door
7Shelf, Door
82188404A Whirlpool Refrigerator Door Gasket
9Cap, Hinge Sleeve (2)
10Handle, Center (White)
12Screw Anchor (2)
13WP489491 Whirlpool Refrigerator Screw
15WP2193353W Whirlpool Refrigerator Trim Handle
17Panel, Interior
18Tap, Plate
19WP489069 Whirlpool Compactor Screw
20Gasket Retainer, Top & Bottom
21Retainer, Gasket
23WP2182179 Whirlpool Cam Closer
24WP489483 Whirlpool Screw
25Bracket, Door Stop (Chrome)
26Nameplate
