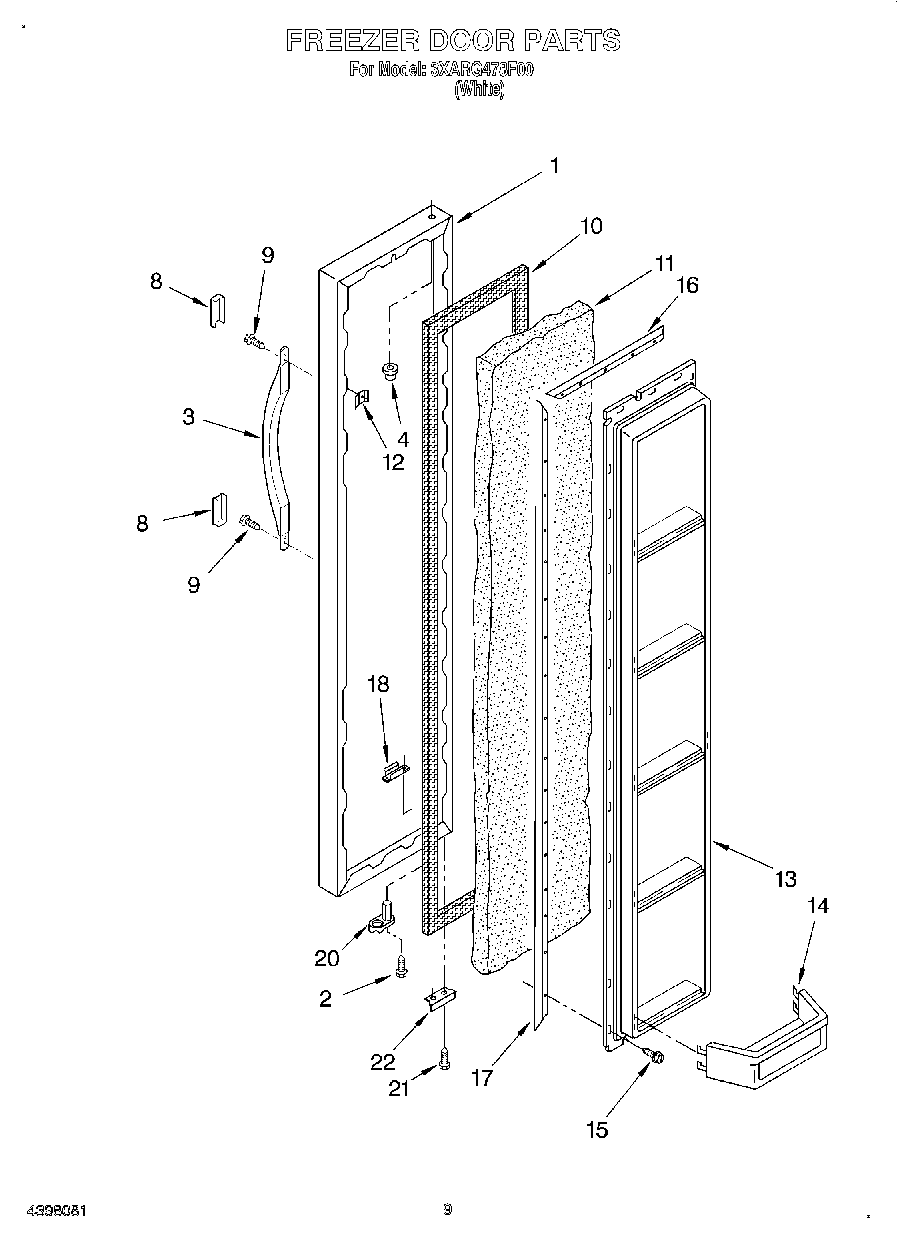

3XARG478F00 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Also Order Item 11)
2	WP3400012 Whirlpool Refrigerator Screw
3	Handle, Center (White)
4	Cap, Hinge Sleeve (2)
8	WP2193353W Whirlpool Refrigerator Trim Handle
9	WP489491 Whirlpool Refrigerator Screw
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Trim, Shelf (5)
15	WP489069 Whirlpool Compactor Screw
16	Retainer, Gasket
17	Retainer, Gasket
18	Tap, Plate
20	WP2182179 Whirlpool Cam Closer
21	WP489483 Whirlpool Screw
22	Bracket, Door Stop (Chrome)
