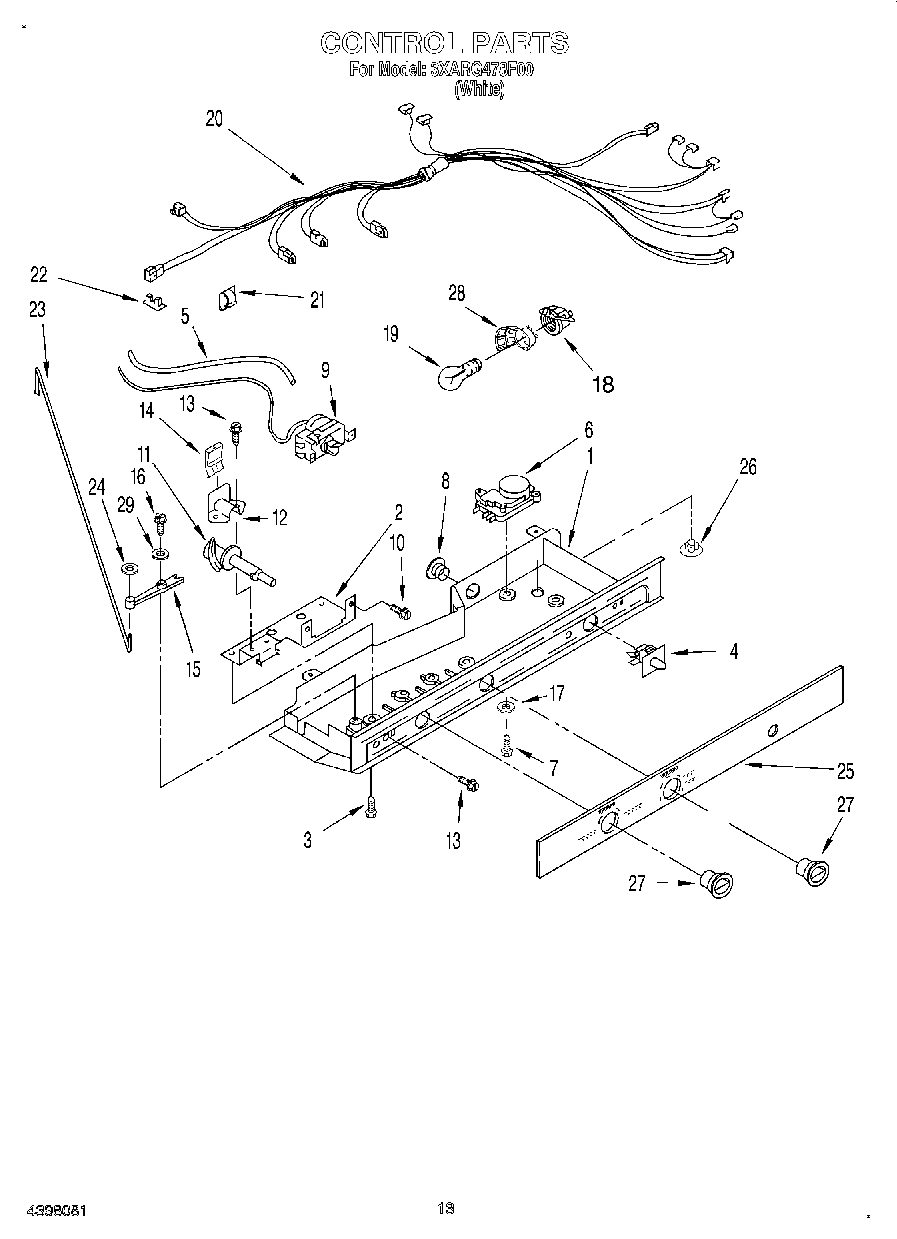

3XARG478F00 08 – CONTROL, LIT/OPTIONAL

3XARG478F00 08 – CONTROL, LIT/OPTIONAL

Written by

in

3XARG478F00 08 – CONTROL, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	LITERATURE PARTS (Energy Label)
	WPW10190943 Whirlpool Refrigerator Icemaker
	LITERATURE PARTS (Wiring Diagram)
	LITERATURE PARTS (Use & Care Guide)
1	Control Box
2	Mounting Bracket
3	Screw (2)
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	Defrost Timer (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	WP489478 Whirlpool Refrigerator Screw
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	Washer
18	4387478 Whirlpool Refrigerator Light Socket
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Hole Plug
27	Knob, Air Control
28	WP2175210 Whirlpool Refrigerator Shroud
29	350930 Whirlpool White Spray Paint
29	Golden Harvest
29	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29	350956 Whirlpool Spray Assembly
29	489203 Whirlpool Refrigerator Washer
29	72017 Whirlpool Appliance Touch-Up Paint White
29	799344 Whirlpool Refrigerator Paint
29	WP72107 Whirlpool Touchup
29	Almond (Uncut)
29	Golden Harvest (Uncut)
29	212643 Whirlpool Refrigerator Permagum Sealer
29	350942 Whirlpool Spray Paint
29	WPL 799833
29	WPL 876029
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	TAPE, VINYL (3/4 X 108“)
29	285006 Whirlpool Spray
29	72032 Whirlpool Touch Up Paint Black
29	WP542638 Whirlpool Refrigerator Grease
29	WP505587 Whirlpool Refrigerator Sealer
29	WP503695 Whirlpool Refrigerator Sealer
29	876370 Whirlpool Refrigerator Insulation
29	833938 Whirlpool Refrigerator Terminal
29	606755 Whirlpool Refrigerator Bag
29	511873 Whirlpool Refrigerator Paint
29	Enamel, Black (1 Qt. Uncut)
