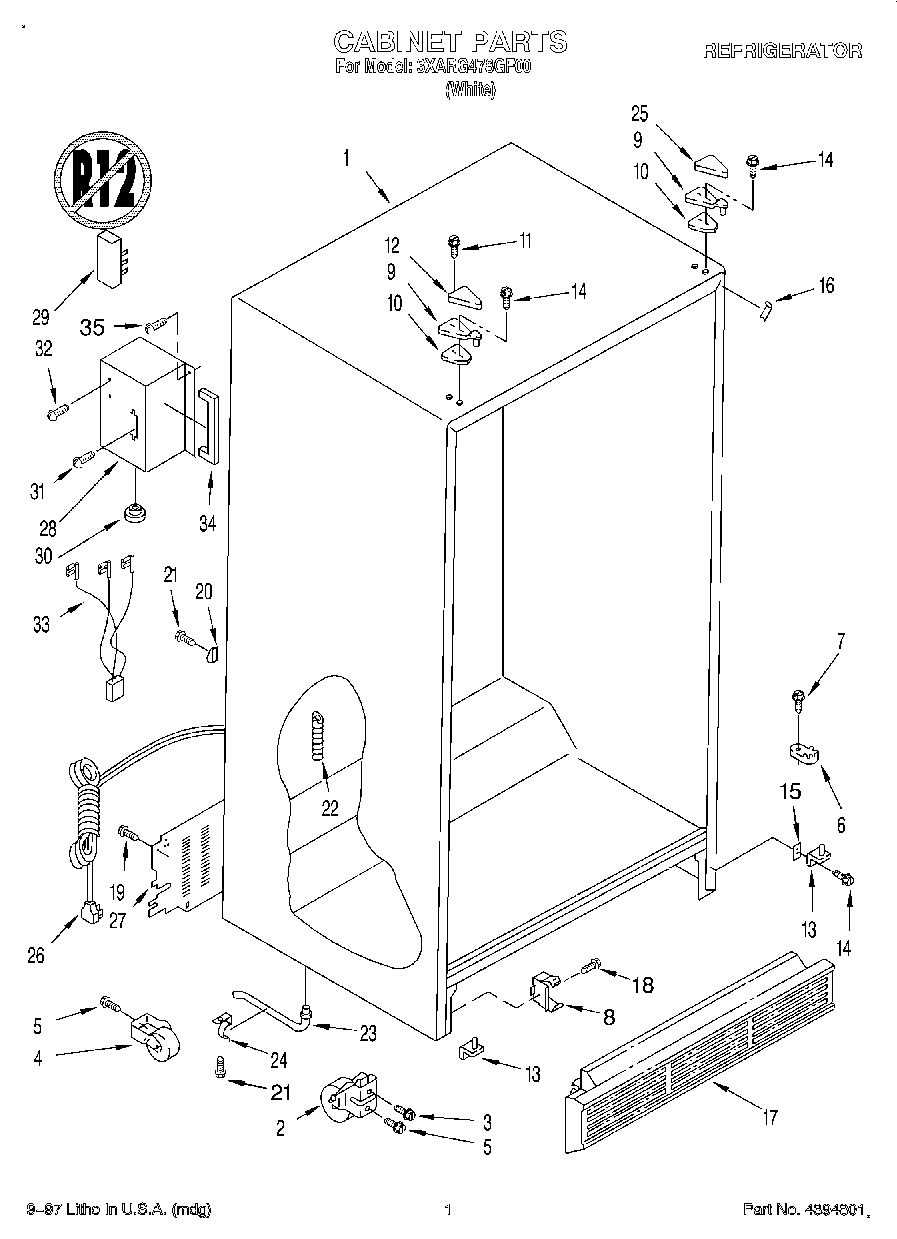

3XARG478GF00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	WP2196046 Whirlpool Refrigerator Door Hinge
10	Shim, Hinge Top
11	Screw
12	WP1129262 Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	WP489497 Whirlpool Screw
15	WP2181911 Whirlpool Refrigerator Shim
16	Filler, Wrapper (White)
17	Grille
18	WP489478 Whirlpool Refrigerator Screw
20	489348 Whirlpool Refrigerator Tube Clamp
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	WP1108438 Whirlpool Refrigerator Extension
24	WP1108439 Whirlpool Refrigerator Clip
25	1119787 Whirlpool Refrigerator Hinge Cover
26	Service Cord
27	Cover, Unit
28	Enclosure, Term.
29	Terminal Block
30	Bushing
31	WPW10272364 Whirlpool Refrigerator Screw
32	WP489399 Whirlpool Refrigerator Screw
33	Wiring Assembly, Terminal Block
34	Gasket
35	WP489463 Whirlpool Refrigerator Screw
